Obtain Video Signal
The camera can simultaneously have SDI, HDMI, IP / NDI video outputs.
HDMI Video signal
1. Connect the camera to a UHD Monitor/TV using HDMI cable.
2. Turn on the camera, video will display on the monitor after running initializing.
3. Information of the camera initial setting status will display for 5 seconds.
4. You can set the video format of the camera to the one you want to display.
SDI Video Signal
The camera can simultaneously stream SDI video output with HDMI video output.
1. Connect SDI cable in between the camera your SDI Device/display.
2. If you use Dual Link 3G-SDI device, please connect two 3G-SDI cable to the camera 2x 3G-SDI
connectors. And go to camera OSD menu to set the video format for Dual Link 3G-SDI use.
3. If you use single 6G-SDI device, please connect 6G-SDI cable to the camera 6G-SDI connector. The
other 6G-SDI is the looping signal from the first one, they are the same 6G-SDI signal. And go to
camera OSD menu to set the video format for single 6G-SDI use.
4. You now have SDI video output.
5. SDI video supports up to 2160P.
IP Video Signal
The camera can simultaneously stream IP, SDI and HDMI video outputs.
1. Connect the camera to the network using Cat5/Cat6 network cable.
2. You need to have a web browser or VMS client software ready for IP video streaming.
3. PELCO address and Baud Rate setting on the camera must be as same as the setting on camera IP
WEB interface.
4. To obtain IP video and configure IP video, please refer to Network Camera User Manual Part Two.

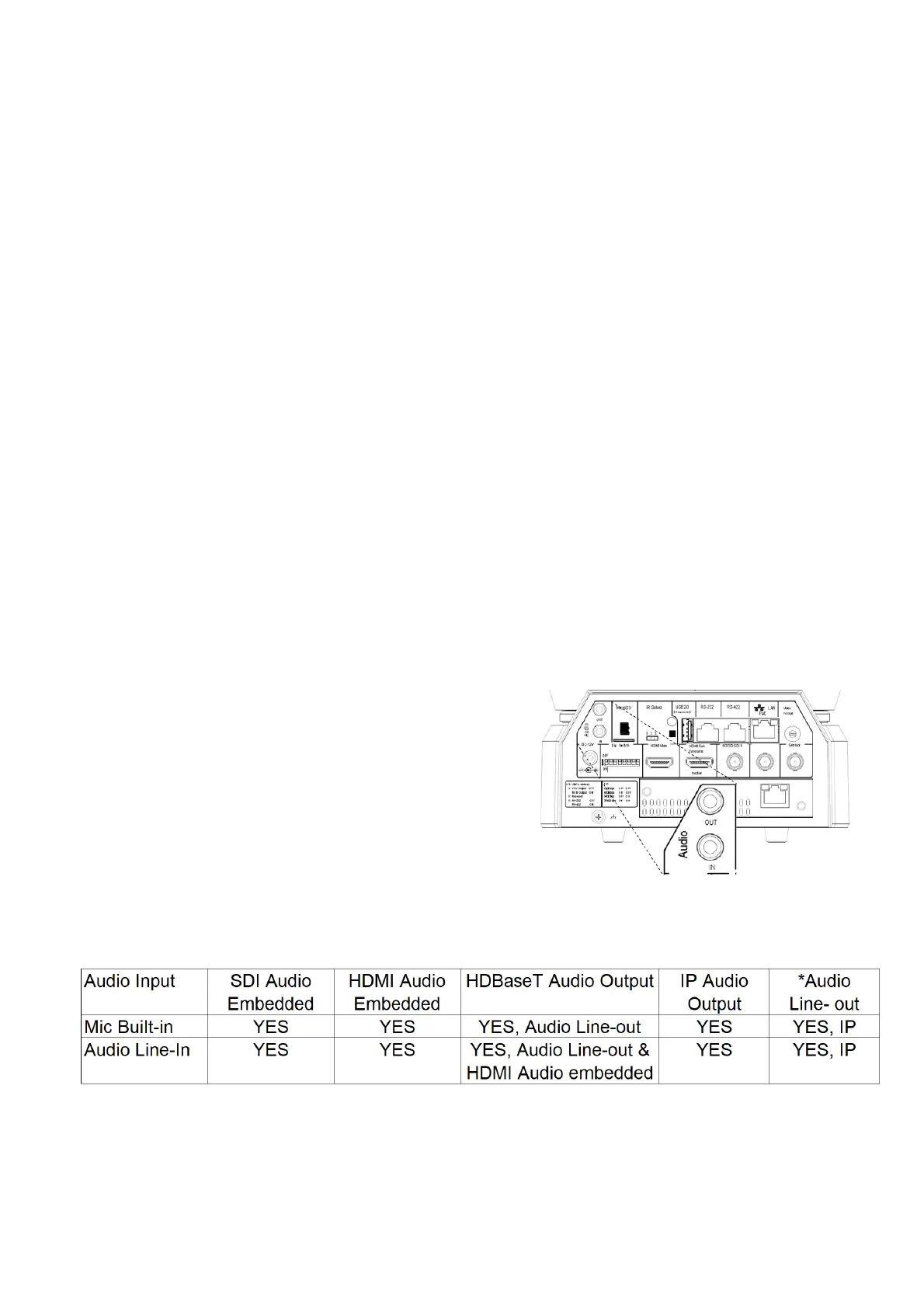

Audio IN / OUT
• The camera has two MICs built-in on front panel.
• On rear panel, a microphone or Audio source can be
connected to the Audio IN port, which feeds audio into
the camera
• A speaker can be connected to the Audio OUT port,
which will output any audio that is captured on the
Audio IN port
• See Manual part 2 for more information about IP Audio
capture
• Audio is embedded with Camera HDMI, SDI and IP video signal.
Table: Audio input & output relationship
