Product Assembly - RFT PRO - STEP 9 “Torque Time”
19
Please Hand Tighten All Bolts Until STEP 7
9/16 SOCKET &
6” EXTENSION
Recommended Tools
9/16 WRENCH
20 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
9/16 SOCKET &
6” EXTENSION
Recommended Tools
9/16 WRENCH
NOTE: Fully tighten Bolt (49) to Nut
(67) until the gap between welded tabs
and the metal bushing is closed. Then
loosen Nut (67) up to ¼ turn until the
pulley swivels freely but as most no
play. Loosen or tighten as needed for
both right & left sides.
Double check if the Rotating Pulley
Holder (17) FREELY swivels.

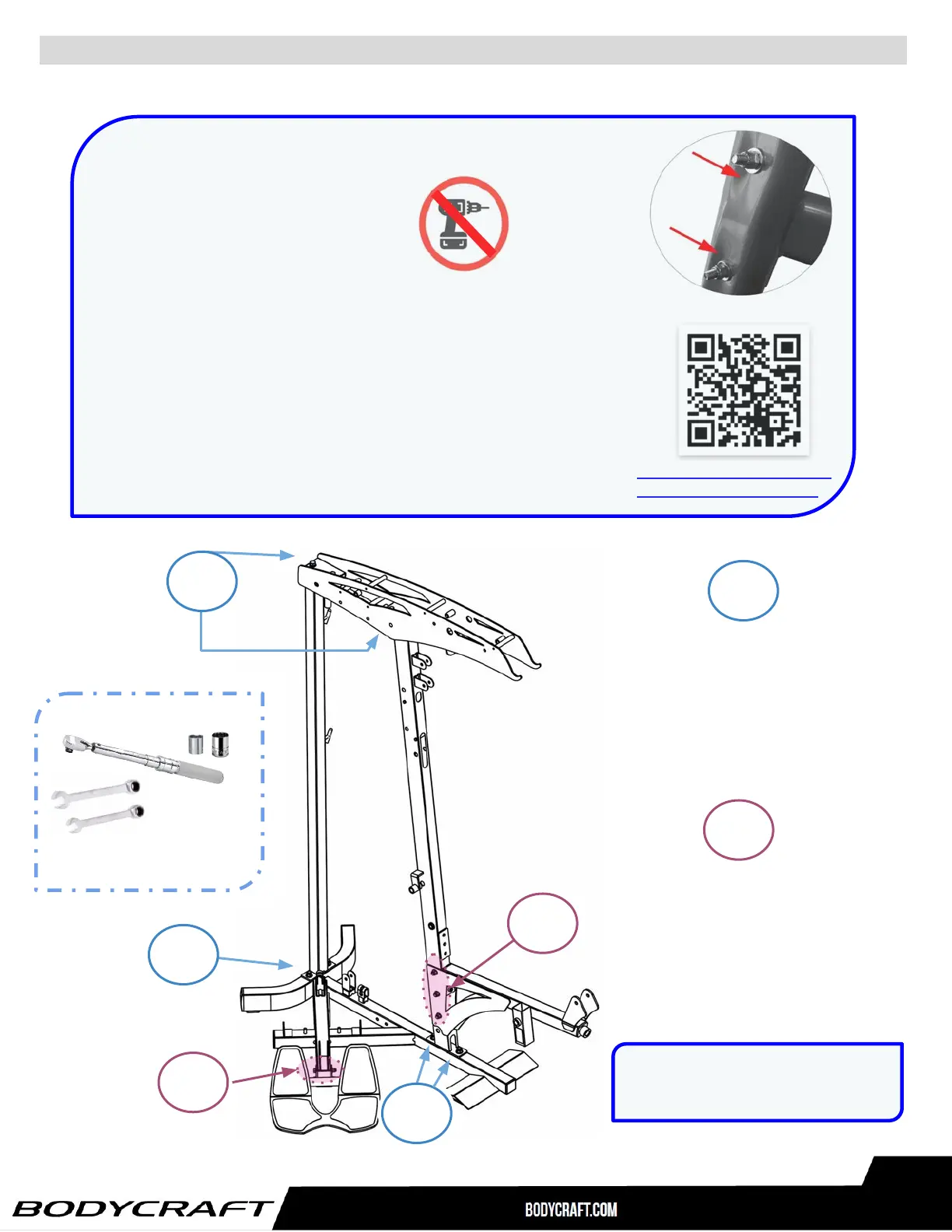

STEP 2a: “Torque Time” on Main Frame Nuts & Bolts from STEP 1a - 1d
Tighten all 1/2” Nuts & Bolts
s to the recommended torque
specs of 20 ft-lbs (+/- 2 lbs).
NOTE: Start at the bottom then
work your way up to the top.
TORQUE WRENCH
w/ 9/16 & 3/4 SOCKETS &
WRENCHES
STEP LADDER or
STEP PLATFORM
Recommended Tools
17 ft-lbs
(+/- 2 lbs)
Product Assembly, GT, STEP 2a - “Torque Time”
Example of being
overtightened
not using the
recommended
torque specs.
https://www.wikihow.com/Us
e-a-Torque-Wrench#Video
Tighten to torque specs to ensure the bolts and nuts do the following:
● Securely hold the frame and keep moving parts from
coming loose during operation.
● Keep from crushing the frame.
● Avoid stripping the threads on either the bolts or nuts.
● Allow moving parts to adjust freely per the designed intent.
NOTE: These recommended torque
specs should be followed for correct
assembly and safe operation of this
machine.
Recommended Tools:
TORQUE WRENCH w/ 9/16 & 3/4
SOCKETS, 9/16 & 3/4 WRENCHES
Tighten all 3/8” Nuts & Bolts
to the recommended torque
specs of 17 ft-lbs (+/- 2 lbs).
17 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
17 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
20 ft-lbs
(+/- 2 lbs)
Recommended Tools:
TORQUE WRENCH w/ 9/16 SOCKET
& 9/16 WRENCH
Recommended Tools:
TORQUE WRENCH w/ 9/16 & 3/4
SOCKETS, 9/16 & 3/4 WRENCHES
Socket Wrench w/
13mm Socket
Allen Wrench 5mm
Phillips Screwdriver #2
Recommended Tools:
Fully tighten at this time to the
Recommended Torque Specs
Example of being
overtightened
not using the
recommended
torque specs.
https://www.wikihow.com/Us
e-a-Torque-Wrench#Video
Tighten to torque specs to ensure the bolts and nuts do the following:
● Securely hold the frame and keep moving parts from
coming loose during operation.
● Keep from crushing the frame.
● Avoid stripping the threads on either the bolts or nuts.
● Allow moving parts to adjust freely per the designed intent.
NOTE: These recommended torque
specs should be followed for correct
assembly and safe operation of this
machine.
