Product Assembly, GT, STEP 1a - 1b

17

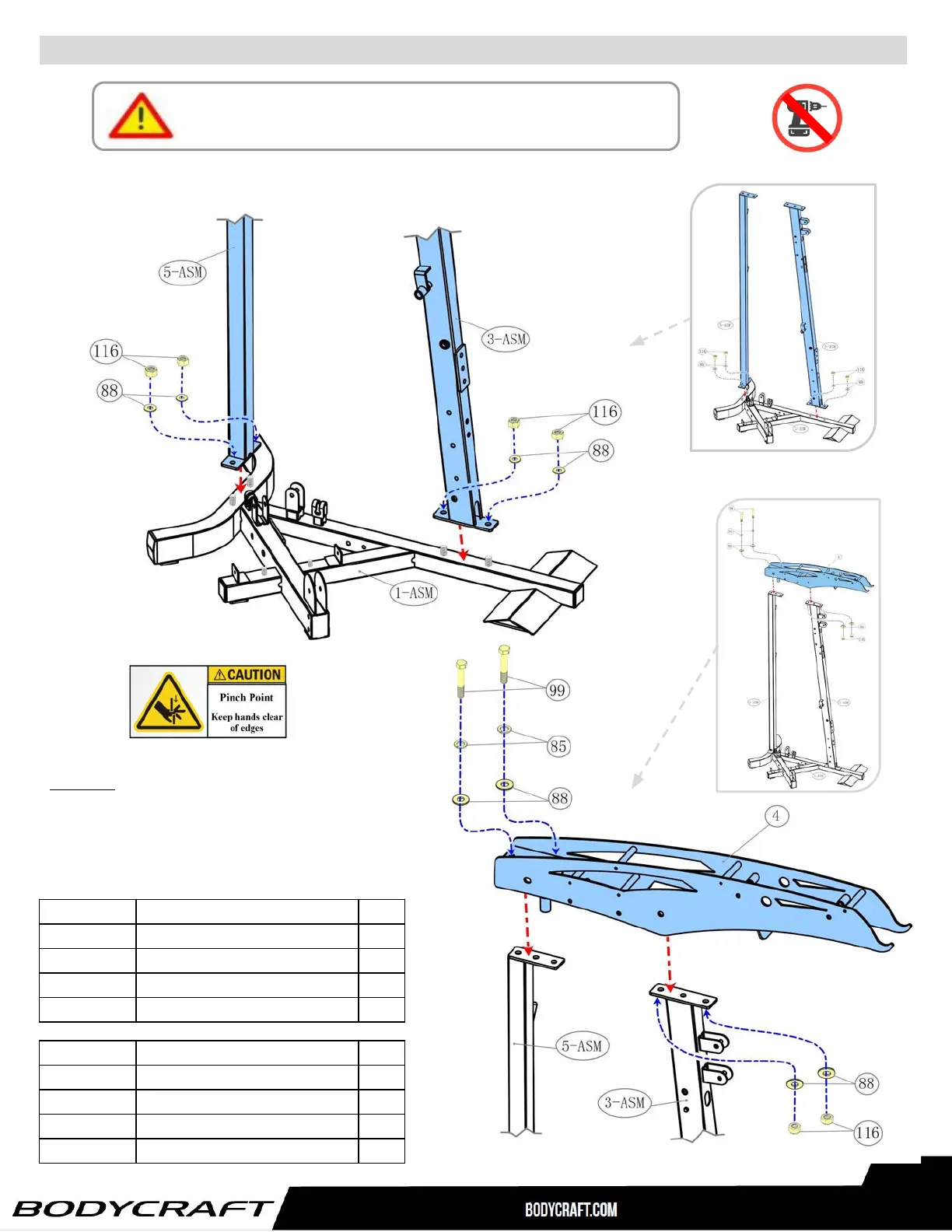

STEP 1a - 1b: Install Uprights to Bottom & Top Frames

Please Hand Tighten All Nuts & Bolts Until STEP 2a

NEED with color

Part # Assembly Parts List QTY

GT-X-001-ASM Frame, Bottom - Assembly w/ Serial # 1

GT-X-003-ASM Frame, Front, Upright - Assembly 1

GT-X-004 Frame, Top 1

GT-X-005-ASM Frame, Rear, Upright - Assembly 1

Part # Assembly Hardware QTY

GT-X-085 Washer, Spring, 1/2" - BLK 2

GT-X-088 Washer, Flat, 1/2" - BLK 8

GT-X-099 Bolt, Hex Head, 1/2" x 3" L - BLK 2

GT-X-116 Nut, Nylon Lock, 1/2" - BLK 6

Please Lightly Tighten All Nuts & Bolts Until STEP 2j

View Keys

Red dotted (large): Structural parts assembled direction.

Red dotted (med): Sub-parts assembled direction.

Blue dotted lines (small): Hardware assembled direction.

Orange (med): Cables are normally black, but easier to

see in color.

9/16 SOCKET &

6” EXTENSION

Recommended Tools

9/16 WRENCH
