Product Assembly, GT-LP (Leg Press), STEP 5 “Torque Time”
27
STEP 2c: Install Foot Plate to Bottom Frame
Part # Assembly Parts List QTY
GT-X-001-ASM Frame, Bottom - Assembly w/ Serial # 1
GT-X-003-ASM Frame, Front, Upright - Assembly 1
GT-X-004 Frame, Top 1
GT-X-005-ASM Frame, Rear, Upright - Assembly 1
Part # Assembly Hardware QTY
GT-X-085 Washer, Spring, 1/2" - BLK 2
GT-X-088 Washer, Flat, 1/2" - BLK 8
GT-X-099 Bolt, Hex Head, 1/2" x 3" - BLK 2
GT-X-116 Nut, Nylon Lock, 1/2" - BLK 6

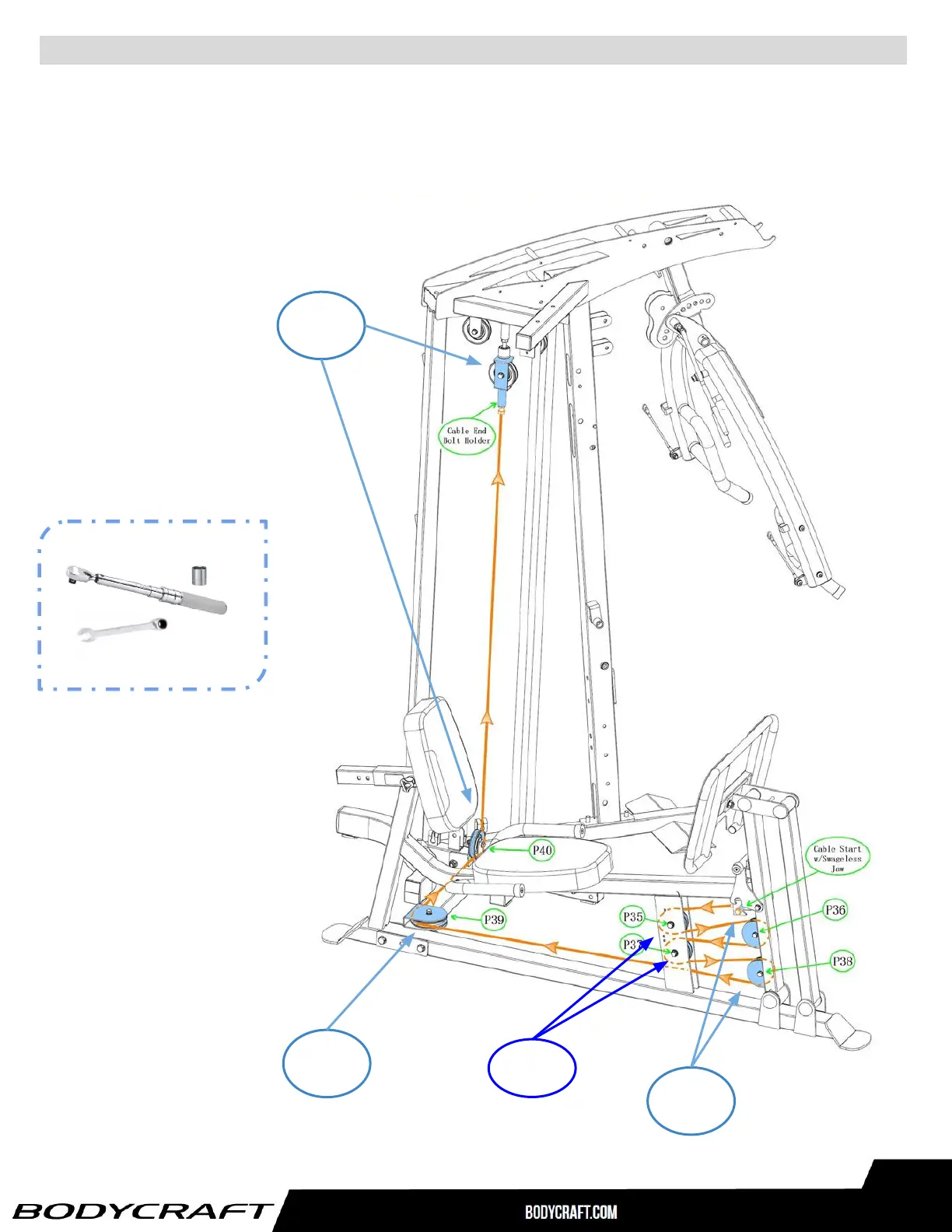

STEP 5: “Torque Time”
● Tighten the 3/8” Bolts & Nuts from STEP 4a - STEP 4i to
the recommended torque specs of 17 ft-lbs (+/- 2 lbs)
● The 3/8” Bolts with Plastic Bushings to the torque specs
of 8 ft-lbs (+/- 1 lbs)
17 ft-lbs
(+/- 2 lbs)
17 ft-lbs
(+/- 2 lbs)
TORQUE WRENCH
w/ 9/16 SOCKET
& 9/16 WRENCH
Recommended Tools:
17 ft-lbs
(+/- 2 lbs)
Recommended Tools:
TORQUE WRENCH w/ 9/16 SOCKET
& 9/16 WRENCH
8 ft-lbs
(+/-1 lbs)
