Product Assembly. GT-LP (Leg Press), DECISION POINT & STEP 4h

DECISION POINT

If you are simultaneously assembling the:

- GT Strength Training System

AND

- GT-LP Leg Press Option

Go to STEP 4i

If you currently have a GT Strength

Training System and are now adding the

GT-LP Leg Press Option:

Go to STEP 4h below

Part # Assembly Parts List QTY

GT-X-019 Pulley Block, Single Closed Flat End, w/ Cable End Threaded Shaft 1

GT-X-040-ASM Threaded Rod, between Top Connector Frame & Single Block Pulley (Not used w/ Leg Press) - Assembly 1

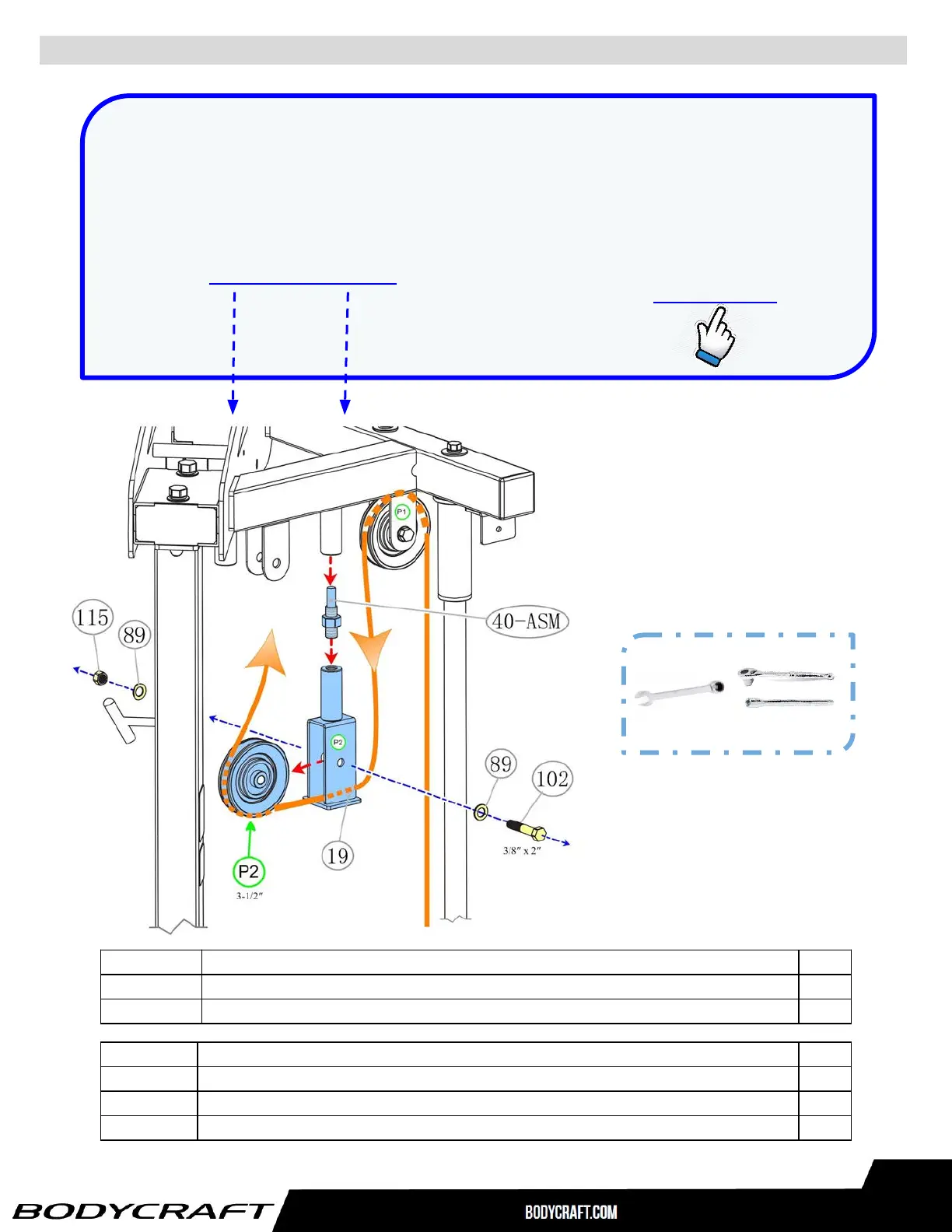

STEP 4h: Take off Threaded Rod

#40-ASM and flip Pulley Block #19

Part # Assembly Hardware QTY

GT-X-089 Washer, Flat, 3/8" - BLK 2

GT-X-102 Bolt, Hex Head, 3/8" x 2" L - BLK 1

GT-X-115 Nut, Nylon Lock, 3/8" - BLK 1

25

9/16 SOCKET &

6” EXTENSION

Recommended Tools

9/16 WRENCH
