SM11EARC-8K USER MANUAL
04 www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk

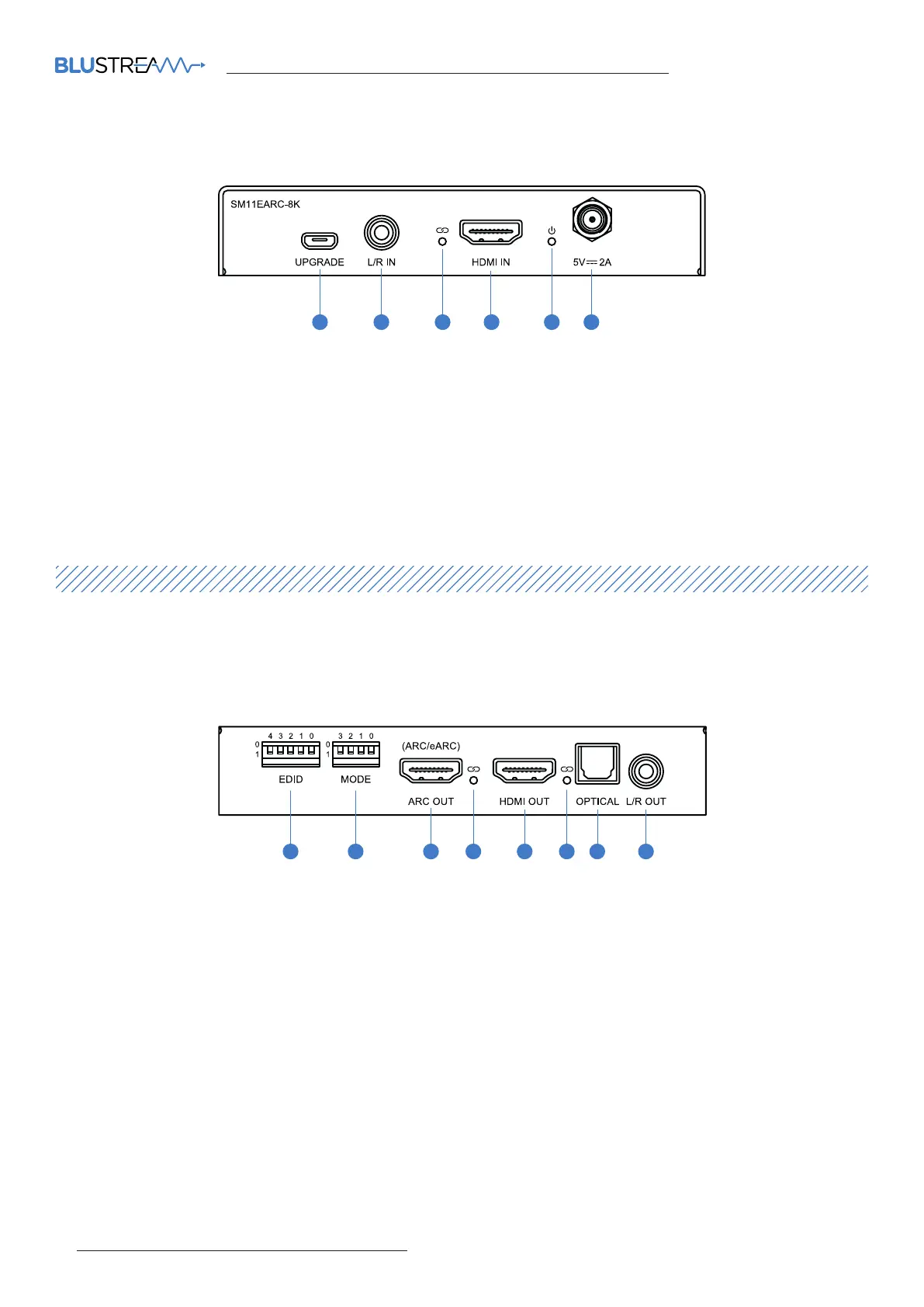

Front Panel
Rear Panel
1 2 3 4 5 6
1 USB Upgrade Port
2 L/R Analogue Audio Input - 3.5mm stereo jack
3 HDMI Input Indicator LED - Lit when connected to a source
4 HDMI Input - Connect to a HDMI source
5 Power Indicator LED - Lit when unit is powered on
6 Power Port - Use supplied 5V 2A DC adaptor
1 2 3 4 5 6 7 8
1 EDID DIP Switch (UP=0, DOWN=1) - See page 5 for further details
2 Mode DIP Switch - See page 5 for further details
3 ARC/eARC HDMI ARC OUT - Connect to ARC/eARCport of an AVR or Soundbar for ARC/eARC audio transmission only
(this connection does not output a video signal)
4 ARC/eARC Link Status LED - Lit when connected to an ARC/eARC HDMI display
5 HDMI Output - Connect to a HDMI display (unless using as an audio breakout only product)
6 HDMI Link Status LED - Lit when connected to a HDMI display
7 Optical S/PDIF - Connect to AVR or processor for optical audio return breakout
8 Le / Right Analogue Audio Output - De-embedded audio from the HDMI signal input. Note: source input must
be PCM 2ch audio for analogue audio output to work. The SM11EARC-8K does not down-mix multi-channel audio
signals.
