MX44KVM USER MANUAL

www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk04

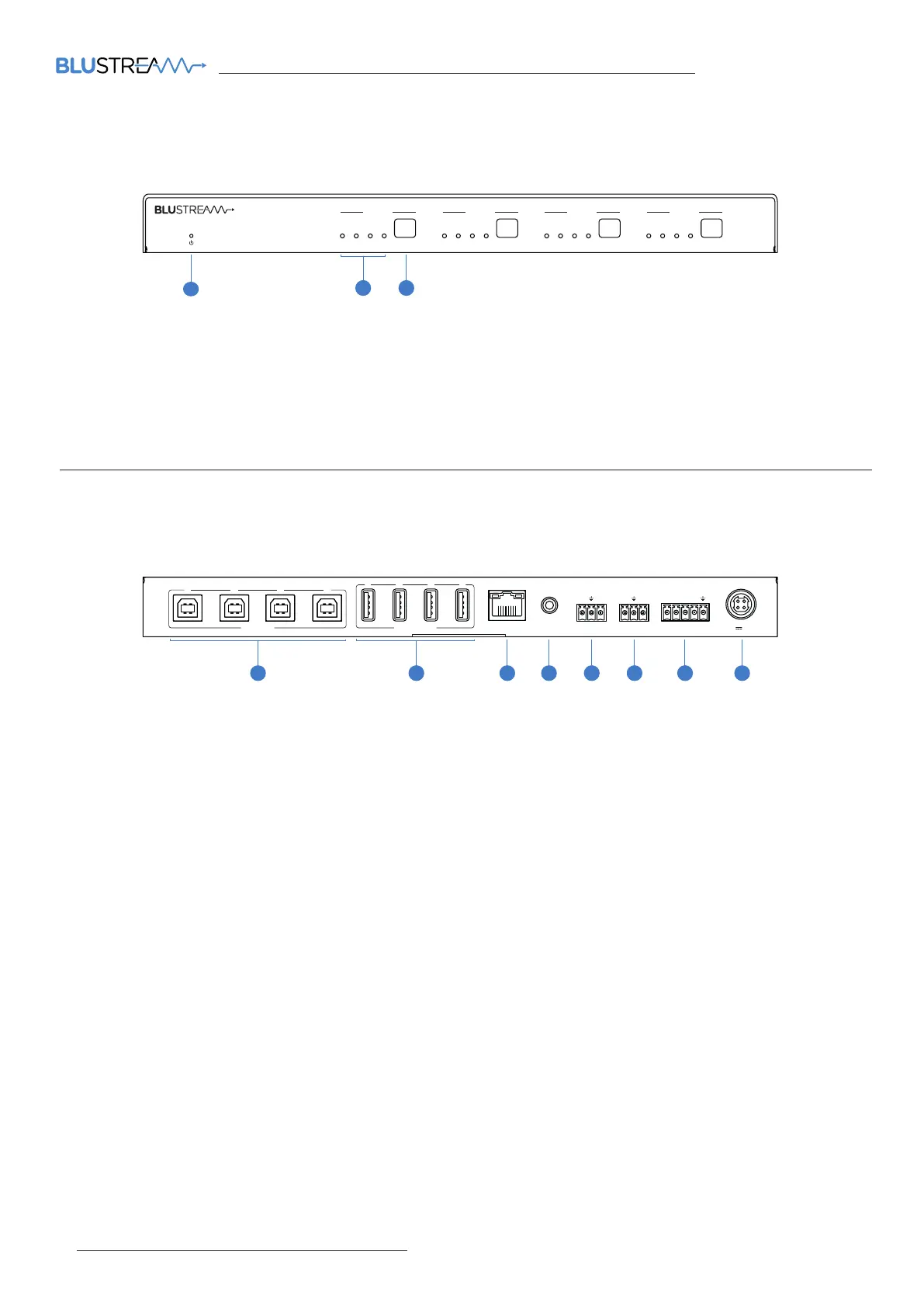

Front Panel Description

Rear Panel Description

2 3

1

1 Power LED - Illuminates blue when the device is powered on. Illuminates red when the device is powered o

2 Selection LED – The illuminated number correspnds to the USB Host the selected USB Device is routed to

3 Select Button - Press to cycle the selected USB Device through each USB Host output

1

1 1 1 12 2 2 23 3 3 34 4 4 4

DEVICE 1

4x4 USB KVM Matrix

DEVICE 2 DEVICE 3 DEVICE 4

SELECT SELECT SELECT SELECT

USB HOST RS-232 1 IR CTRLTCP/IPUSB DEVICES RS-232 2

1 2 3 4

24V 1.25A

TX RX TX RX 1 2

3

4

GPIO

MX44KVM

1 2 3 4

1 USB Host - Connects to USB port of Host device

2 USB Device - Connects to USB Devices or peripherals

3 TCP/IP - RJ45 connector for TCP/IP and Web-GUI control of the Matrix

4 IR Control Input - 3.5mm stereo connector to connect to Blustream IR receiver for IR control of the Matrix

5 RS-232 Port 1 - 3-pin Phoenix connector for direct RS-232 control of the Matrix

6 RS-232 Port 2 - 3-pin Phoenix connector for RS-232 pass-through to cascaded MX44KVM or a Blustream HDMI/

HDBaseT Matrix

7 GPIO Port - 5-pin Phoenix connector for input sense/output relay/contact closure control of 3rd party devices

8 24V/1.25A DC power input 4-pin DIN connector

3

1 1 1 12 2 2 23 3 3 34 4 4 4

DEVICE 1

4x4 USB KVM Matrix

DEVICE 2 DEVICE 3 DEVICE 4

SELECT SELECT SELECT SELECT

USB HOST RS-232 1 IR CTRLTCP/IPUSB DEVICES RS-232 2

1 2 3 4

24V 1.25A

TX RX TX RX 1 2

3

4

GPIO

MX44KVM

1 2 3 4

2 4 5 6 7 8
