MX44AVW USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk14

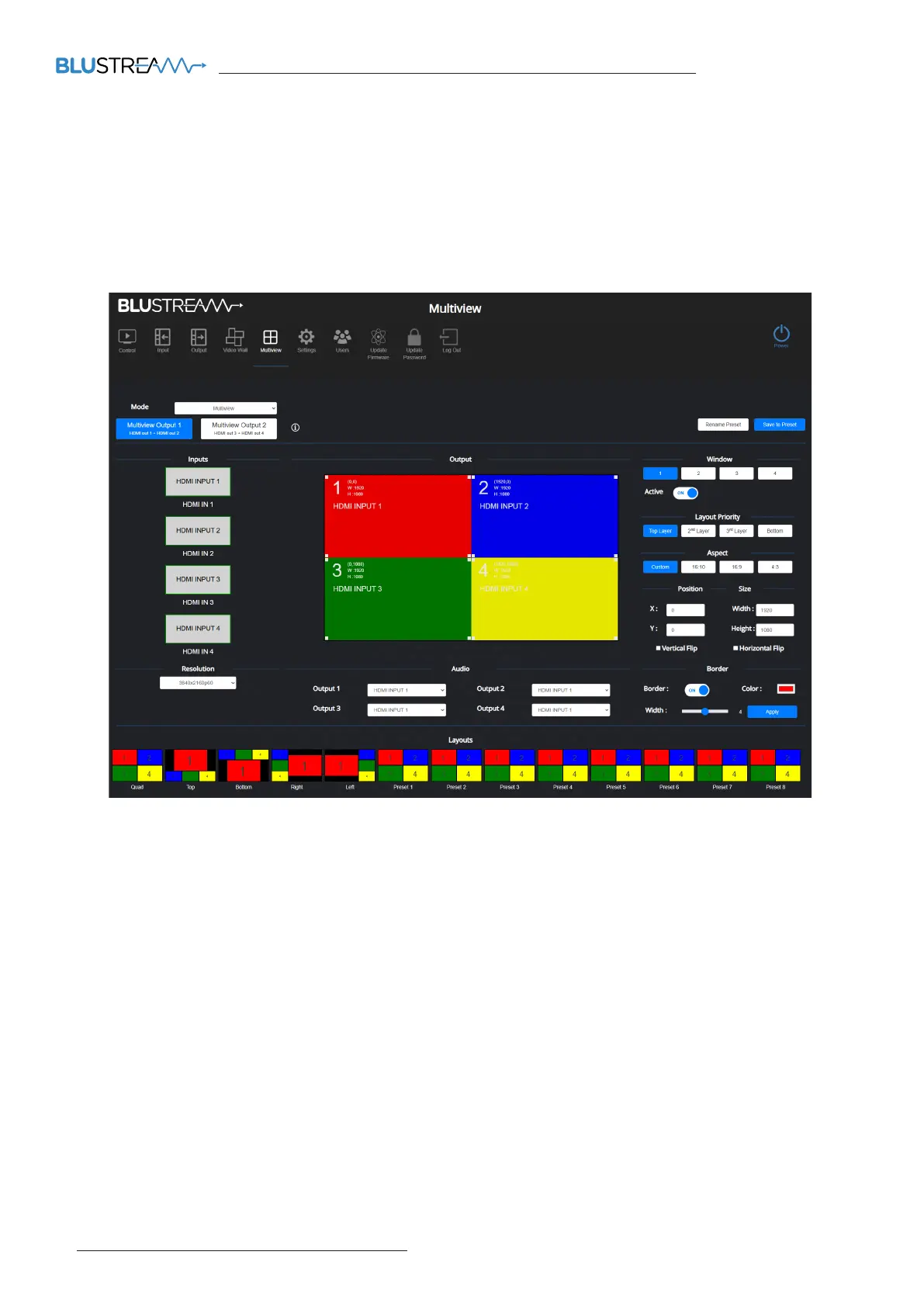

Web-GUI - Multiview Mode
Multiview mode allows the outputs of the MX44AVW to operate in up to 2 x multiview configurations: up to 4 x windows can be
displayed at once in either configuration and settings for size & position can be configured independently for each multiview
configuration.
Each window displayed represents a source input in a multiview configuration.
The windows are labelled 1-4 and display information such as the position of the window, the height and width of the window,
and the source currently connected.
Multiview Output 1, & Multiview Output 2:
Up to two independent multiview configurations can be displayed at any time:
– Multiview Output 1 will be simultaneously displayed on HDMI outputs 1 &2
– Multiview Output 2 will be simultaneously displayed on HDMI outputs 3 & 4
Each configuration can be adjusted by selecting their respective button
Resolution:
– Set the resolution for the Multiview output. This will apply to both simultaneous outputs
– Select the desired resolution from the drop down menu
Inputs:
– The 4 x HDMI inputs are listed here. Each input can be dragged and dropped on to the desired output. Each input is
displayed with a name which can be set in the Input page
– When no source is connected, the input will be highlighted with a red border
– When a source is connected, the input will be highlighted with a green border
