MX44AVW USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk10

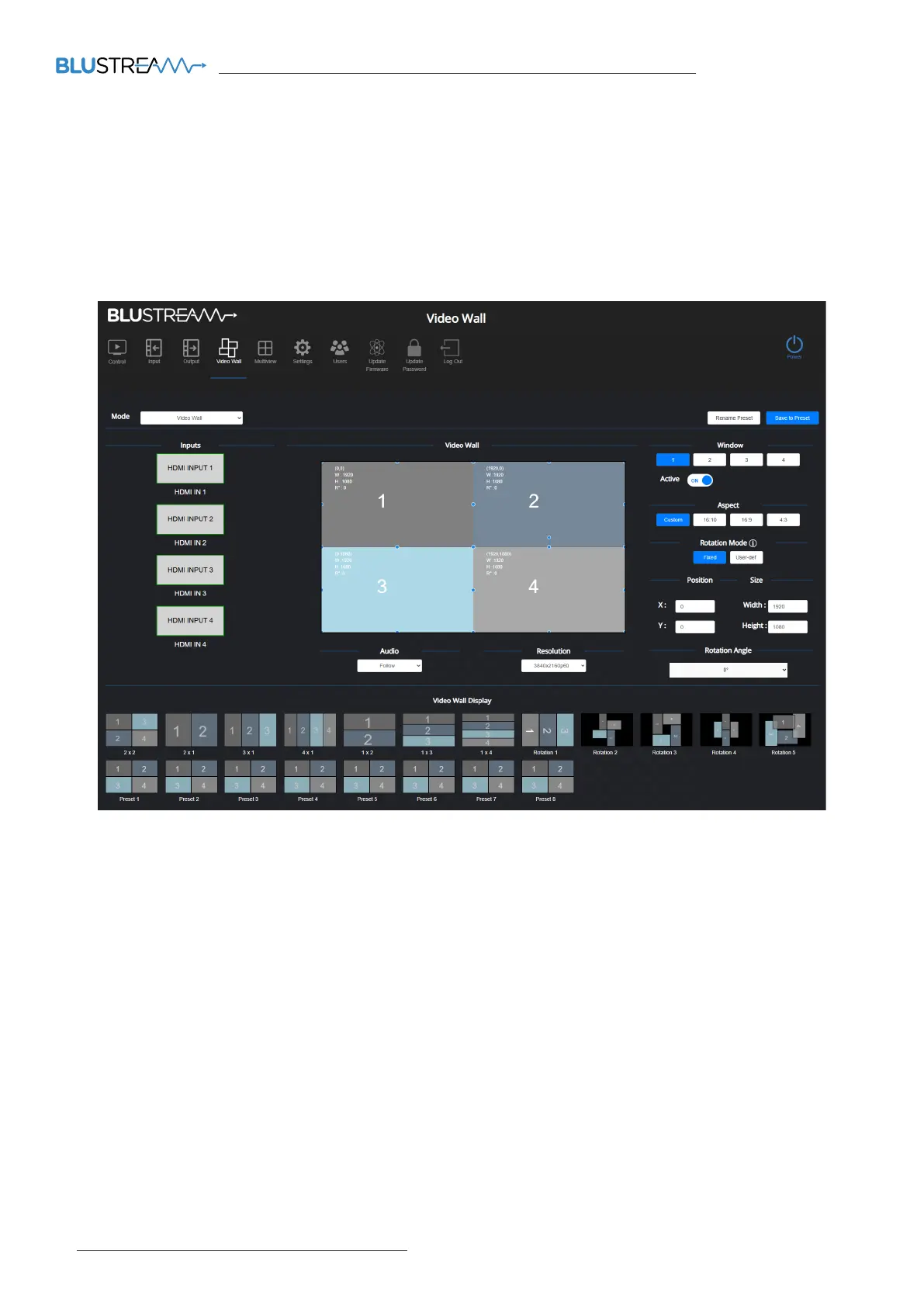

Web-GUI - Video Wall Mode
Video Wall mode allows the outputs of the MX44AVW to operate as a video wall. The video wall allows an input to be displayed
across any configuration of the 4 video wall windows: they can be tiled together contiguously or overlapped in a custom
formation in order to form one large screen to display an input. The video wall render, represents the entire input screen. Each
video wall window will output the section of the input that it is covering. For example, if the video wall window are setup in a 2 x 2
configuration, each window will display a quarter of the input.
Please note: If the video wall inputs are positioned in such a way that the black background of the input render is showing, there
will be part of the input that will not be displayed across any of the video wall outputs.
Inputs:
– The Inputs section lists the 4 x HDMI inputs. Each input is displayed with a name which can be set in the Input page.
– When no source is connected, the input will be highlighted with a red border
– When a source is connected, the input will be highlighted with a green border
– To set the input for the video wall, press the desired input. It will automatically switch while retaining the video wall setup
Video Wall Configuration:
The unit allows for configuration of the position, rotation, scale and source of each video wall window. The windows can be
moved around by pressing and dragging the window to the desired position. The scale and rotation can be modified by using the
sizing handles:
– The sizing handles on the top and bottom of the window will scale the window in the y-axis (horizontally)
– The sizing handles on the le and right of the window will scale the window in the x-axis (vertically)
– The sizing handles on the corners will scale the window with regards to aspect ratio
– The rotation handle will rotate the window while in User-defined Angle Rotation mode. If in Fixed Angle Rotation mode, a
warning dialog will be displayed
Please note: The rotation handle will only be active when the window is in User-defined Angle rotation mode.
