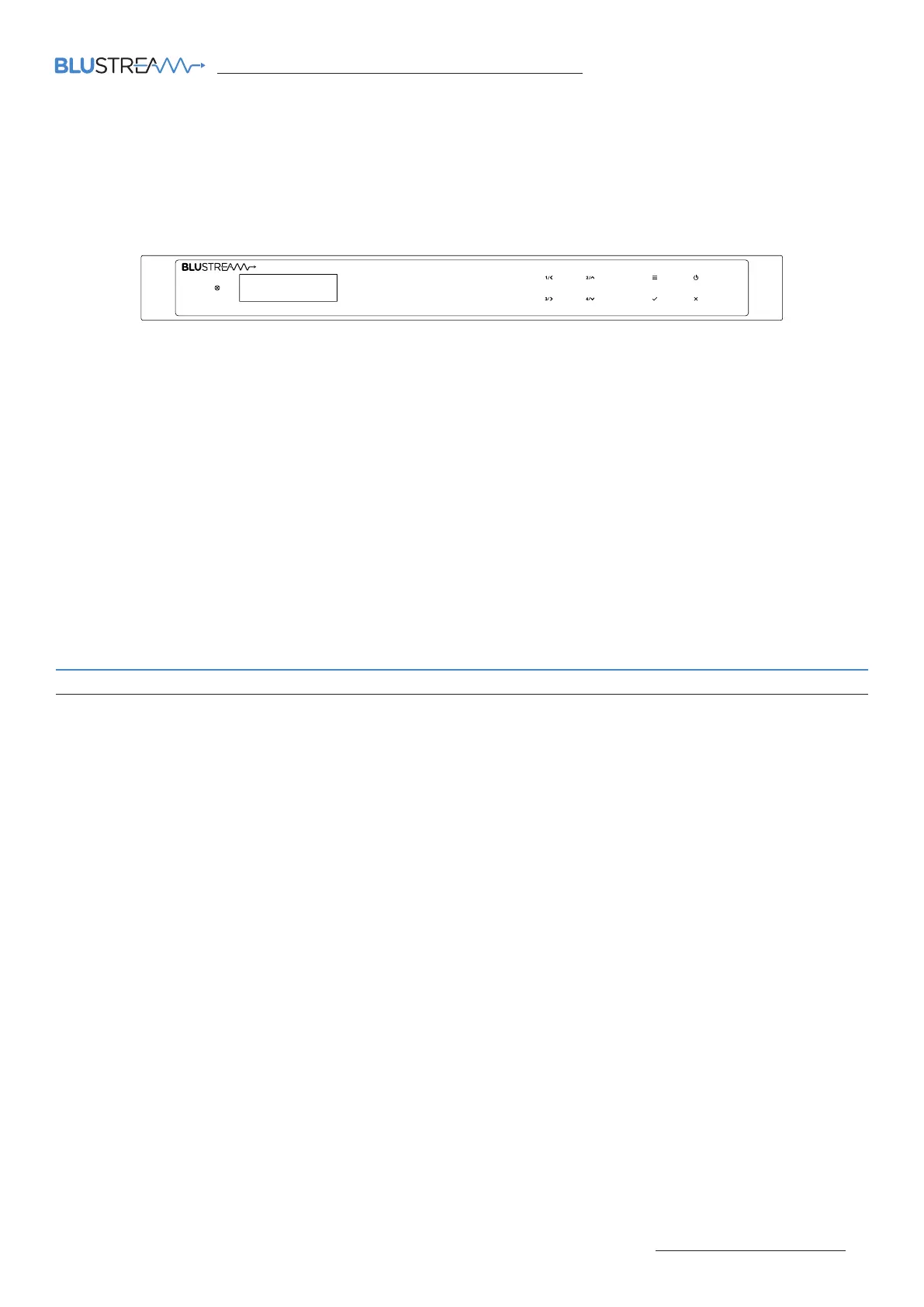

HMX44-18G-KIT QUICK REFERENCE GUIDE

Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk

HMX44-18G-KIT

Quick Reference Guide

The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K

60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT™ 3 technology to deliver HDMI, Bi-

directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single

CAT6A cable.

The HMX44-18G supports uncompressed distribution of the latest HDR resolutions

including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your

critical viewing areas.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI

on output 1, video smart scaling on HDBaseT outputs, and an independent 14x4 audio

matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for

control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to

enable seamless 3rd party control integration.

Introduction

FEATURES:

• Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology oering distribution of bit-for-bit 4K HDMI video and audio over a

single CAT6A cable

• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

• Output 1 features a simultaneous HDMI and HDBaseT™ output

• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*

• Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision

• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:

- 4 x audio breakout from HDMI source inputs

- 4 x audio breakout from zone outputs

- 4 x audio return from zone outputs*

- 1 x optical and 1x analogue audio input

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)

• Web interface module for control and configuration of the Matrix

• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP

• Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers

• Advanced EDID management and HDCP 2.3 compliant

• Supplied with 4 x RX18G HDBaseT™ Receivers

* Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

**ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G only

4x4 4K HDBaseT

ARC Matrix

Supporting Uncompressed 4K 60Hz 4:4:4
