IP250UHD USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
05

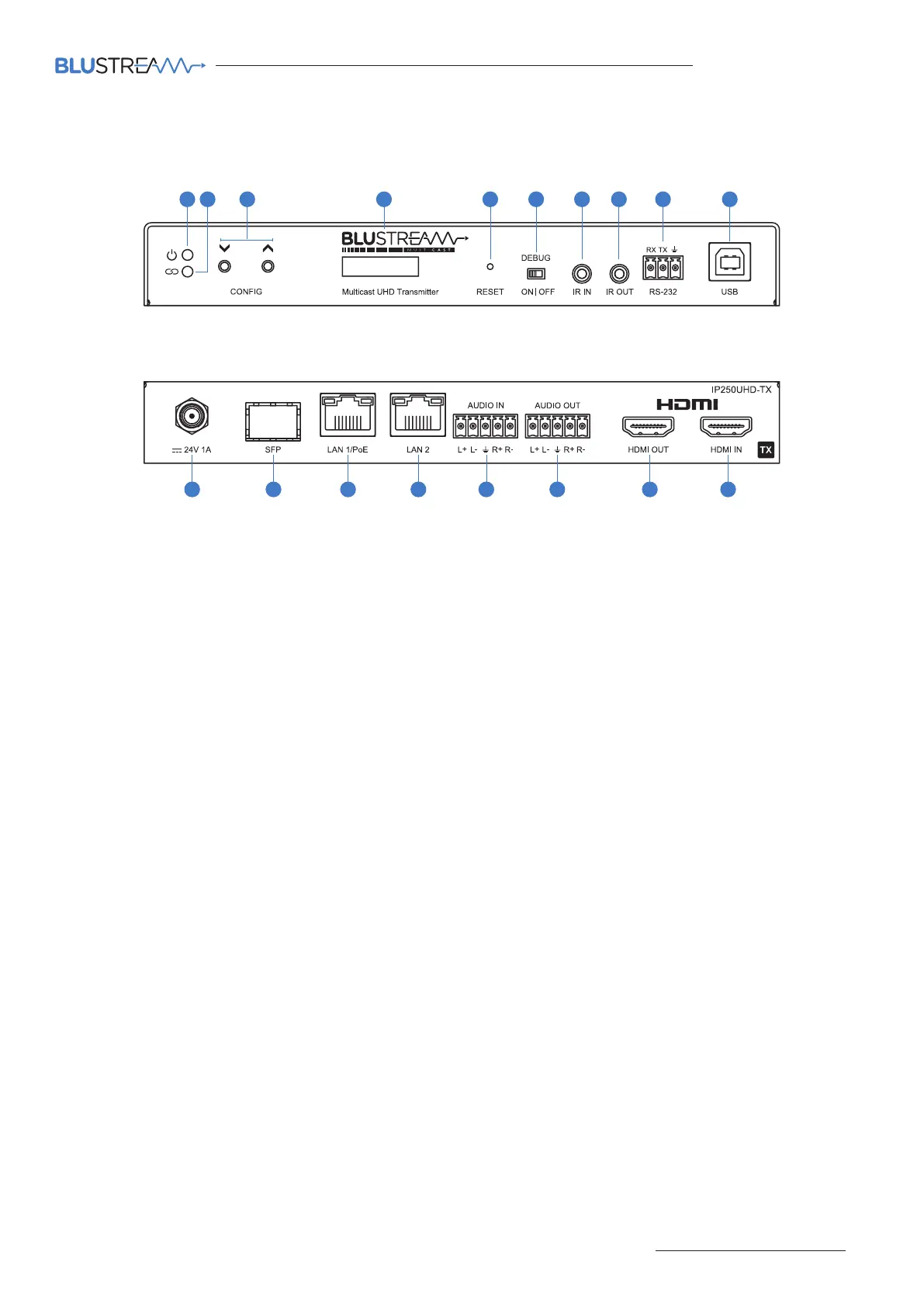

IP250UHD-TX Front Panel
181716151311
1 3 5 9 10
1 Power LED indicator
2 Link LED indicator - solid status light indicates a stable HDMI connection
3 Config select Up/Down - configure IP250UHD-TX manually and navigate through menu system
4 Status LCD - displays product information
5 Reset button - press and hold for 5 seconds to factory reset the product
6 Debug switch - used to gather debug information, leave in "O" position during normal use
7 IR IN (IR input) – 3.5mm stereo jack. Transmits IR to any IP250UHD-RX receiver currently viewing the IP250UHD-TX,
or to a single pre-defined Receiver for dedicated screen control (see Fixed Routing section). Please use supplied
Blustream IRR 5V IR Receiver. When using the Blustream IRCAB cable (optional) ensure cable direction is correct
8 IR OUT - (IR output) - 3.5mm mono jack – routed IR from any IP250UHD-RX (zone output) allowing source control.
Use supplied Blustream IRE1 5V IR emitter
9 Assignable bi-directional RS-232 port – connect to third party control device to extend RS-232 commands to any/
multiple IP250UHD Multicast products RS-232 port
q USB host connection for USB/KVM routing within Multicast system
w Power port – use 24V 1A DC adaptor (sold separately) if not using a PoE network switch
e SFP connection - connect to Layer 3 Managed switch SFP port for HDMI video and Dante audio distribution
r LAN 1 connection (PoE) - connect to Layer 3 Managed switch for combined HDMI video and Dante audio
distribution
t LAN 2 connection - connect to Layer 3 Managed switch for independent HDMI video and/or Dante audio
distribution
y L/R Analogue audio line input - embed balanced or unbalanced analogue audio onto the HDMI or Dante signal
u L/R Analogue audio line output - balanced or unbalanced 2ch audio breakout
Please note: Source input must be PCM 2ch audio for analogue audio outputs to work. Multicast products do not
down-mix Dolby Digital, DTS or 5.1ch audio signals
i HDMI output – HDMI loop out to daisy chain the input signal or connect to local display
o HDMI input – connect to a HDMI source
IP250UHD-TX Rear Panel
Panel Description - IP250UHD-TX Transmitter
6 7 8
812
4
14
2
