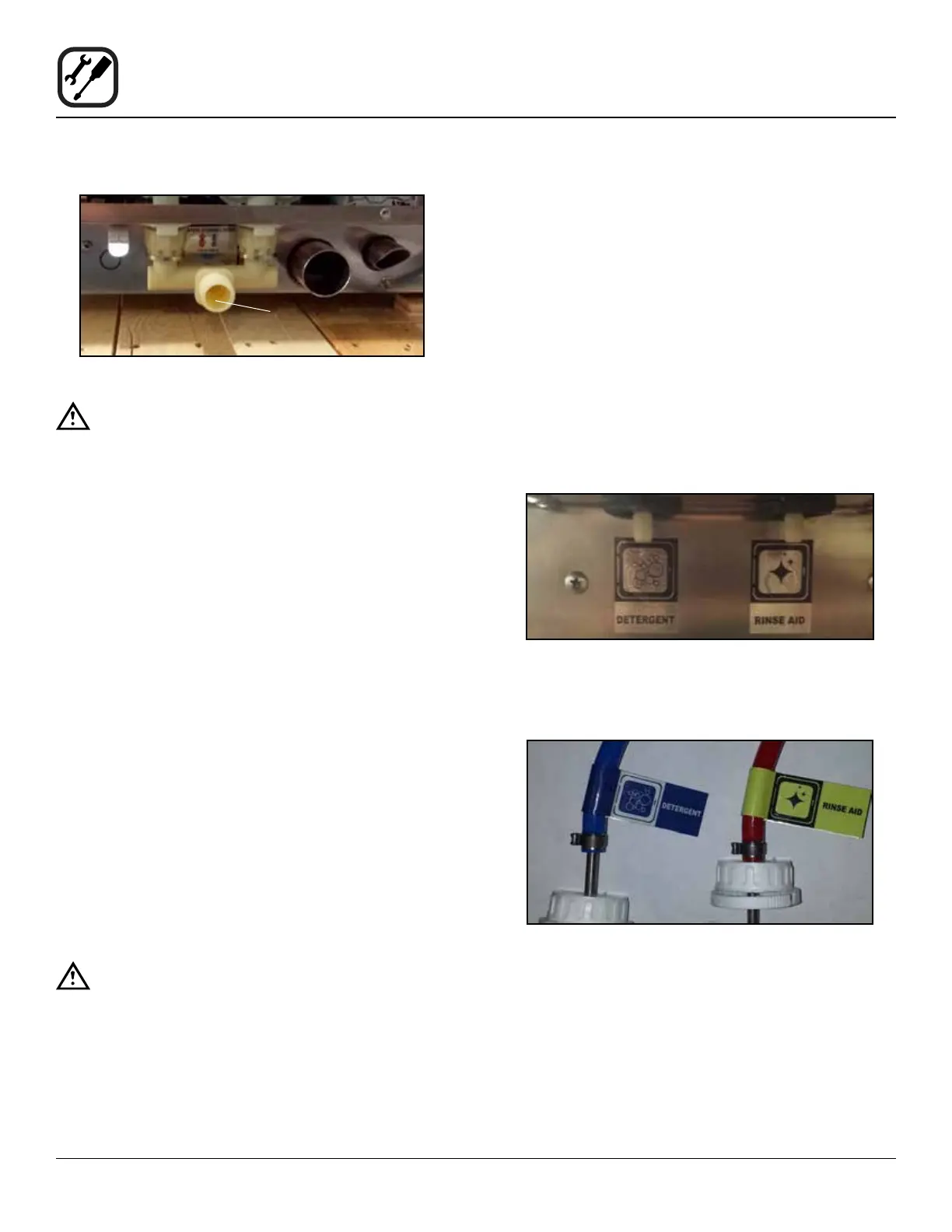

Installation
Plumbing Connections
WATER CONNECTION
Water
connection
Figure 1
WARNING!!
If the water temperature exceeds 70°F (21°C),
problems with regard to Combi Optima cali-
bration and cooling of the oven may occur.
The water connection must be carried out by
an authorized plumber in accordance with
existing local codes.
Clogged up water lters and dirt in the sole-
noid valves are not covered by the warranty.
To facilitate cleaning and servicing, the oven should be
connected with an approved exible 3/4” hose. Perma-
nent installations should be tted with a stop-tap and a
non-return valve.
Before connecting the oven to water, ush the tubes
thoroughly. Connect the oven.
DRAIN CONNECTION
Blodgett ovens are equipped with a drain system that re-
moves surplus water from the oven chamber. This may
be condensed water from the products, or it may occur
when the oven chamber is cooled down with cold water,
or when the oven chamber is cleaned.
NOTE: The drain piping must consist of temperature
resistant material, greater than 160°F, and be
of adequate diameter not to cause ow restric-
tion. Improper materials may deform and cause
restrictions, thus aecting performance.
WARNING!!
Connection must be carried out by a licensed
plumber, to an open or closed drain. The drain
must never end directly beneath the equip-
ment. The drain should not be located on the
same side the equipment controls are located.
The drain must be of stainless steel or an equally tem-
perature-resistant material, have a diameter of at least
1.57” (40 mm) and a fall of at least 3° or 5%.
CLEANING CHEMICAL
1. onnect the supplied detergent tubes (red and blue) to
the underside of the oven near the rear.
a. On the right-hand side behind the oven, the red
hose is connected to the intake with the rinse aid
icon and the rinse aid container.
b. On the right-hand side behind the oven, the blue
hose is connected to the intake with the deter-
gent icon and the detergent container.
NOTE: Labels on tubes should match those of ports
they are attached too.
Red Tube
Connection
Blue Tube
Connection
Figure 2
2. Insert the blue and red hoses into the proper bottles.
Blue is for detergent, red is for rinse aid.
Figure 3
