TRANSFER 3 AND LYNX
Attach the shaft to the blade by
depressing the spring pins (A,
Illustration 3) and inserting the handle
into the blade (B, Illustration 3) until the
spring pins lock into place. Extend the
handle as needed for deeper digging.
To remove the shaft from the blade, depress the spring pin and pull the
shaft out.
EVAC SHOVEL

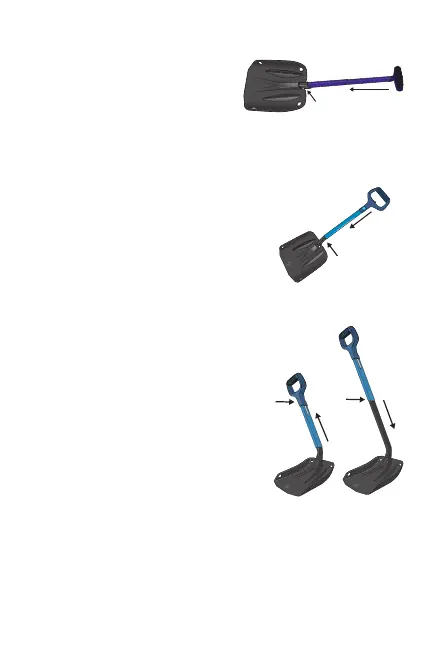

Depress the spring pin while inserting the
shaft into the blade (Illustration 4). Continue
inserting the shaft until the spring pin fully
locks into the blade. To assemble Hoe mode,
rotate the shaft 180 degrees before inserting
into the blade (Illustration 5).
To fully extend the shovel, grasp the blade
with one hand while depressing the upper
spring pin with the other hand. Slide the blue
upper shaft until the upper spring pin locks at
full length (Illustration 5).
To remove the shaft from the blade, depress the
lower spring pin and pull upward on the shaft
away from the blade. For improved packability,
fully compress the shaft assembly by depressing
the upper spring pin while sliding the upper
shaft toward the bend in the lower shaft.
CARE AND MAINTENANCE
When chopping hard snow or ice do not
use so much force that you bend the blade.
Never pry a full blade of dense snow, as it
may damage the blade and/or shaft.
Never use your shovel as a hammer.
If sliding action becomes sticky, fully cycle the shovel several times,
clean the shaft, spring pins and hosel to regain smooth action.
Periodically spray the spring pins with silicone to prevent freezing.
4english
A
B
3—
5— 9
B
A
A
B
4— 7
A
B
