CH APTER 3: INSTALL ATION
3.1 CABLING GUIDELINES
The USB 3.1 Extender requires a minimum grade of Category 6a cabling to be used in order to reach 328 feet (100 meters) of extension
distance.
NOTE: The total distance of 328 feet (100 meters) also includes the length of the patch cable if one is required. Up to 32.8 feet (10 meters)
of patch cable can be used, although the remaining 295 feet (90 meters) distance must consist of solid-core premise cabling.
Depending upon specific application requirements, we recommend that installers keep in mind how they intend to pull/route the link
cable and whether to use Shielded or Foiled cable where appropriate.
When installing this product, it is appropriate to use Unshielded (UTP) cabling if the cable run installation meets the following
requirements:
The cable is not bundled with other cables
The cable is run loosely with other Category cables
The cable is not placed close to sources of interference such as power lines and radios
The cable is not looped or coiled
When installing this product, Foiled (FTP) or Shielded (STP) cabling must be used if the cable run installation requires the following cable
run installation:
The cable is bundled with other cables
The cable is run tight against other Category cables
The cable is placed near sources of interference like power lines and radios
The cable is looped or coiled
NOTE: For best performance, install the USB 3.1 Extender using Shielded or Foiled CAT6a/7 cable.
3.2 REQUIREMENTS FOR INSTALLING THE EXTENDER
To complete the installation, you will also require the following items that are not included with this system:
USB compatible computer (host computer) with a USB compliant operating system
USB compatible device(s)
CAT6a/7 Unshielded Twisted Pair (UTP) cable with two RJ-45 connectors (if using surface cabling), or CAT6a/7 cabling with two
information outlets and two CAT6a/7 patch cords with RJ-45 connectors (if using premise cabling), ensuring the total cable length
does not exceed 328 feet (100 meters).
Host
USB Cable
Optional
Network
Connections
Optional
Network
Connections
USB Devices
Local Extender Remote Extender
USB 3-2-1
up to 100m over CAT 6a/7
LAN
IP Control

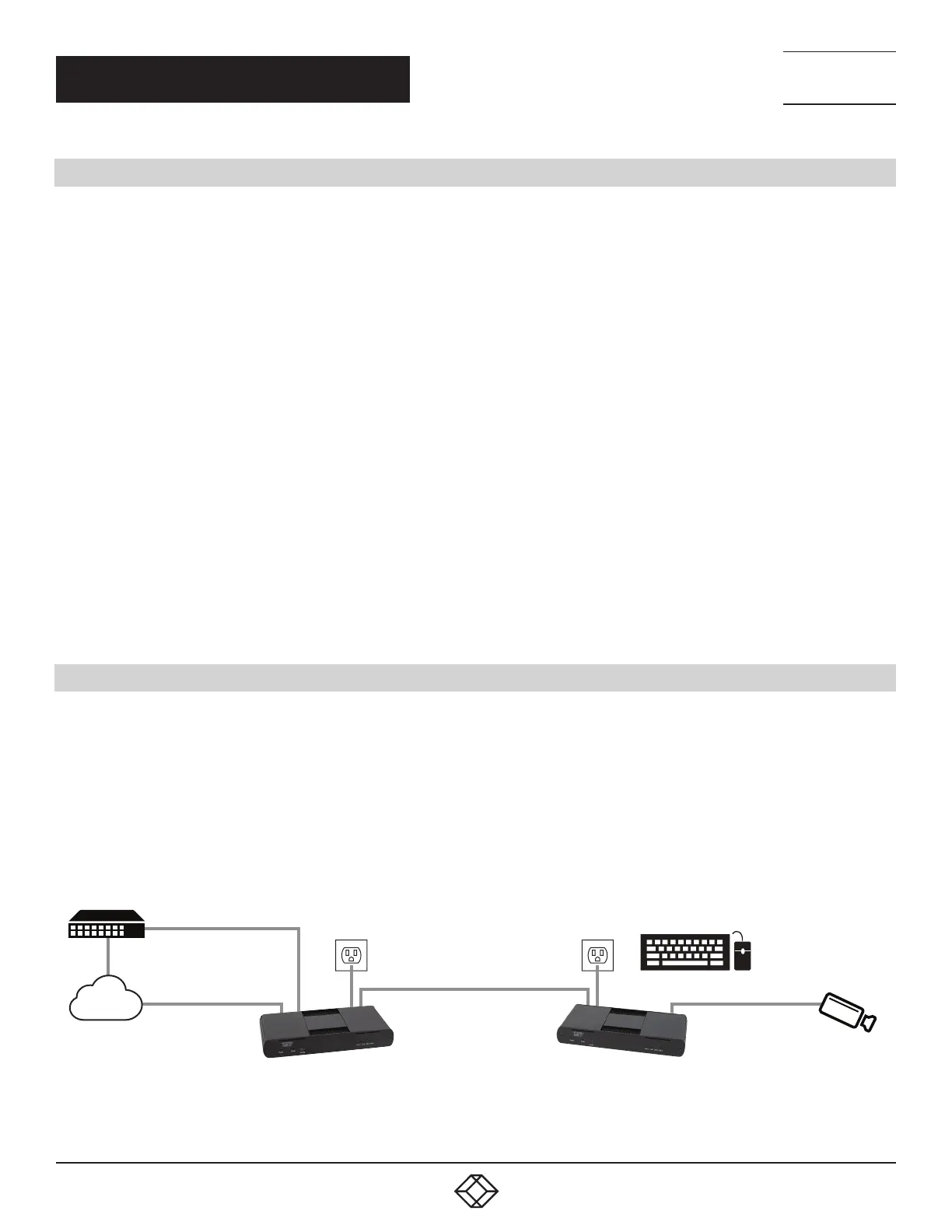

FIGURE 3-1. TYPICAL INSTALLATION
