56

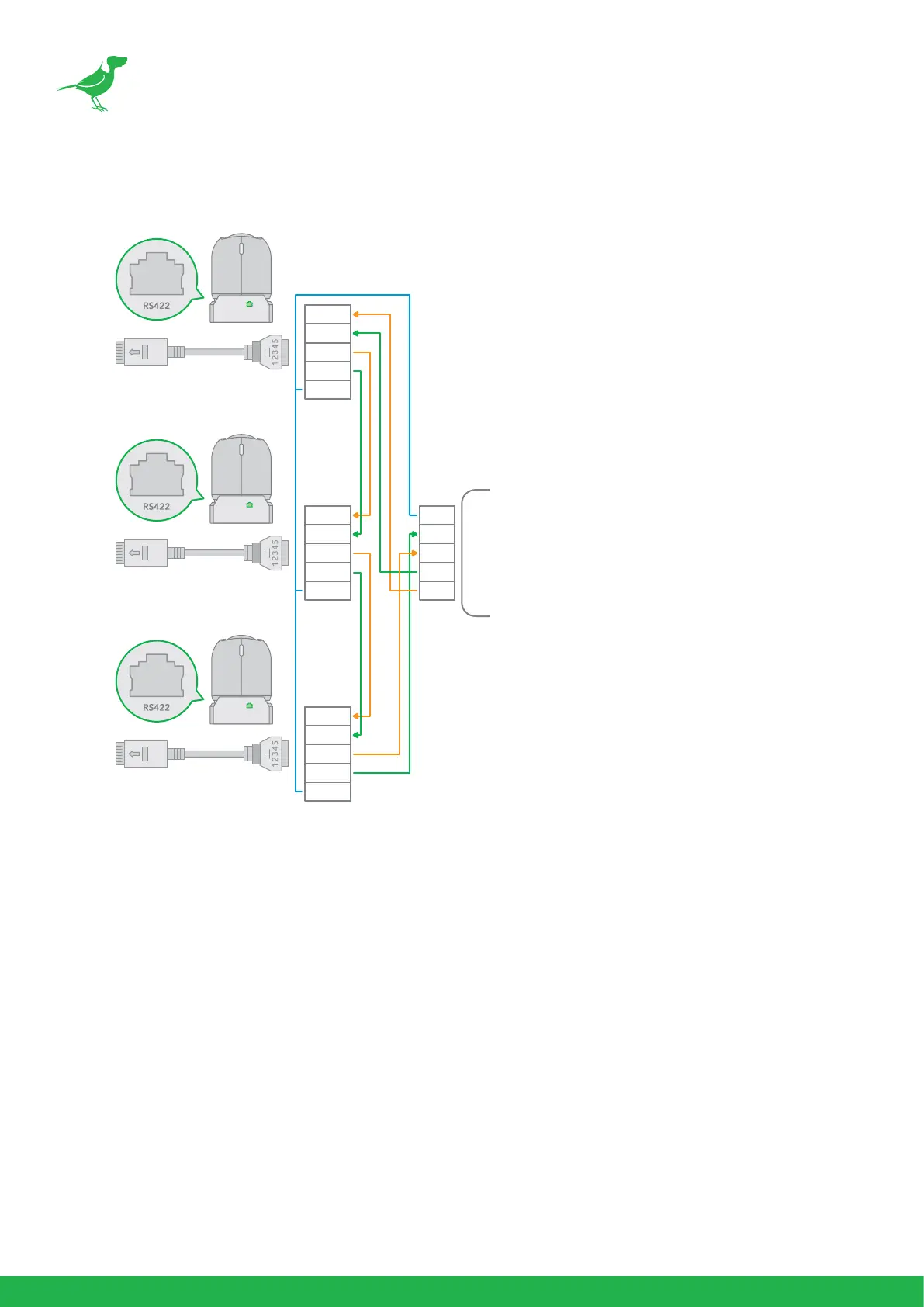

c. You can make an RS422 Daisy Chain multiple camera connection with an RS422 standard serial port
controller.
PELCO P/D Keyboard RS485 Connection
NOTE: Use the RS422 port for RS485 connection. Only use TX+ and TX- for RS485 connection.
1. For the DIP switch:
• Set the RS422 control method.
• Set the Baud Rate to match the Baud Rate setting on the controller keyboard.
2. Set the camera ID on OSD menu by remote controller
3. Reboot the camera by turning it O/On after the DIP switch has been set.
4. Use a PELCO P/D compatible keyboard.
5. Use preset #95 on the keyboard to display/exit camera OSD menu.
6. Use joystick and button “OPEN” or “CLOSE” to navigate OSD menu.
7. To operate the keyboard, please refer to the keyboard user manual.
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
RX +
RX –
TX +
TX –
GND
RS422
RS422 SERIAL PORT
ON CONTROLLER SIDE
