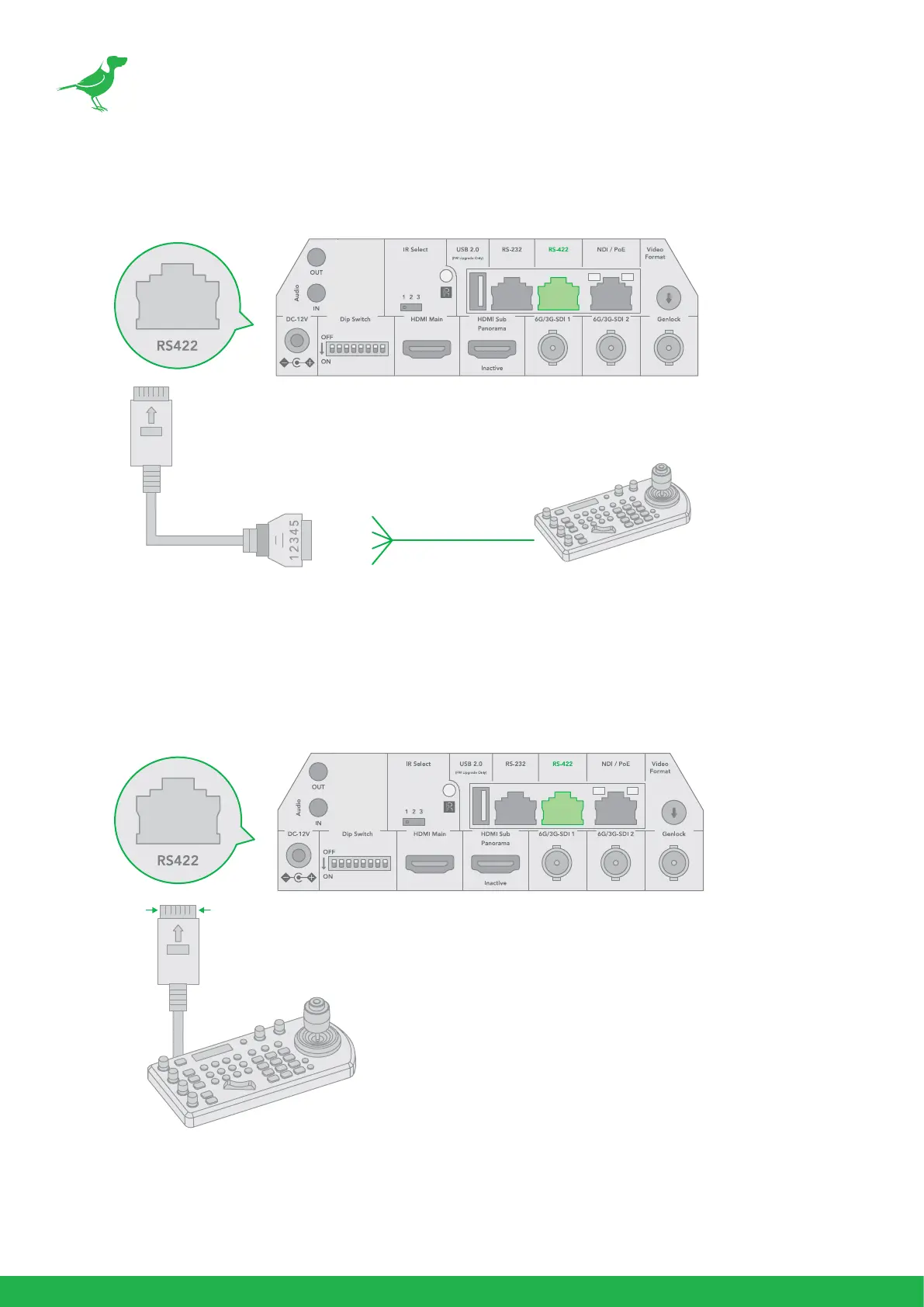

a. Use the included RJ45 to RS422 adaptor cable with a Phoenix connecter adaptor to make an RS422
connection for your control device.
b. You can use a CAT5/6 T-568B cable direct connection between the camera and the controller by following
the pin denition below.
Multicore
Control
Cable
PTZ Keyboard
RS422 Serial Port
connection on
controller side
VCC-CC45RS
Extension cable RS422
adaptor included
5. R –
4. R +
3. T –
2. T +
1. GND
CAT5/6
Network Cable
1. RX – (Orange/White)
2. RX + (Orange)
3. GND
(Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX + (Brown)
