52

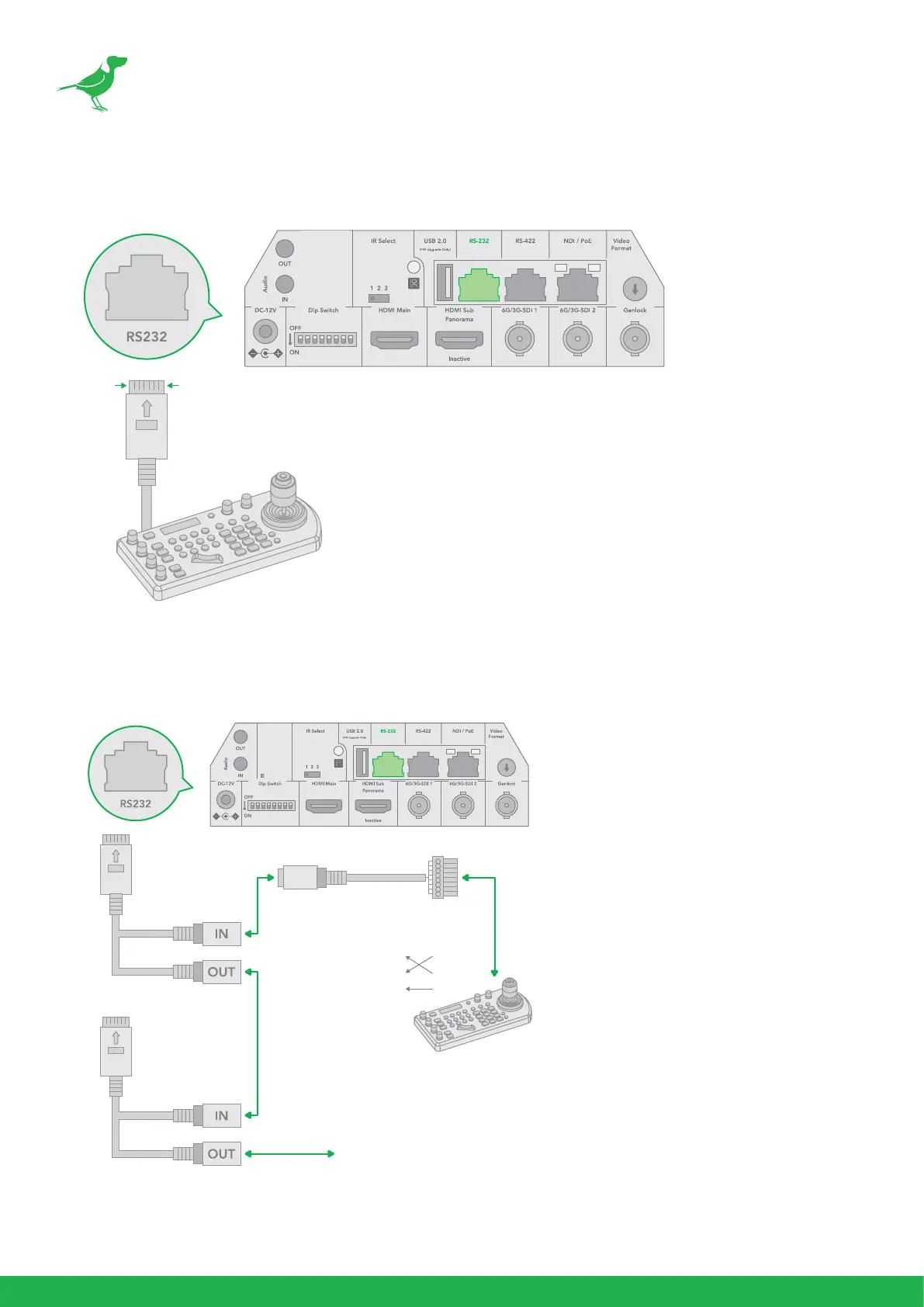

7. Or you can use CAT5/6 network cable (T-568B standard pinout) to make RS232 connection by following the
pin denition below:
8. You can make a RS232 Daisy Chain multiple camera connection with standard RS232 serial port controller as
below:
CAT5/6
Network Cable
1. IR_OUT (Orange/White)
2. DTR (Orange)
3. GND (Green/White)
4. DSR (Blue)
5. TX_OUT (Blue/White)
6. RX_OUT (Green)
7. TX_IN
(Brown/White)
8. RX_IN
(Brown)
1
8
1
2
3
4
5
6
7
8
VCC - CC45232
RJ45 TO RS232
CONTROL CABLE
ADAPTER
1. DSR
2. DTR
3. RXD
4. GND
5. TXD
6. NC
7. NC
8. NC
(Orange/White)
(Orange)
(Green/White)
(Blue)
(Blue/White)
(Green)
(Brown/White)
(Brown)
GND
TXD
RXD
Daisy Chain up to 7 cameras
RS232 Connection
with standard RS232 Serial Port
PTZ Keyboard Controller
