51

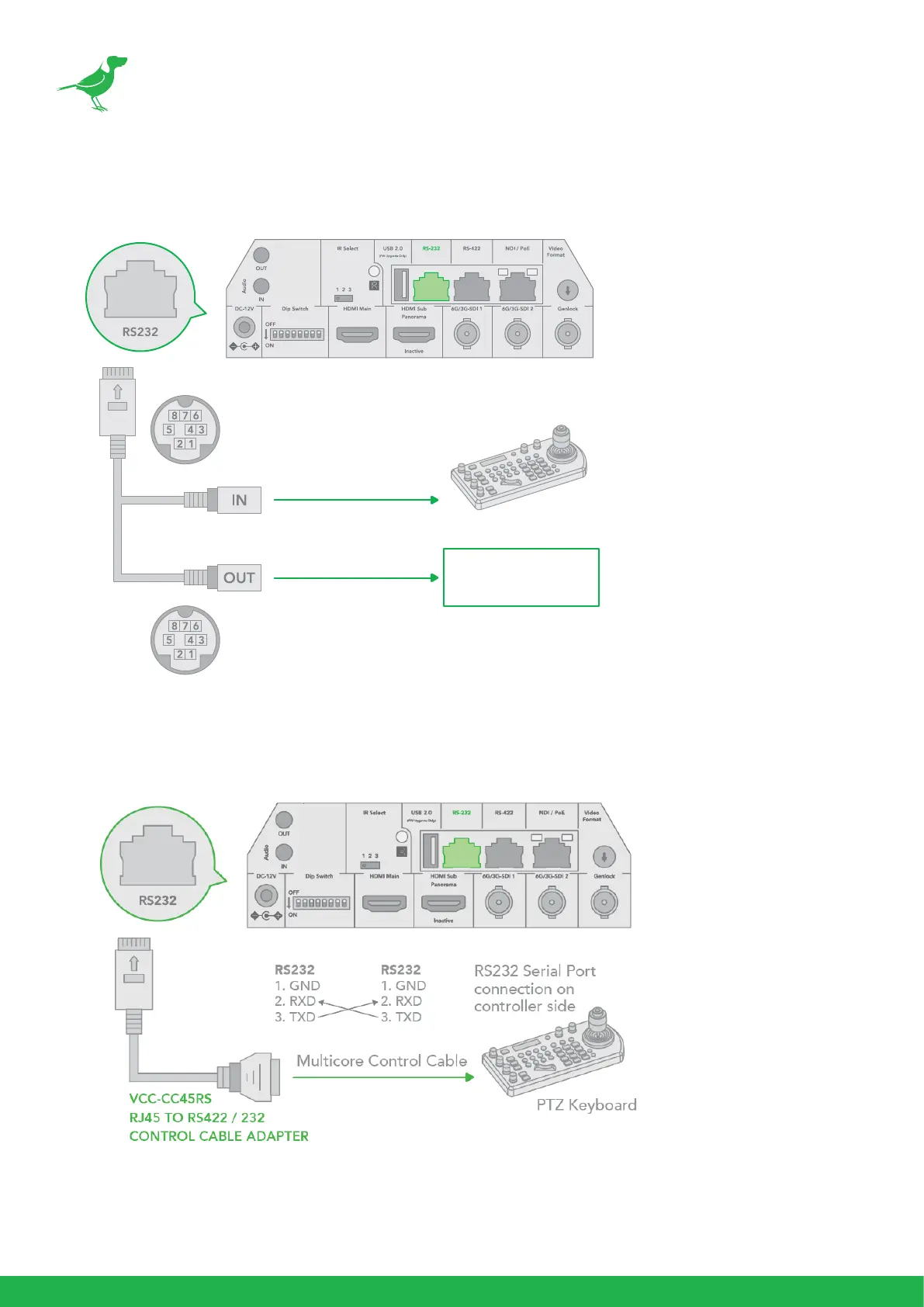

5. Use the included RJ45 to RS232 adaptor cable and 8 pin Mini Din adaptor to make RS232 connection for your
control device.
6. Use the included adaptor cable and RJ45 to RS422/232 Phoenix terminal contact adaptor to make RS232
connection for your control device.
8 pin Mini DIN
cable connector
PTZ Keyboard
RS232
Daisy Chain Control
RS232 Serial Port
connection on
controller side
1. DTR
3. TX
4. GND
5. RX
7. IR_OUT
2. DSR
3. TX
4. GND
5. RX
Extension cable
RS232 adaptor
included
