46

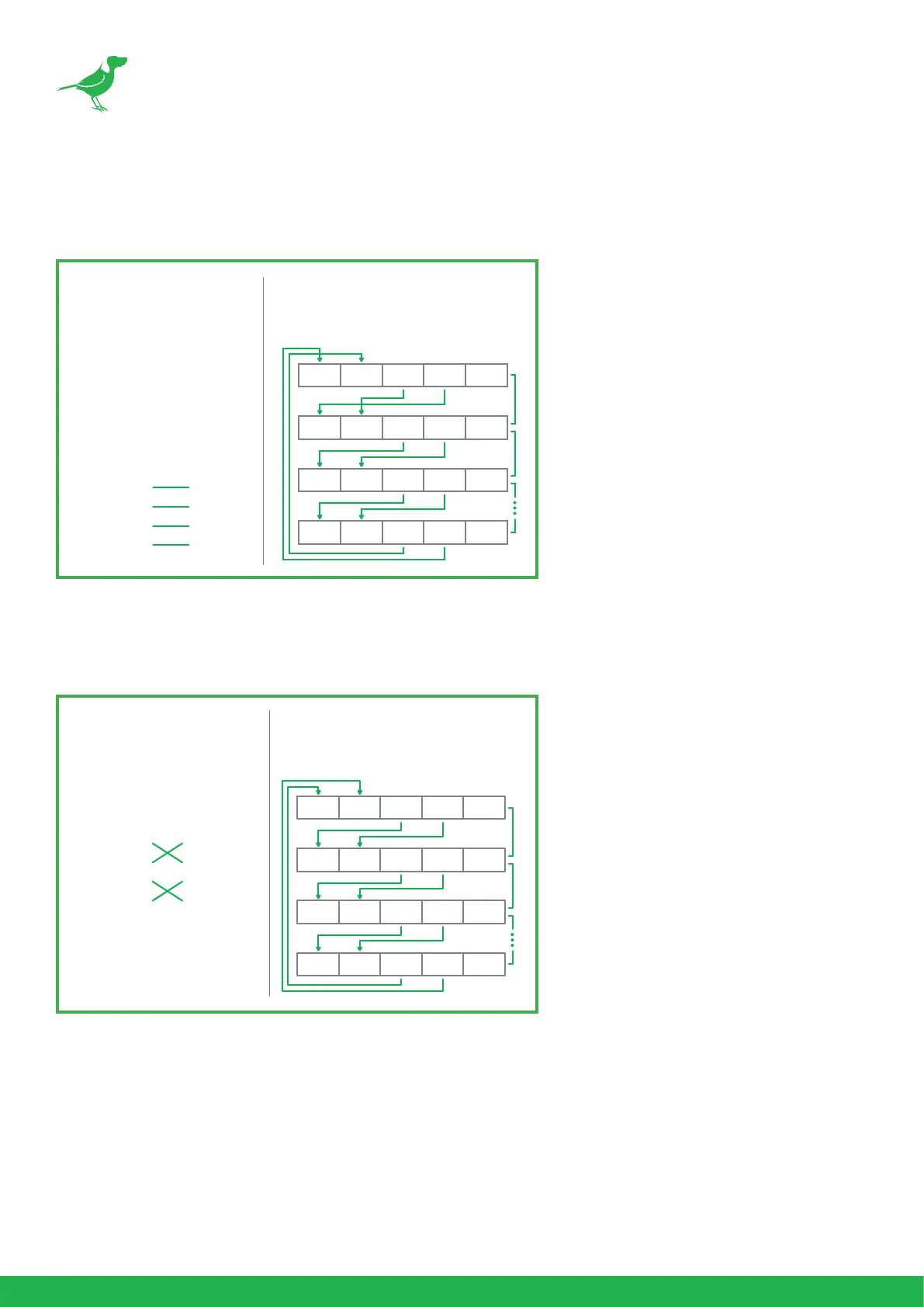

Sony Keyboard RS422 Connection
The connection of a SONY keyboard is dierent than other VISCA (non-Sony) keyboards. If using a SONY controller
and Daisy Chaining multiple cameras via RS422 connection:
Non-Sony Keyboard RS422 Connection
Make an RS422 connection and RS422 Daisy Chain multiple cameras connection with non-Sony controller as below.
Camera
5. GND
4. T +
3. T –
2. R +
1. R –
Keyboard
1. ---
2. ---
3. ---
4. ---
5. GND
6. RXD IN –
7. RXD IN +
8. TXD IN –
9. TXD IN +
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(SONY Keyboard)
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX – TX +TX – GND
KEYBOARD
CAM 1
CAM 2
CAM 7
SONY Keyboard
Connection
Camera
5. GND
4. TXD IN +
3. TXD IN –
2. RXD IN +
1. RXD IN –
Keyboard
1. GND
2. RXD IN –
3. RXD IN +
4. TXD IN –
5. TXD IN +
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(VISCA Keyboard)
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
KEYBOARD
CAM 1
CAM 2
CAM 7
VISCA Keyboard
Connection
