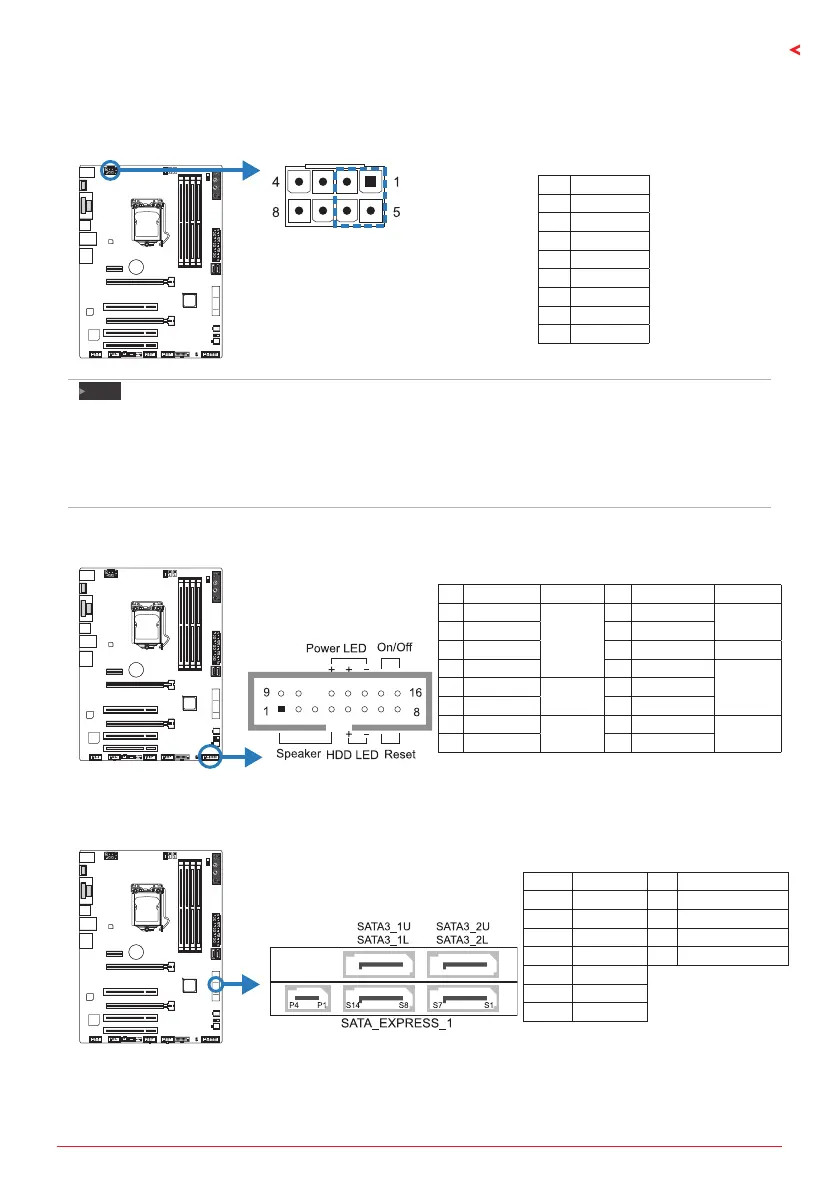

Chapter 2: Hardware installaon | 15

Z170GT5 & B150GT5

ATXPWR2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please

plug it into Pin 1-2-5-6 of ATXPWR2.

Pin Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note

»

  Beforeyoupoweronthesystem,pleasemakesurethatbothATXPWR1andATXPWR2connectors

havebeenplugged-in.

»

  Insucientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunconing

properly.UseofaPSUwithahigherpoweroutputisrecommendedwhenconguringasystemwith

morepower-consumingdevices.

PANEL1: Front Panel Header

This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connecon.

Pin Assignment Funcon Pin Assignment Funcon

1 +5V

Speaker

Connector

9 N/A

N/A

2 N/A 10 N/A

3 N/A 11 N/A N/A

4 Speaker 12 Power LED (+)

Power LED5 HDD LED (+)

Hard drive

LED

13 Power LED (+)

6 HDD LED (-) 14 Power LED (-)

7 Ground

Reset

buon

15 Power buon

Power-on

buon

8 Reset control 16 Ground

SATA_Express_1: SATA Express Connector

Each SATA Express connector can support one SATA Express device or two SATA devices.

Pin Assignment Pin Assignment

S1/S8 Ground P1 Reserved

S2/S9 TX+ P2 PERST#

S3/S10 TX- P3 CLKREQ#/DEVSLP

S4/S11 Ground P4 IFDet

S5/S12 RX-

S6/S13 RX+

S7/S14 Ground
