Tömning (waste)
Normal filtering to clean the pool.
Filter
Closed water flow between
the filter and the pool.
Closed
Reverse-direction water flow to
rinse the filter body.
Backwash
This function is used for first startup.
Sand in the sand tank is rinsed and the
sand bed after backwashing is leveled.
Rinse
Discharged directly from the drainoutlet,
used to lower water levelor discharge
water from the pool
Waste
Circulates pool water without
passing through the filter body.
Recirculate

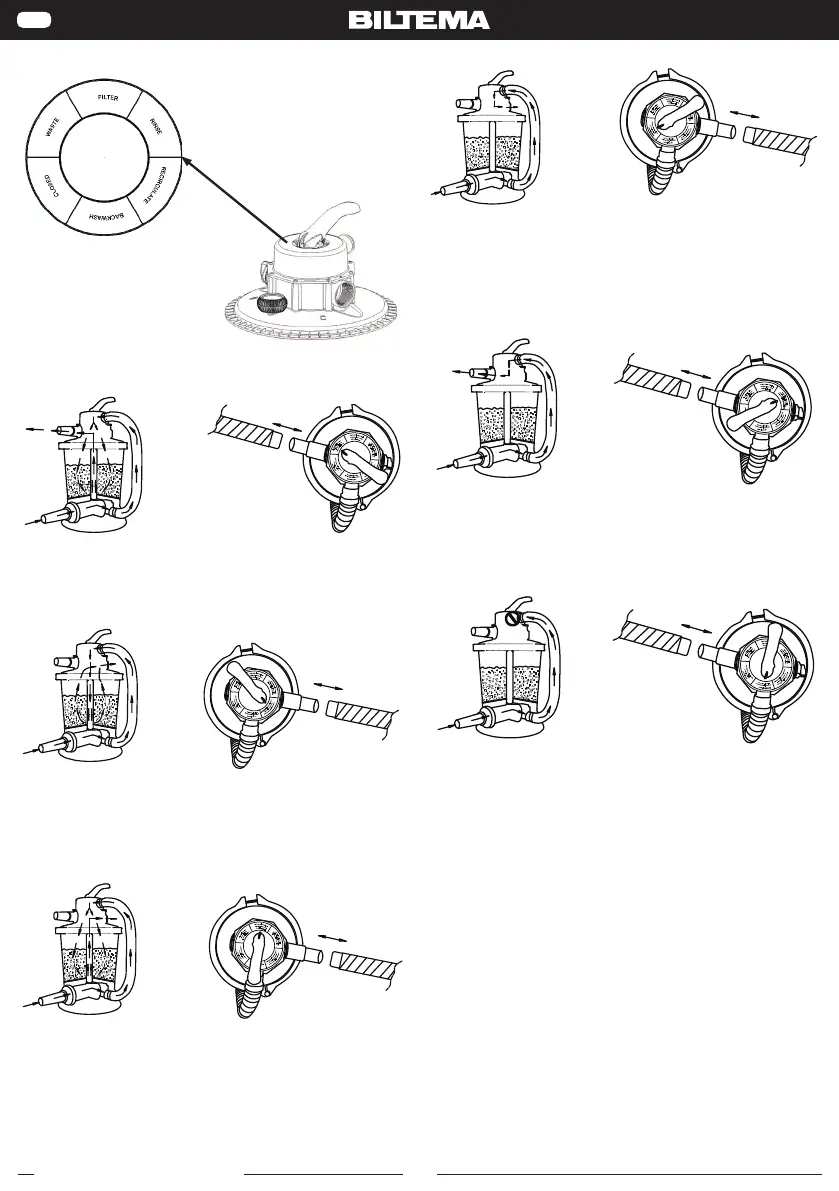

Water flow diagram
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
Används när du ska tömma poolen på vatten eller
sänka vattennivån. Skruva loss avtappningsventilen
(15) i botten av pumpen och låt allt eller delar av vatt-
net rinna ut. Skruva moturs.
Cirkulation (recirculate)
Normal filtering to clean the pool.
Filter
Closed water flow between
the filter and the pool.
Closed
Reverse-direction water flow to
rinse the filter body.
Backwash
This function is used for first startup.
Sand in the sand tank is rinsed and the
sand bed after backwashing is leveled.
Rinse
Discharged directly from the drainoutlet,
used to lower water levelor discharge
water from the pool
Waste
Circulates pool water without
passing through the filter body.
Recirculate
Water flow diagram
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
Cirkulerar poolvattnet utan att passera genom sand-
ltret. Vattnet rinner igenom reglerventilen och direkt
till poolen.
Stängd (closed)
Normal filtering to clean the pool.
Filter
Closed water flow between
the filter and the pool.
Closed
Reverse-direction water flow to
rinse the filter body.
Backwash
This function is used for first startup.
Sand in the sand tank is rinsed and the
sand bed after backwashing is leveled.
Rinse
Discharged directly from the drainoutlet,
used to lower water levelor discharge
water from the pool
Waste
Circulates pool water without
passing through the filter body.
Recirculate
Water flow diagram
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
Avstängt. Inget vattenöde mellan pool och sandl-
ter.
REGLERVENTILENS LÄGEN
SFP6-
23
-GB(V1)
www.JLeisure-Global.com
12
SFP6-
23
-GB(V1)
www.JLeisure-Global.com
13
pump, check the pressure reading of the
manometer.
Generally, when the pre s sure of the
0.2bar (3psi) (green area) , it runs normally.
Note: You must make sure that maintenance
begins only after the sand filter pump is
unplugged. Otherwise serious risks such as
personal injury and even death may occur.
Note: Record the reading of the manometer
When the manometer shows a pressure
of 0.2bar (3psi) or higher, please clean up
the sand bend or replace the sand. Use
"backwash" and "rinse" functions.
Note: regular rinsing according to use
situation is recommended.
Long-term storage and storage in winter
Using the product in a frozen pool may damage the product and invalidate the
quality warranty. If the product has to be used with antifreeze, propylene glycol
may also be used. Propylene glycol is a nontoxic chemical unharmful to any plastic
parts. Other types of antifreeze are highly toxic and may be harmful to the product’s
plastic elements.
1.Before discharging the water or repostioning of the pool, make sure the discharge
direction is towards the discharging ditch and away from the home. Review local
regulations for special water treatment requirements.
3.After emptying, remove all connected sand filter pumps, corrugated tubes and
4.Unscrew the drain valve (8) in an anticlockwise direction to completely empty
water inside the body. The drain plug is at the bottom of the body.
6.Lubricate the seal rings and washers in the order below for long-term storage.
7.The best practice for product storage is to dry the parts and motor and replace
them in the original package. To avoid shrinkage or corrosion, do not cover or wrap
the motor with a plastic bag.
8.Please store the motor and parts in a dry place at 32°F (0°C) ~104°F (40°C).
Location of
control valve
Functions
Filter
and then enters the pool
Backwash
and is then directly discharged
from the drain outlet.
Rinse
startup. Sand in the sand tank
is rinsed and the sand bed after
backwashing is leveled.
and is then directly discharged
from the drain outlet.
Drain
Discharged directly from the drain
outlet, used to lower water level
or discharge water from the pool
Discharged directly from the
pump without passing through
Recirculation
Circulates pool water without
through the control valve of the
Closed /
Filtrering (filter)
Normal filtering to clean the pool.
Filter
Closed water flow between
the filter and the pool.
Closed
Reverse-direction water flow to
rinse the filter body.
Backwash
This function is used for first startup.
Sand in the sand tank is rinsed and the
sand bed after backwashing is leveled.
Rinse
Discharged directly from the drainoutlet,
used to lower water levelor discharge
water from the pool
Waste
Circulates pool water without
passing through the filter body.
Recirculate
Water flow diagram
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
Normal ltrering för att rensa poolvattnet. Vattnet rin-
ner igenom sandltret och tillbaks till poolen.
Bakåtspolning (backwash)
Normal filtering to clean the pool.
Filter
Closed water flow between
the filter and the pool.
Closed
Reverse-direction water flow to
rinse the filter body.
Backwash
This function is used for first startup.
Sand in the sand tank is rinsed and the
sand bed after backwashing is leveled.
Rinse
Discharged directly from the drainoutlet,
used to lower water levelor discharge
water from the pool
Waste
Circulates pool water without
passing through the filter body.
Recirculate
Water flow diagram
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
Vattnet rinner i omvänd riktning för att rensa sand-
ltret. Vattnet rinner igenom sandltret och släpps
sedan ut genom pumpens avlopp.
Sköljning (rinse)
Normal filtering to clean the pool.
Filter
Closed water flow between
the filter and the pool.
Closed
Reverse-direction water flow to
rinse the filter body.
Backwash
This function is used for first startup.
Sand in the sand tank is rinsed and the
sand bed after backwashing is leveled.
Rinse
Discharged directly from the drainoutlet,
used to lower water levelor discharge
water from the pool
Waste
Circulates pool water without
passing through the filter body.
Recirculate
Water flow diagram
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
C
D
B
Denna funktion används när du startar poolen för
säsongen. Sanden i sandltret sköljs och och jämnas
till när du har kört en bakåtspolning.
