INSTALLING THE HOB
INSTALLATION PROCEDURE

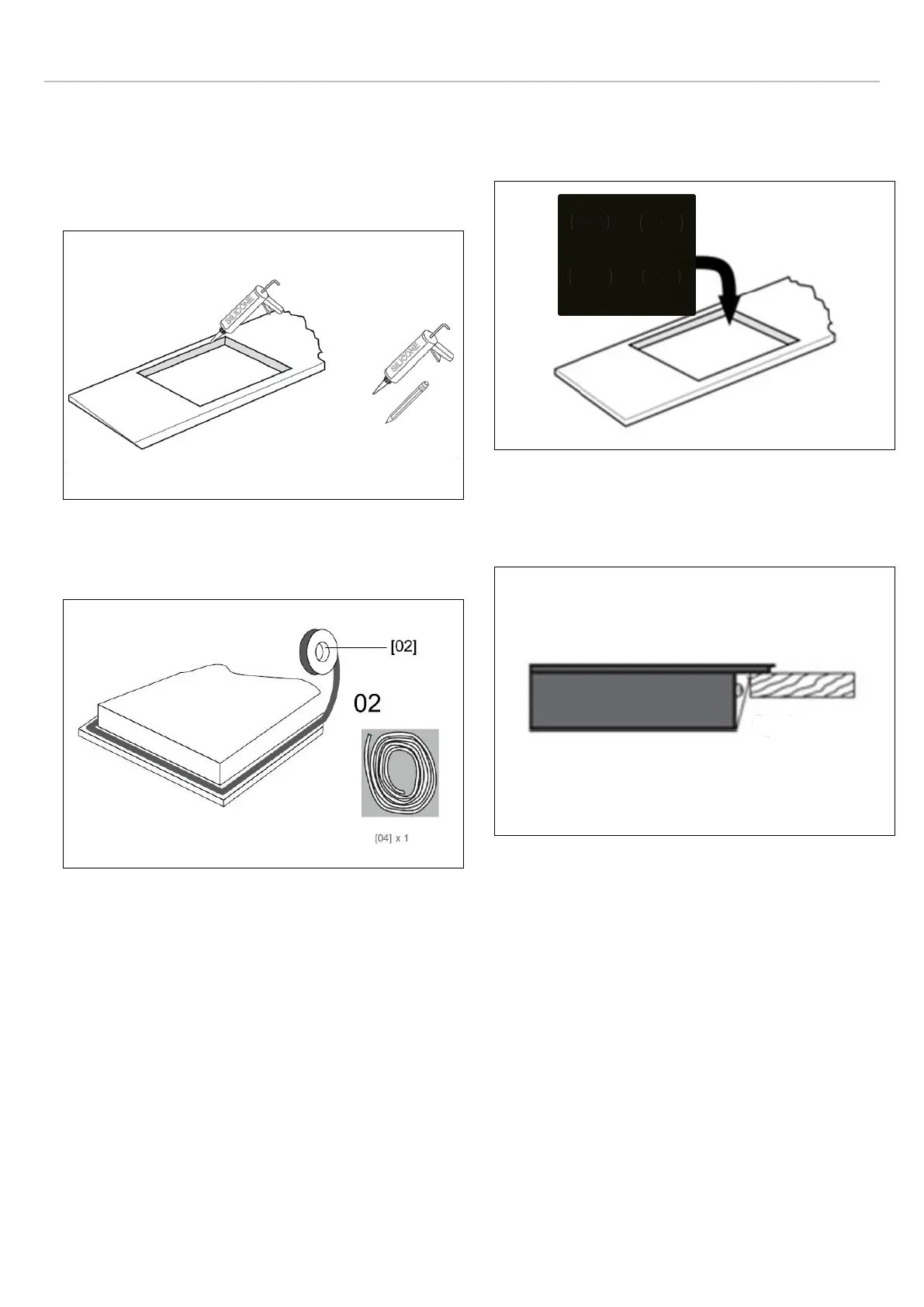

1) Cut out worktop to supplied dimensions shown with
suitable equipment. Seal the cut edge of the worktop
using silicone or PTFE and allow to dry prior to fitting the
hob.
Fig. 4
2) Stretch out the supplied seal along the underside edge
of the hob, ensuring the ends overlap.
Fig. 5
3) Do not use adhesive to fix the hob into the worktop.
Once the seal is fitted position the hob into the cutout in
the worktop.
Fig. 6
4) Apply gentle downwards pressure onto the hob to push
it into the worktop ensuring a good seal around the outer
edge.
Fig. 7
CAUTIONS
1) The ceramic hotplate must be installed by qualified
personnel or technicians. We have professionals at your
service. Please never conduct the operation by yourself.
2) The hob will not be installed directly above dishwasher,
fridge,freezer, washing machine or clothes dryer, as the
humidity may damage the hob electronics.
3) The ceramic hotplate shall be installed such that better
heat radiation can be ensured to enhance its reliability.
4) The wall and induced heating zone above the table
surface shall withstand heat.
5) To avoid any damage,the sandwich layer and adhesive
must be resistant to heat.
12
