INSTALLING THE HOB
SELECTION OF INSTALLATION EQUIPMENT

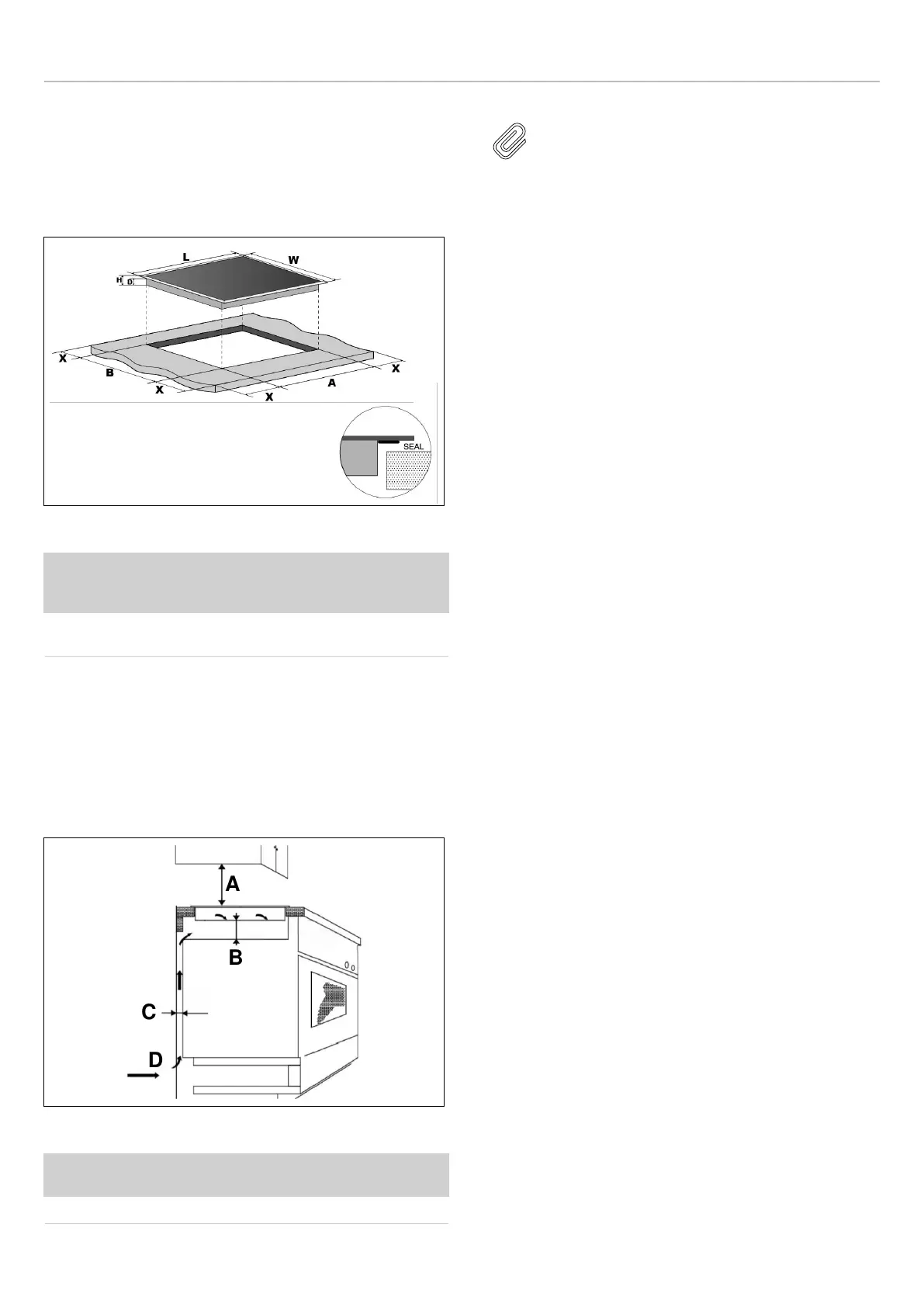

Cut out the work surface according to the sizes shown in
the Fig. 2 . For the purpose of installation and use, a
minimum of 5 cm space shall be preserved around the
hole.
Fig. 2
L
(MM)
W
(MM)
H
(MM)
D
(MM)
A
(MM)
B
(MM)
X
(MM)
590 520 60 56
560 480
50
MIN
Be sure the thickness of the work surface is at least 30 mm.
Please select heat-resistant work surface material to avoid
larger deformation caused by the heat radiation from the
hotplate.
Under any circumstances, make sure the cooktop hob is
well ventilated and the air inlet and outlet are not blocked.
Ensure the cooktop hob is in good work state.
Fig. 3
A(MM) B(MM) C(MM)
D
650 20 MIN 20 MIN Airintake
NOTE
The safety distance between the hotplate
and the cupboard above the hotplate
should be at least 650 mm.
BEFORE YOU INSTALL THE HOB, MAKE SURE THAT
• The work surface is square and level, and no structural
members interfere with space requirements.
• The work surface is made of a heat-resistant material.
• If the hob is installed above an oven, the oven has a
built-in cooling fan.
• The installation will comply with all clearance
requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection
from the mains power supply is incorporated in the
permanent wiring, mounted and positioned to comply
with the local wiring rules and regulations.
• The isolating switch must be of an approved type and
provide a 3 mm air gap contact separation in all poles (or
in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements).
• The isolating switch will be easily accessible to the
customer with the hob installed.
• You consult local building authorities and by-laws if in
doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such
as ceramic tiles) for the wall surfaces surrounding the
hob.
WHEN YOU HAVE INSTALLED THE HOB, MAKE SURE
THAT
• The power supply cable is not accessible through
cupboard doors or drawers.
• There is adequate flow of fresh air from outside the
cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space,
a thermal protection barrier is installed below the base of
the hob.
• The isolating switch is easily accessible by the customer.
A
B
C
D
11
