Installation

6003480_0 – 27.03.2017

EN

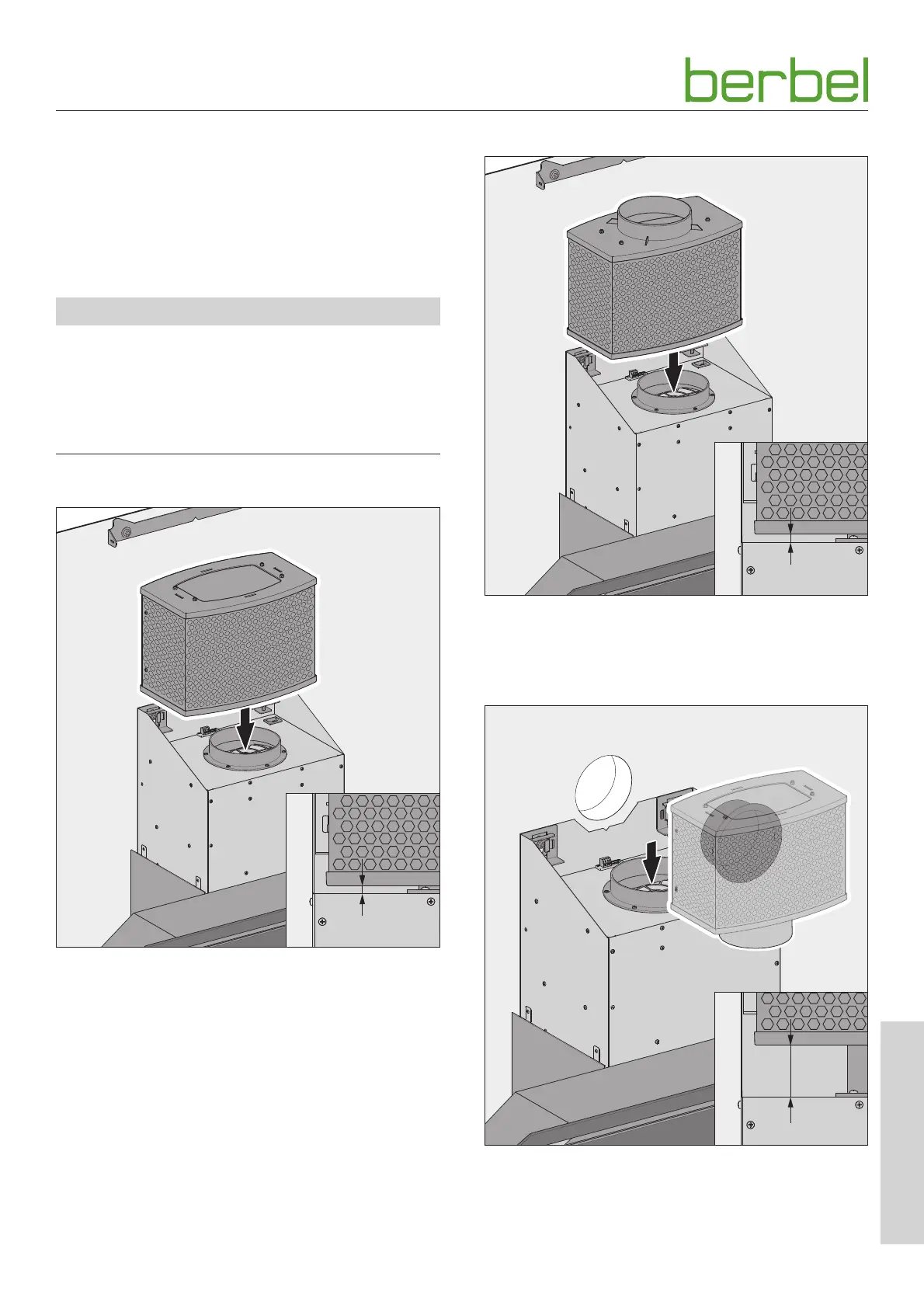

3.5.6 Install filter (with recirculating and hybrid

operation)

There is a pipe connection (Ø 150 mm) on the fan housing as

an installation aid for the installation of the filter.

The filter is placed correctly when the bottom edge of the

filter is parallel to the top edge of the fan‘s housing and the

gap is approximately 5 mm wide.

m CAUTION!

Danger of injuries due to sharp edges!

The side panels of the fan box have edges that can cause

cutting injuries to the hands, e.g. with rough handling of the

filter attachment.

 Carefully fit the filter from above.

 Avoid contact with the side panels.

Recirculated air mode

5

 Place the recirculated air filter onto the guide on the fan

housing from above.

 Ensure that the recirculated air filter is correctly installed.

Hybrid mode - exhaust air upwards

5

 Place the hybrid filter onto the guide on the fan housing

from above.

 Ensure that the hybrid filter is correctly installed.

Hybrid mode - exhaust air to the rear

67

 Place the hybrid filter onto the guide on the fan housing

from above.

 Ensure that the hybrid filter is correctly installed.
