Installation

6003480_0 – 27.03.2017

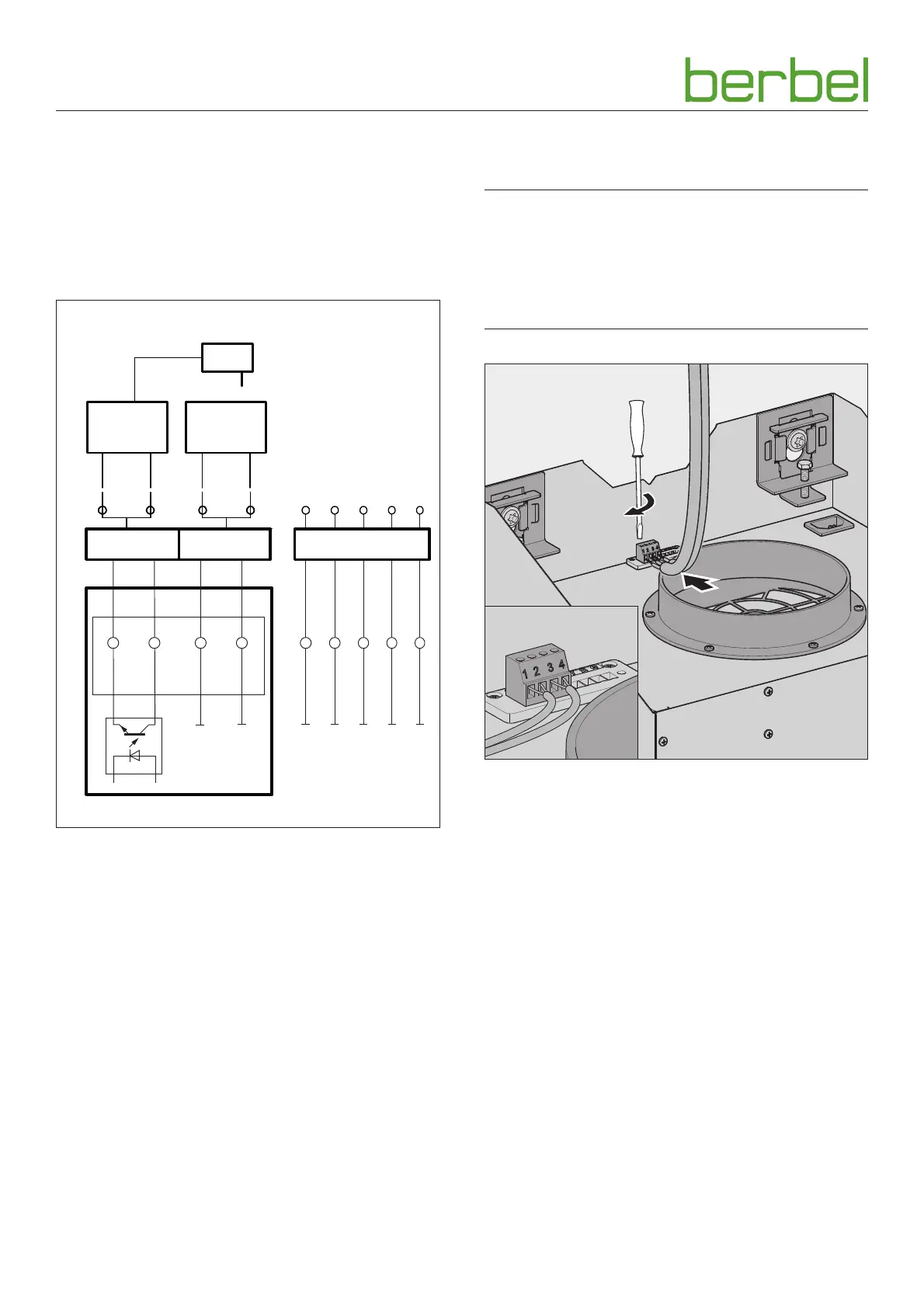

3.5.5 Connect accessories

Depending on the installation situation, accessories may be

connected to the hood:

y Wall box

y Window contact switch

y Under-pressure monitor

 Observe the instructions for the accessories.

12 V DC

4 5

6

7

8

9

BMK-F F-K

2 31

D

A

B

C

E

F

G

H

12 V DC

GND

X1

+ 5 V

MFK

BMK2

BMK1

ST3

+

–

I

A Control box

y BMK1: Wall sleeve contact, optocoupler collector,

max. 12 mA / 12 V DC, safe galvanic separated

y BMK2: Wall sleeve contact, optocoupler emitter,

max. 12 mA / 12 V DC, safe galvanic separated

B Terminal “BMK-F” for the wall box connection

C Terminal “F-K” (multifunction contact) for the window

contact switch or under-pressure monitor connection

D Control line from the wall box

E Wall box

F Wall box power unit

G Window contact switch

H Control line from the window contact switch

I Bus connection

Connection is implemented via cable terminals on a

detachable connector on the fan housing.

m ATTENTION!

Risk of damage through incorrect connection!

A mix-up of the control wires can result in damage to the

electronics.

 When connecting the control line ensure correct polarity:

Core 1 on terminal 1, core 2 on terminal 2.

1.

2.

Wall box

 Connect the wall box as follows:

y Core 1 on terminal 1

y Core 2 on terminal 2

y The wall box is closed when the control contacts are

open.

y The wall box is open when the control contacts are

closed.

Window contact switch

 Connect the window contact switch as follows:

y Blue/white core to terminal 3

y Brown/green core to terminal 4

y The hood‘s fan is only operational when the window is

open.

Under-pressure monitor

y The hood‘s fan is only operational when no critical under-

pressure is determined in the room.
