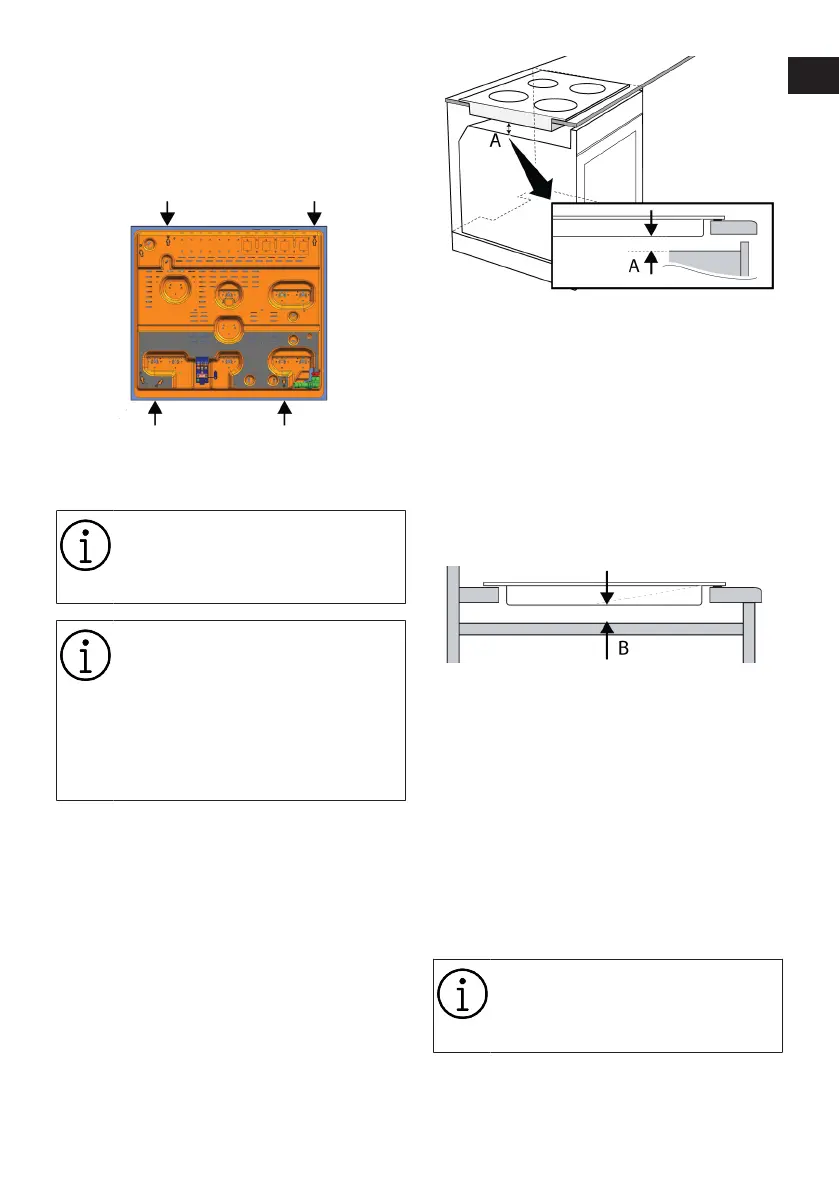

Rear view (connection holes)
Location of the connection holes shown in
the below figure are schematic,may vary
depending on the product model. Fix them
according to connection holes on your
product.
Place the burner plates, burner plate caps
and grills back to their seating after install-
ation.
Making connections to different
holes is not a good practice in
terms of safety since it can dam-
age the gas and electrical system.
There are gas and electrical com-
ponents contained within this hob,
therefore when fitting the mounting
springs/clamps only attach the
supplied fixings to the connection
holes shown in this manual. Failure
to observe this advise may lead to
life and property safety.
If there is an built-in oven under the hob;
When installing the hob on an built-in oven,
a distance should be left between the upper
wall of the oven and the lower housing of
the hob, as shown in the figure.
A min. 5 mm
If there is a drawer/cabinet under the hob;
When installing the hob onto a cabinet, a
shelf must be installed in order to separate
the cabinet from the hob as illustrated in
the above figure. This is not required when
installing onto a built-under oven.
For example, if it is possible to touch the
bottom of the product since it is installed
onto a drawer, this section must be covered
with a wooden plate.
B min. 15 mm
Final check
1. Reconnect the product to the mains.
2. Check electrical functions.
3. Open gas supply.
4. Check whether the gas connections are
securely attached and whether there are
any leaks.
5. Ignite burners and check appearance of
the flame.
Flame must be blue and have a reg-
ular shape. If the flame is yellowish,
check if the burner cap is seated
securely or clean the burner.
