22 / 108 EN Split type air conditioner / User Manual
22 / 112 EN
Split Type Air Conditioner / User Manual
4 Installation
C
If the wall is made of brick,
concrete, or similar material,
drill 5mm-diameter (0.2in-
diameter) holes in the wall
and insert the sleeve anchors
provided. Then secure the
mounting plate to the wall by
tightening the screws directly
into the clip anchors.
Step 3: Drill wall hole for connective piping
1. Determine the location of the wall hole based
on the position of the mounting plate. Refer to
Mounting Plate Dimensions.
2. Using a 65mm (2.5in) or 90mm(3.54in)
(depending on models )core drill, drill a hole in
the wall. Make sure that the hole is drilled at
a slight downward angle, so that the outdoor
end of the hole is lower than the indoor end
by about 5mm to 7mm (0.2-0.275in). This will
ensure proper water drainage.
3. Place the protective wall cuff in the hole. This
protects the edges of the hole and will help
seal it when you finish the installation process.
A
CAUTION! When drilling the wall
hole, make sure to avoid wires,
plumbing, and other sensitive
components.
Wall
Indoor Outdoor
5-7 mm
(0.2-0.275in)
Wall
5-7 mm
(0.2-0.275in)
OutdoorIndoor

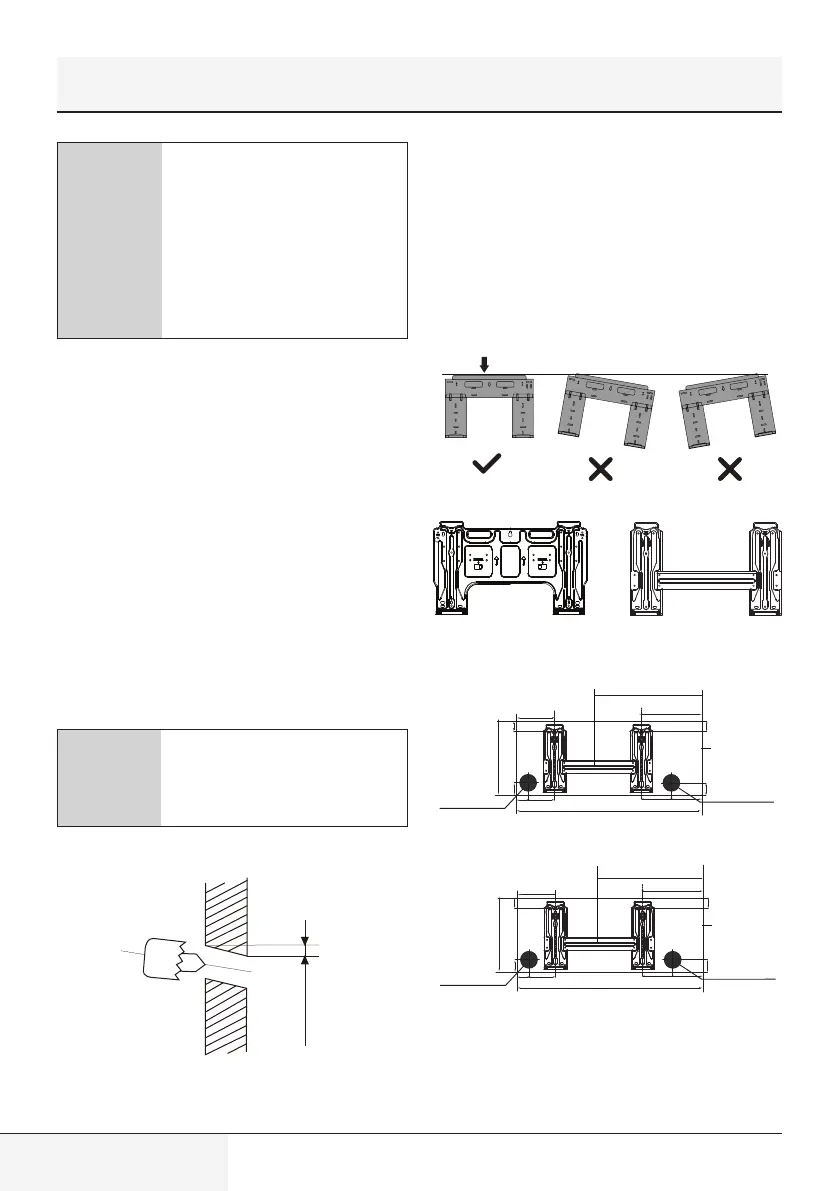

4.2.2 Mounting plate dimensions
Different models have different mounting plates.
For the different customization requirements,
the shape of the mounting plate may be slightly
different. But the installation dimensions are the
same for the same size of indoor unit. See Type A
and Type B for example:
Correct orientation of Mounting Plate
Correct orientation of mounting plate
Type A
Type B
Type A Type B
Left rear wall hole
65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Indoor unit
outline
39mm
(1.5in)
39mm
(1.5in)
285mm (11.2in)
47mm
(1.85in)
47mm
(1.85in)
Model A
148mm(5.8in)
45mm(1.7in) 103mm(4.1in)
715mm(28in)
107mm(4.2in)
130mm(5.1in)
237mm(9.3in)
402mm(15.8in)
Model B
230mm(9.1in)
246mm(9.7in)
185mm(7.3in)
139mm(5.5in)
805mm(31.7in)
411mm(16.2in)
Left rear wall hole
65mm (2.5in)
Right rear wall hole
65mm (2.5in)
Indoor unit
outline
39mm
(1.5in)
39mm
(1.5in)
285mm (11.2in)
47mm
(1.85in)
47mm
(1.85in)
45mm(1.7in)
107mm(4.2in)
