EN / 13

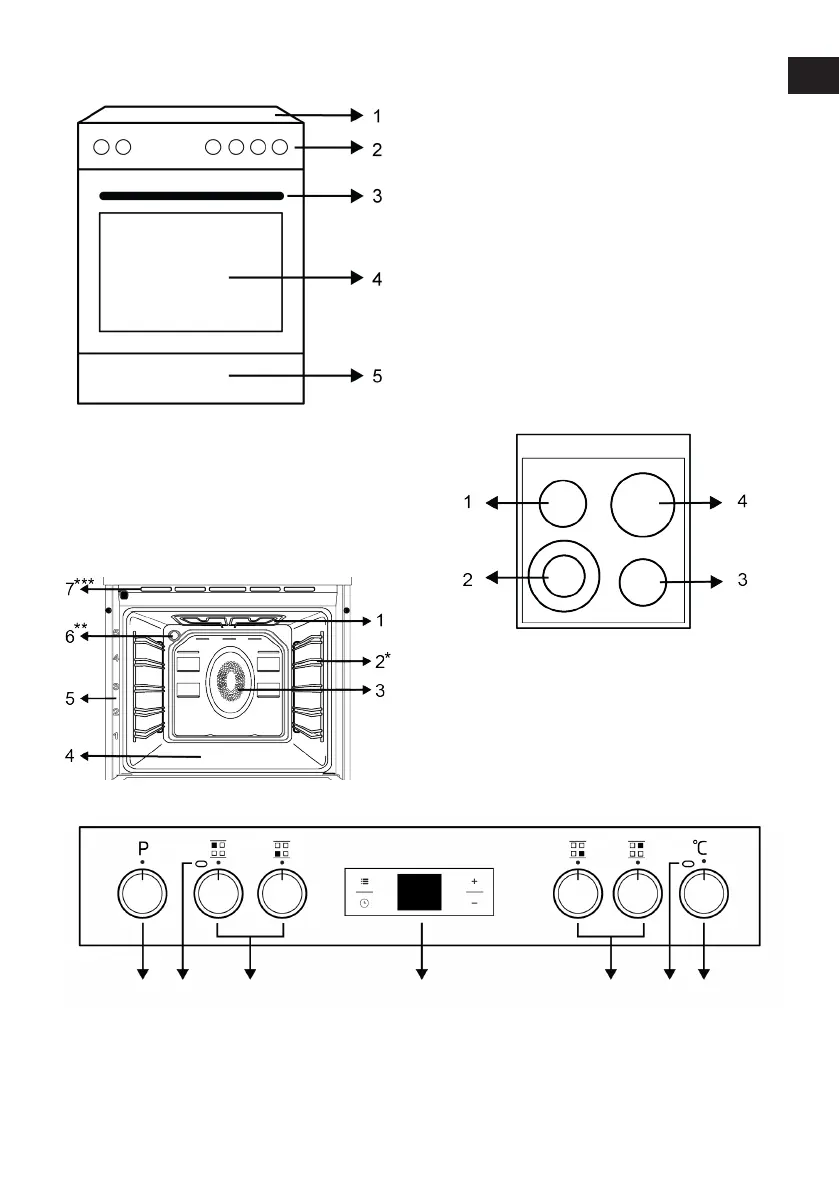

3.1 Product Introduction
1 Hob section
2 Control panel
3 Handle
4 Door
5 Bottom part
3.1.1 Cooking unit
1 Upper heater
2 Wire shelves *
3 Fan motor (behind the steel plate)
4 Lower heater (under the steel plate)
5 Shelf positions
6 Lamp **
7 Ventilation holes ***
* Varies depending on the model. Your product
may not be equipped with a wire rack. In the im-
age, a product with wire rack is shown as an ex-
ample.
** Varies depending on the model. Your product
may not be equipped with a lamp, or the type
and location of the lamp may differ from the il-
lustration.
*** It varies depending on the product model. It
may not be available on your product.
3.1.2 Hob section
1 Rear left - Single cooking zone
2 Front left - Multiple cooking zone
3 Front right - Single cooking zone
4 Rear right - Multiple cooking zone
3.2 Introduction of the oven control
panel
1 2 3 4 5 6 7
EN
DE
