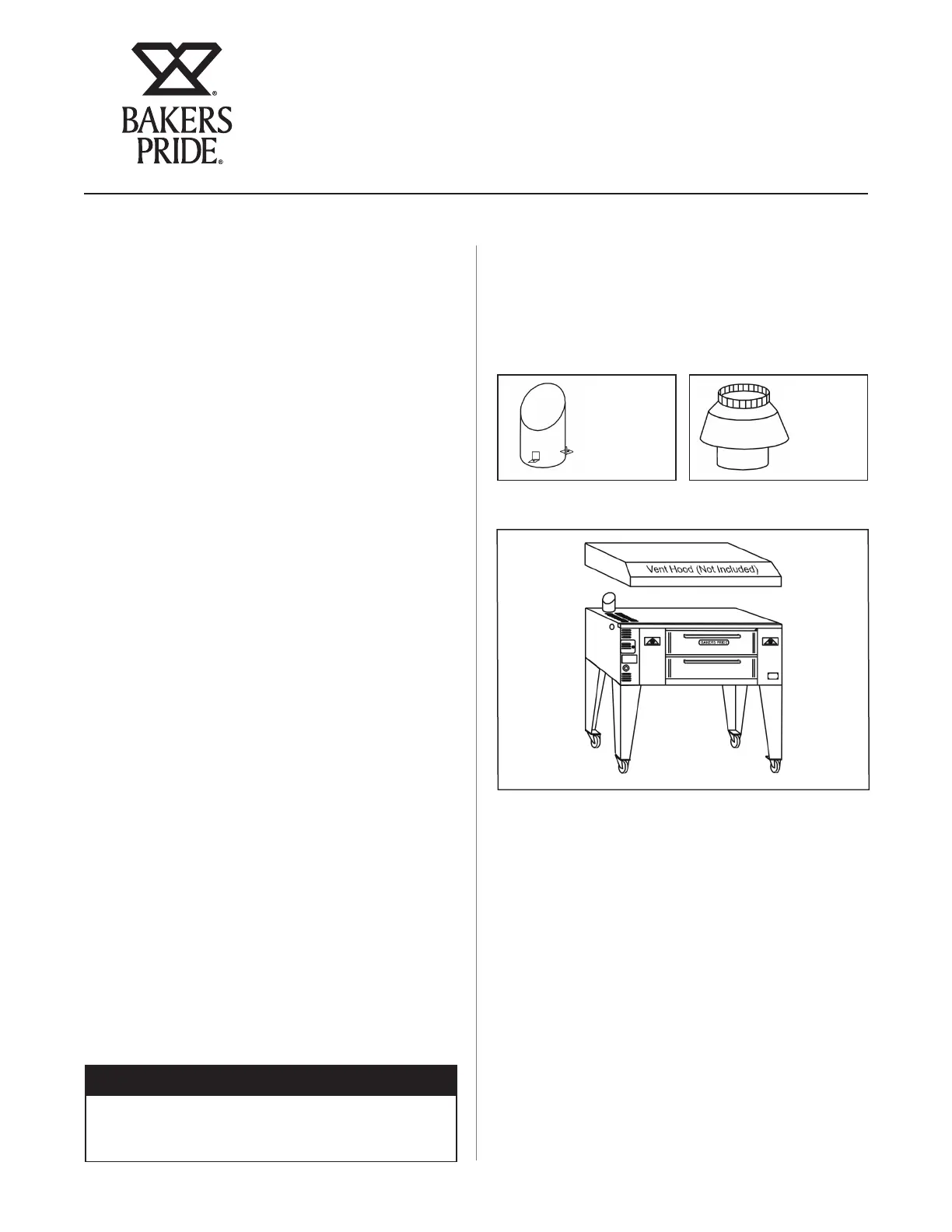

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
6
INSTALLATION INSTRUCTIONS
(h) The gas pressure regulator is part of the
combination valve and is adjusted to yield
a pressure of 3.5”water column (9mbar) for
Natural Gas. If the oven is ordered for use on
Propane Gas, the pressure regulator in the
combination valve is preset at the factory to yield
a pressure of 10” water column (25 mbar). Units
for use on Propane Gas are not available for
European Community Countries.
(i) A separate shut-off valve for each oven must be
provided. It should be as close as possible to
the place where the gas supply line goes into
the oven. It must be located such that it is easily
accessible.
(j) When stacking with another oven, two shut-off
valves, one for each of the two ovens, must be
provided.
After the Gas Supply has been connected, it is
extremely important to check all the piping for leaks.
Use a soap and water solution or a product expressly
made for this purpose. Do not use matches, candles
or a flame etc to check leaks since these methods are
extremely dangerous.
Flue Connection - Ventilation:
(A) Installation Under Ventilation Hood (Standard):
If the oven is installed under a collection hood,
use the flue diverter (Fig.1) supplied. Local
inspectors and ventilation and environmental
specialists should be consulted so that the
design and the installation of the hood conforms
to the local/ municipal codes (see Fig.3).
(B) Direct Venting (Optional) Not Available For
European Community Countries:
If direct venting, it is necessary to install a draft
hood (Fig.2). The flue pipe from the draft hood
must not run downwards at any point from the
oven to the final outlet. It should always slant
slightly upwards. For best results it should rise
straight up.
If the flue runs directly to the free air outside the
building, use a wind deflector or a UL listed vent cap
at the end of the flue pipe. Termination of the vent
must be at least 2 feet above the highest part of the
roof within 10 feet (Ref: American Gas Association
Catalo No.Xh0474).
Do not put a damper in the flue and do not
connect a blower directly to the flue.
NOTICE
Flue
Diverter
(For use w/
Collection
Hood)
Figure 1
Draft Hood
(For use
w/Direct
Venting)
Figure 2
Figure 3
Main Burner Safety Pilot Operation:
The purpose of the safety pilot system is to lock the
gas supply to the main burner at the combination
valve, if for any reason the pilot burner is not lit. Oven
should be relighted by following the steps given
below. However, in normal service, the pilot flame
stays lit indefinitely, day and night or weekends. This
prolongs the life of the safety valve.
The safety pilot valve is in effect a two-stage control.
After initial lighting, the pilot burner stays on without
the gas cock dial being held pressed in. After 1-2
minutes, the valve opens fully to let the gas flow past
the safety pilot valve into the burner system.
