Cleaning
Your Baby Lock will operate at best performance if it is kept clean at all times. The serger's cutting
action creates more lint than you find on a conventional sewing machine.
The sergers major moving parts are well protected and do not need to be oiled. We recommend
that you use the cleaning brush often during use in order to keep lint off the blades, the needle
bar, the feed dog mechanism and loopers. Schedule regular appointments with an authorized
Baby Lock retailer for routine maintenance for your machine.
TO REMOVE NEEDLE PLATE PROCEED AS FOLLOWS:
1. For safety reasons, unplug main power cord.
2. Raise and remove presser foot.
3. Set stitch length dial to rolled hem setting.
4. Remove needles from needle clamp.

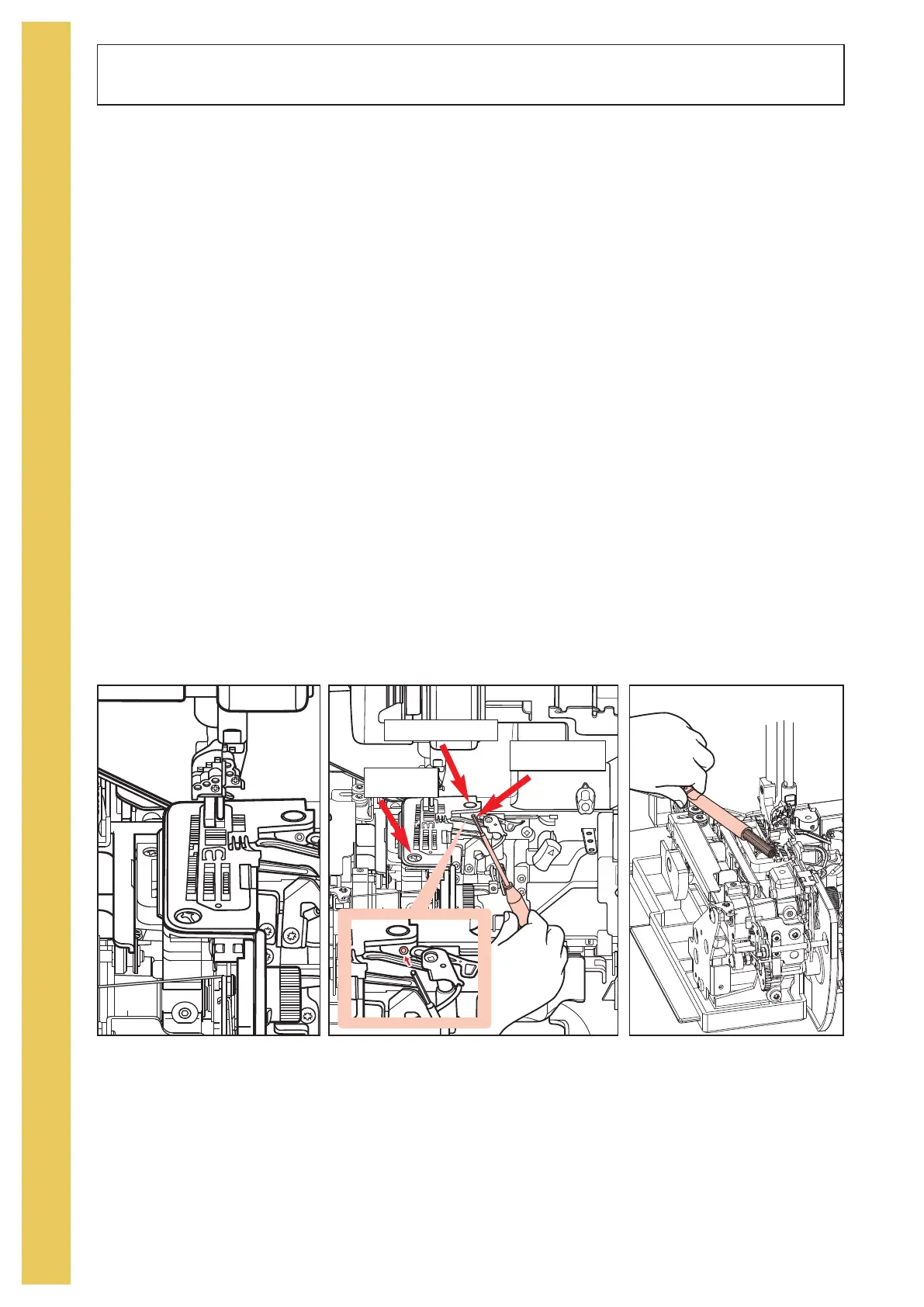

5. For easy access to the needle plate lock pin set screw, lower needle clamp to its lowest posi
-
tion (fig. A).
6. Place Allen screwdriver (1.5mm) into Allen screw and loosen needle plate pin holder screw
(fig. B for location of screw)
7. Remove needle plate lock pin (fig B) and remove needle plate front screw (left arrow in fig B).
8. Open left side cover of machine and remove the needle plate.
9. Clean accumulated dust, lint and threads from machine (fig. C).
10. Place needle plate onto machine and insert needle plate lock pin holder screw.
11. Tighten allen screw, needle plate lock pin and check and make sure that top of the needle
plate lock pin is flush with needle plate.
12. Replace needle plate front screw and tighten.
NOTE: For better stitch performance, make sure needle C-1, C-2 and C-3 do not touch either side
of needle plate hole.
