To Change the needle

1. Move the needle bar to the UP position by pressing the Needle Up/Down control on the

handlebar.

2. Turn o all power to the machine.

3. Loosen the needle bar clamp screw

with the 2.5mm hex wrench.

4. Remove the old needle by pulling it

down. Discard the old needle in a

safe way.

5. With the scarf of the needle

(indentation at the back of the needle

just above the needle eye) facing

the rear of the machine and the long

groove down the front of the needle

facing the front of the machine, push

the needle all the way up into the

needle bar until it stops. Use the sight

hole in the needle bar to verify the

needle is fully inserted and cannot go

up any further.

6. If the needle is not all the way up, the machine timing will be o and it may be possible for

the needle to collide with internal parts, causing damage not covered by warranty.

7. Carefully tighten the needle bar clamp screw.

U CAUTION: Although you can use your ngers to ghten the needle bar clamp screw, we recommend

that aer nger-ghtening the screw, you use the 2.5mm hex wrench to ghten it just a bit more.

The Gallant XL Staonary quilng machine runs at very high speeds and this ensures the needle will

not loosen while quilng. However, do not over-ghten the needle clamp screw, as this may strip

the threads of the screw. (Stripped threads are not covered under the warranty.) Once the screw no

longer turns freely by hand, gently turn the hex tool unl the screw is ghtened snuggly.

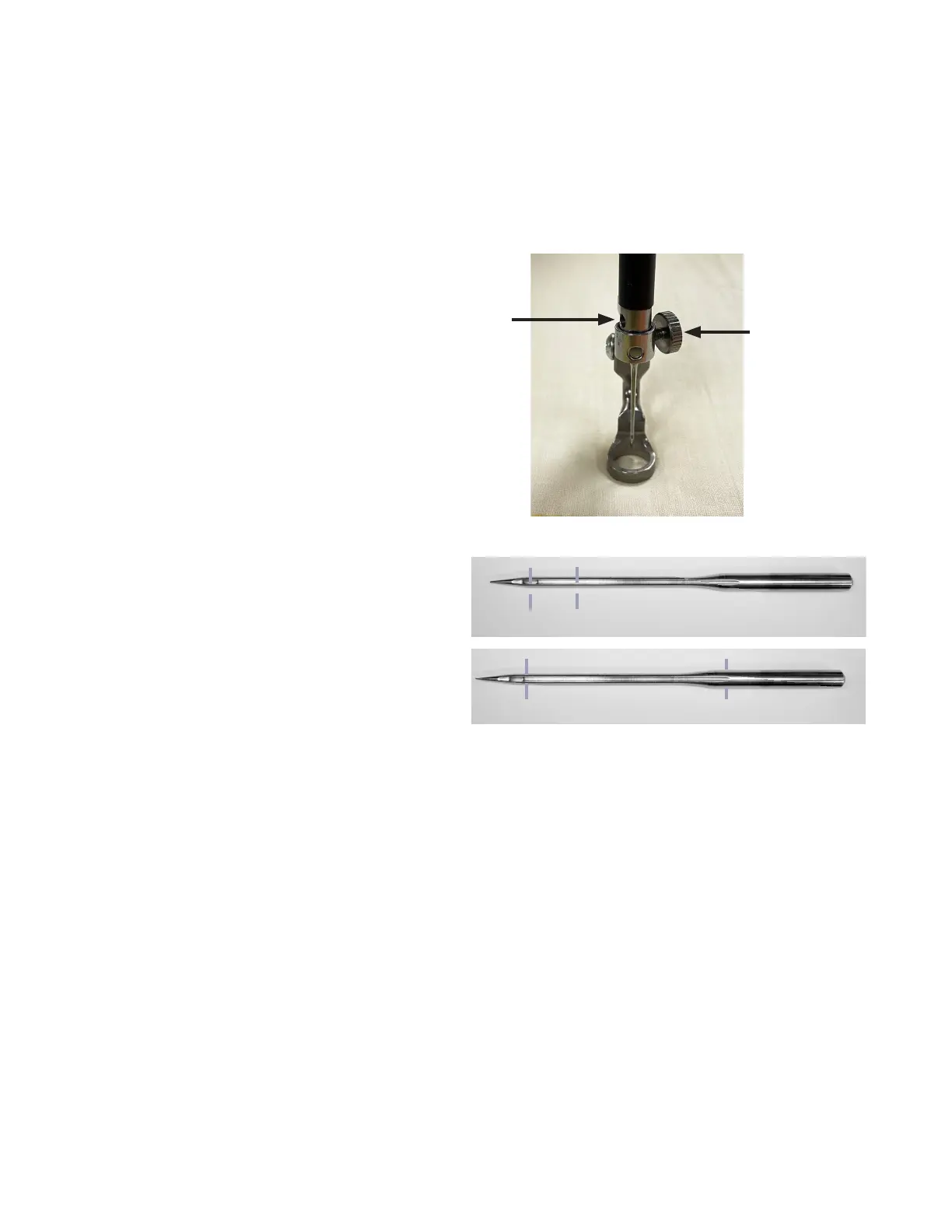

Sight

hole

Needle bar

clamp screw

Scarf at back of needle just above eye

Long groove at front of needle - shoulder to eye
