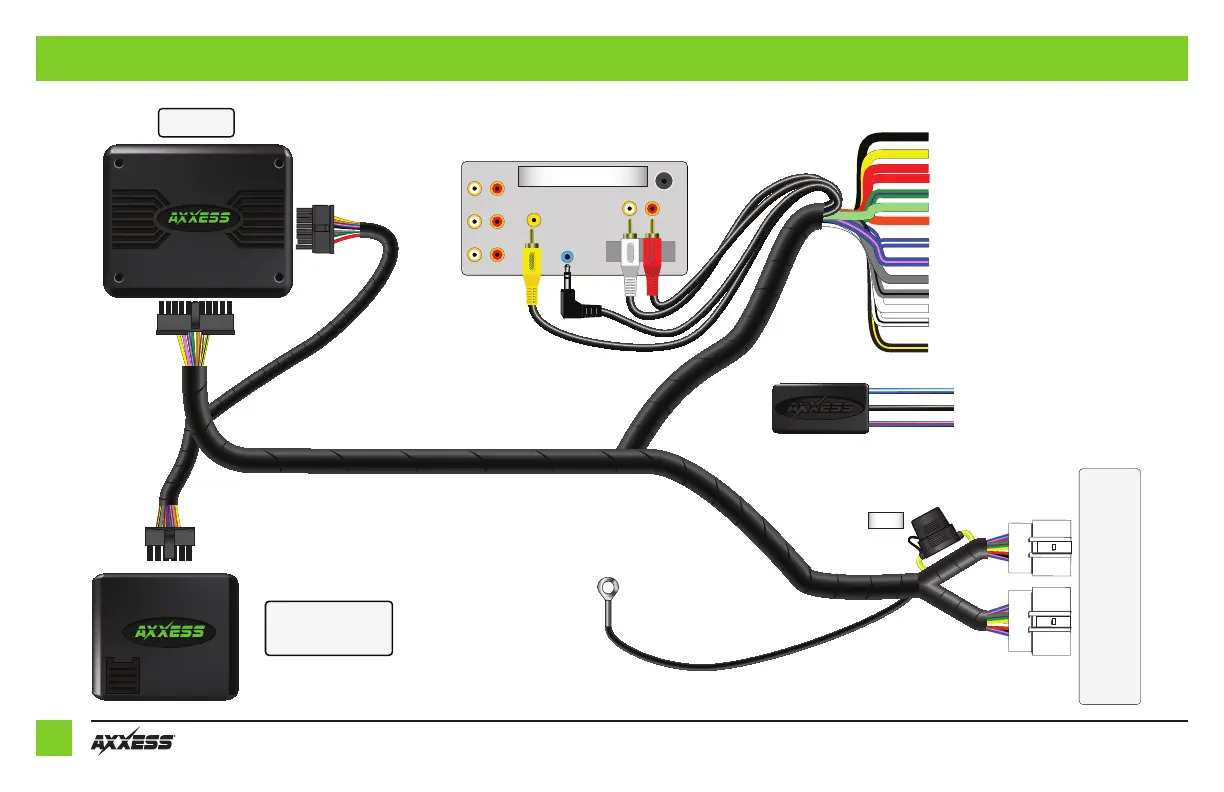

CONNECTIONS: LD-AXTO-MAX
Black - Ground wire
Yellow - Battery wire
Red - Accessory power (6v Camera)
Green/Purple - Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue/White Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Black/Yellow - Chime level adjustment
Front
Rear
Sub
AUX-IN
Rear View
SWC
16 Way
LD-AXTO-MAX
22 Way
12 Way
Fuse
AFTERMARKET RADIO
CARSIDE CONNECTORS
TO CHASSIS GROUND
CAR
Steering Wheel
Control (AXSWC)
(Sold Separately)
Interface
AXCSD-6V
Blue/White - Reverse trigger
Black - Chassis ground
Blue/White - Camera power
*
Accessory power can also be used if
the radio has the option to monitor
the camera while in motion.
*
