AXTC-LN30
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/14/23 INSTAXTC-LN30
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION:
With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE:
Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES

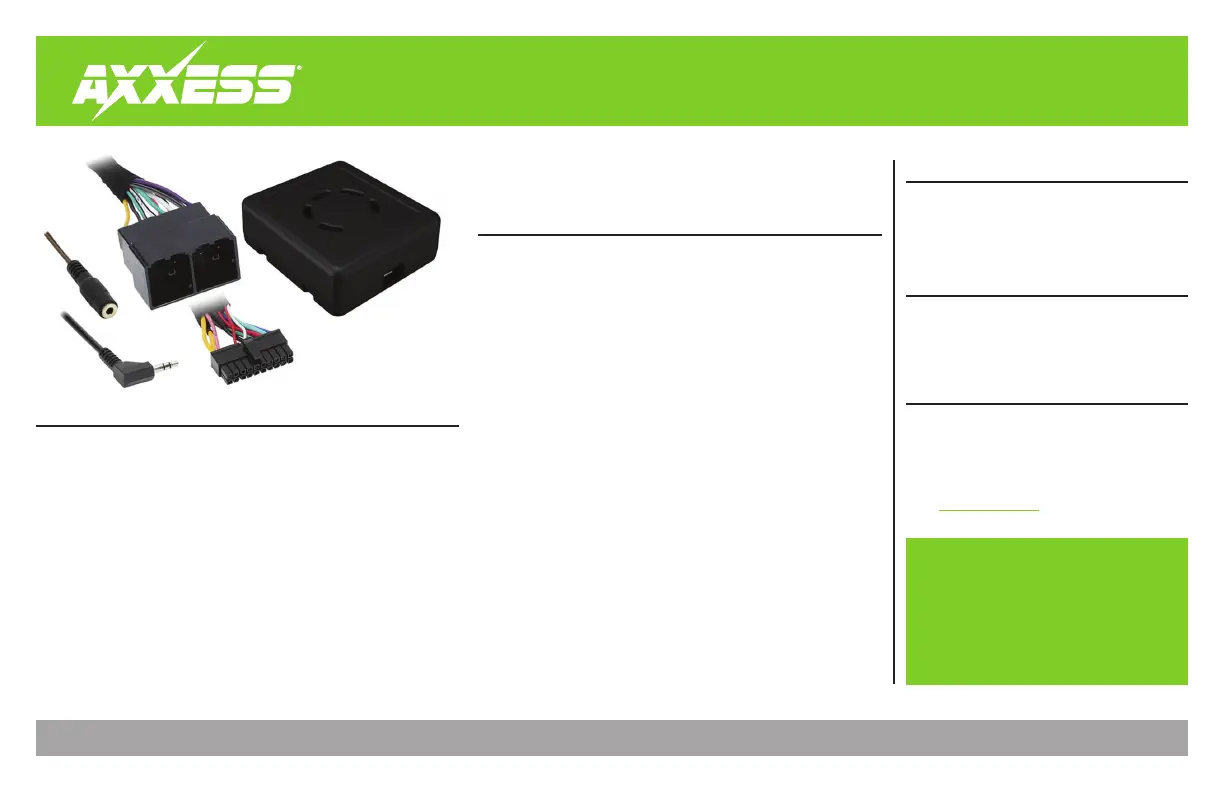

INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
GM Data Interface with SWC 2019-Up
APPLICATIONS
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed sense
outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
Chevrolet
Blazer (1)** .............................2019-Up
Camaro (2)** ..........................2019-Up
Cheyenne (2)** ....................2019-2021
Colorado (2) ...........................2019-Up
Equinox (2)** .........................2019-Up
Malibu (3)** ...........................2019-Up
Silverado (2)** .....................2019-2021
Volt ................................................ 2019
GMC
Acadia (4)** ...........................2019-Up
Canyon (2) ..............................2019-Up
Sierra 1500 (2)** ..................2019-2021
Terrain (5)** ...........................2019-Up
Cadillac
XT4...........................................2019-Up
• AXTC-LN30 interface
• AXTC-LN30 harness
• 3.5mm adapter
(1) IOT or IOU code radio †
(2) IOS or IOT code radio †
(3) IOU or IOS code radio †
(4) IOU code radio †
(5) IOS, IOT, or IOU code radio †
** For extension, use AXEXH-GM30
† The radio code can be found in the Service Parts Identification Label located:
Glove box – Equinox/Terrain
QR only (see note) - Acadia/Blazer/Camaro/Canyon/Colorado/Malibu/Sierra/Silverado
Note: Newer model GM vehicles are transitioning to a QR style label. If the Service Parts
Identification Label is not located where listed, reference the Vehicle Certification Label
on the inside of the driver’s door opening for the QR code.
