3
REV. 3/31/23 INSTAXTC-LN29

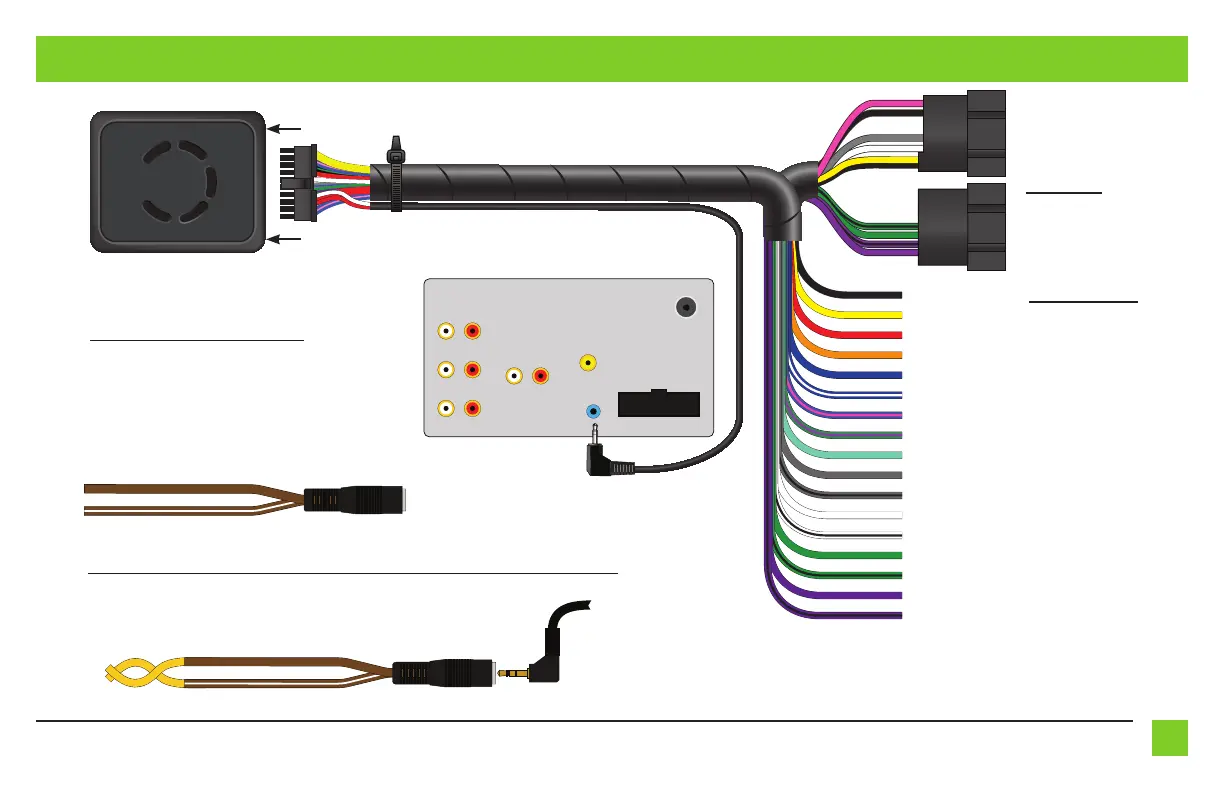

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-LN29 Harness
3) Program the AXTC-LN29 per the instructions on page 4. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue - Power antenna
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Vehicle
Connectors
Radio Connections
