2

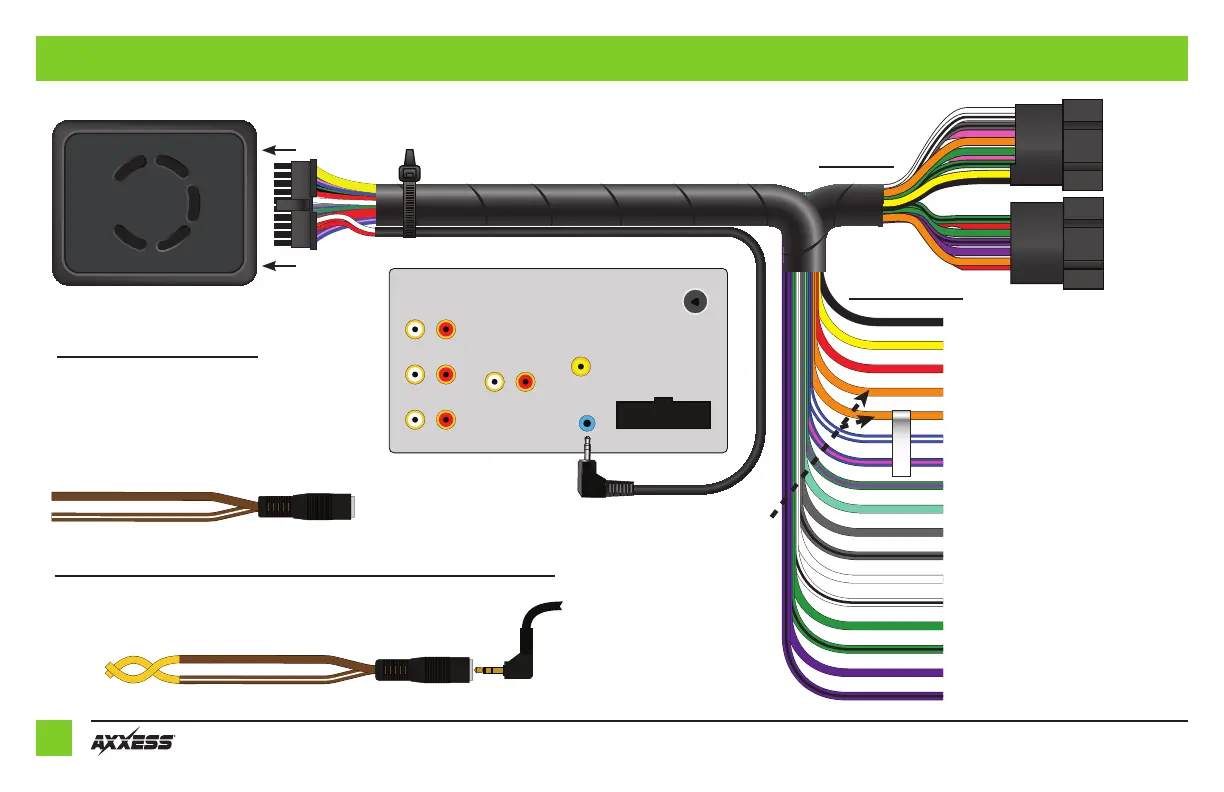

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
IFACE ILL
*IMPORTANT: Only use one Orange wire!
If either one of the Orange wires on the
main harnesses are populated on the
factory side, use the unlabeled Orange
wire. If not populated, use the Orange
wire labeled IFACE ILL.
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-LN11 Harness
3) Program the AXTC-LN11 per the instructions on pages 4 and 5. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination*
Orange (labeled IFACE ILL) - Illumination *
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Vehicle
Connectors
Reset Button
LED
Radio Connections
