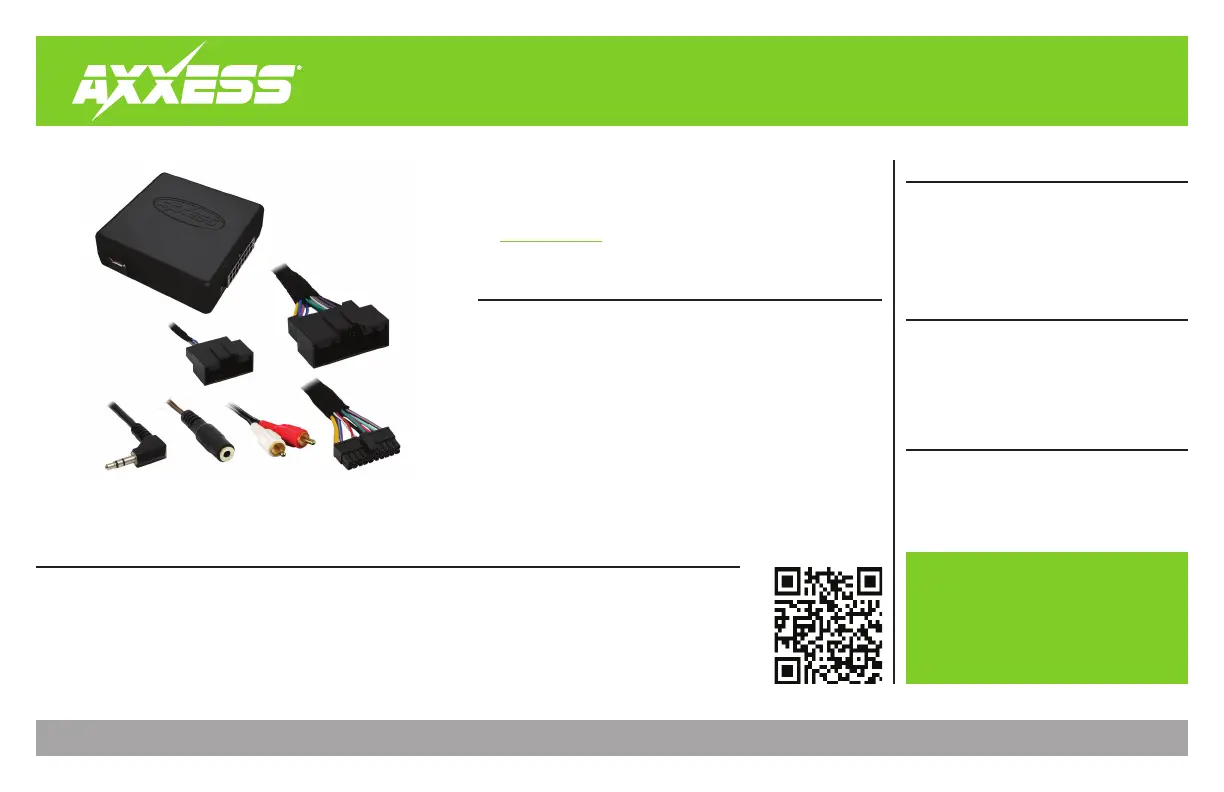

AXTC-FD2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/10/23 INSTAXTC-FD2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Ford SWC (Steering Wheel Control)
and Data Interface 2012-2020
APPLICATIONS
• Provides accessory power (10-
amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
•
Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
•
Retains the 3.5mm AUX-IN jack
• USB Micro-B updatable
• Includes 5V factory amplifier
step-down
Ford (1)
Escape ....................................2013-2016
Fiesta ......................................2011-2019
Focus ...................................... 2012-2014
Ranger ..................................2019-2020
Transit 150/250/350 .............. 2015-2019
Transit Connect ..................... 2014-2016
(1) This interface must be used along with the corresponding Metra radio-install-kit (sold separately)
• AXTC-FD2 interface • AXTC-FD2 harness
• 3.5mm adapter
• LD-AFDI-5V amplifier step-down
Visit AxxessInterfaces.com for more detailed information about the product and
up-to-date vehicle specific applications
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
