3
REV. 7/9/24 INSTAXTC-FD1

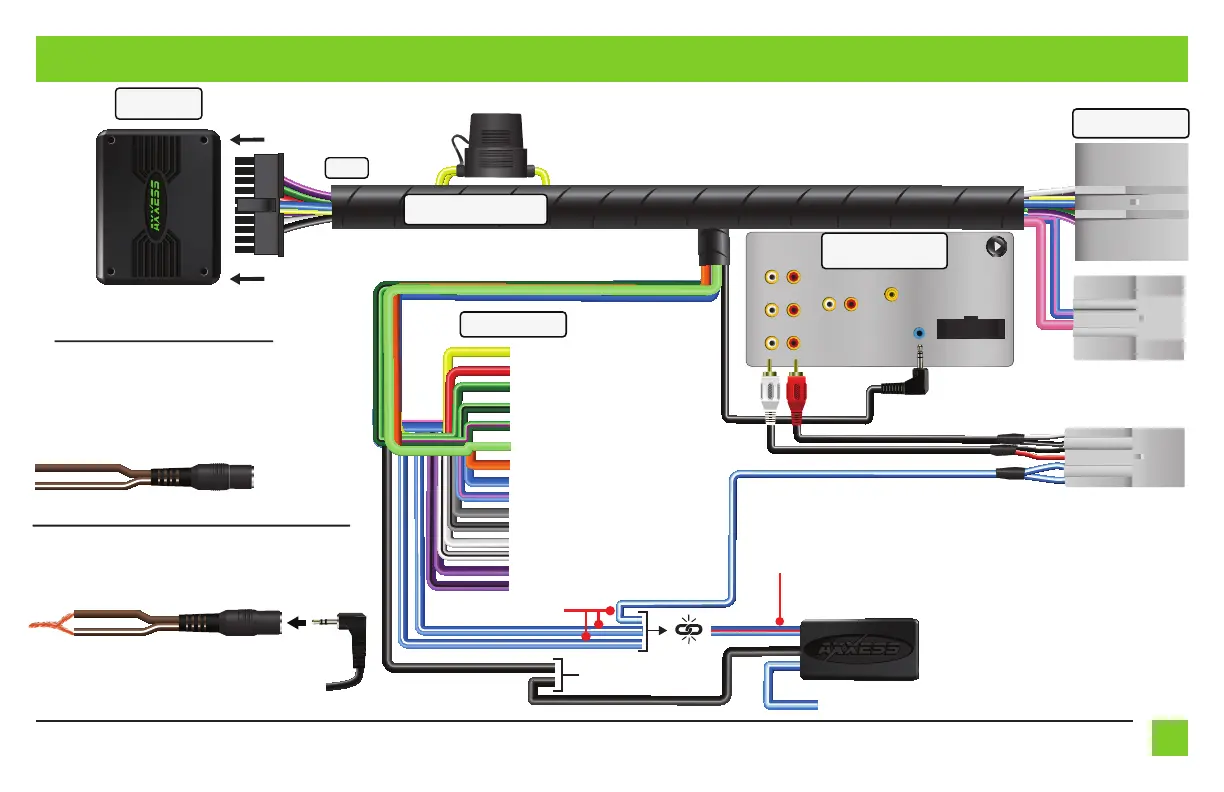

CONNECTIONS
Blue/Red - Blue/White
(x3) Blue/White Amp Turn-On Wires
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
LD-SWCX-5521
AFDI-5V
Blue/White - Amplier turn on from aftermarket radio
Black - Chassis ground
LED Light
Reset Button
Blue/White (x3) - Amp turn on
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
{
Universal
Radio
*
Key-A or SWC-1 -Brown
Key-B or SWC-2 -Brown/White
After programming, assign SWC buttons within radio menu
*
3.5mm Adapter for vehicles without Steering wheel controls
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together
with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the SWCX-5521 Harness
3) Program the SWCX-5521 per the instructions on page 4. Disregard steps 4 & 5
Blue - Antenna Turn On
Red - Accessory power
Yellow - Battery wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Vehicle Connectors
Radio Connections
Interface
20-Pin
