3
IFACE ILL
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter
(for aftermarket radios with wires for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-CL2 Harness
3) Program the AXTC-CL2 per the instructions on pages 4 and 5. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
REV. 7/18/25 INSTAXTC-CL2

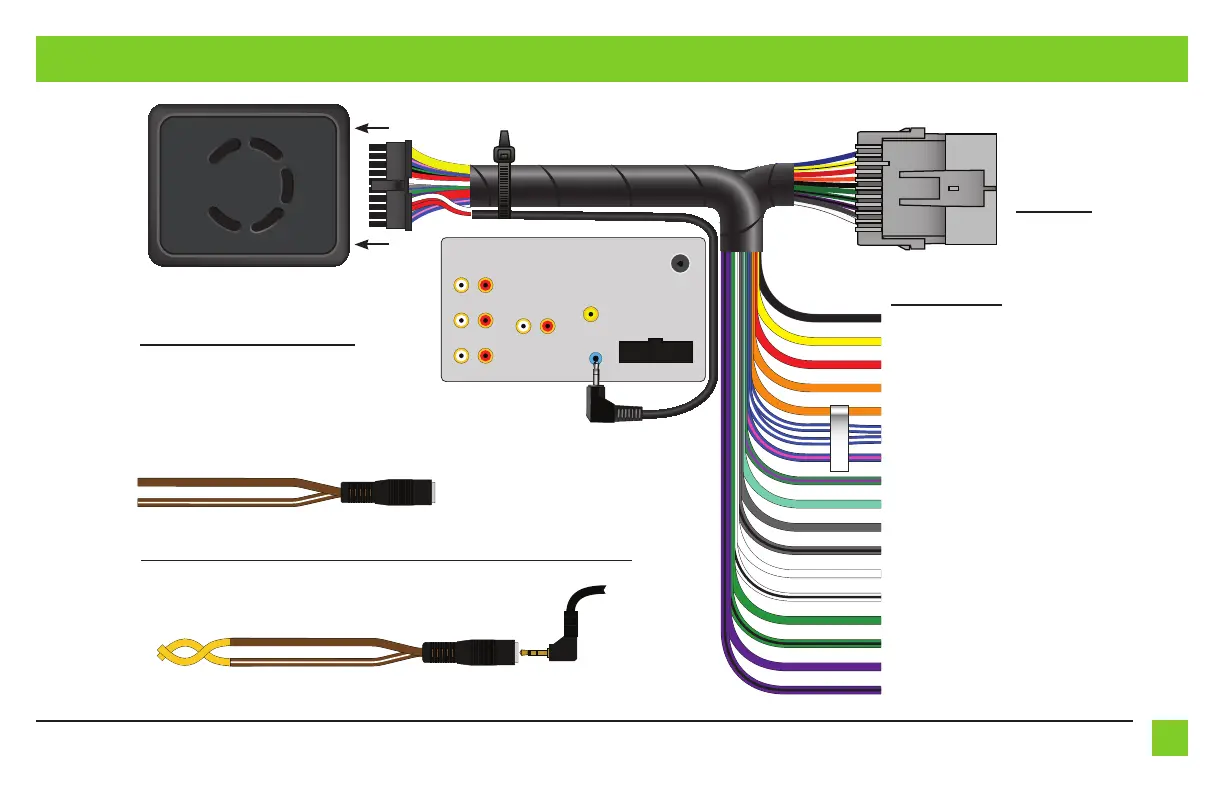

CONNECTIONS
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination *
Orange (labeled IFACE ILL) - Illumination *
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
Vehicle
Connector
