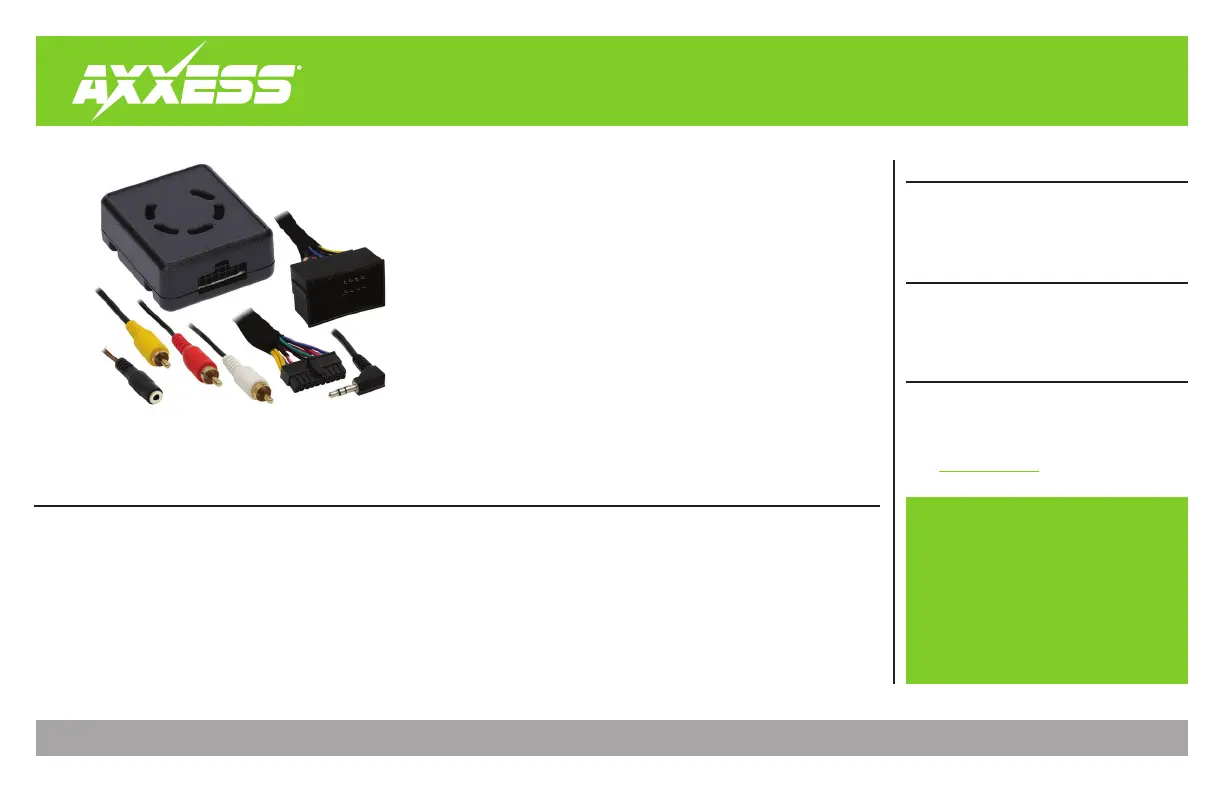

AXTC-CH5
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/7/23 INSTAXTC-CH5
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Chrysler SWC (Steering Wheel Control)
and Data Interface 2013-2023
APPLICATIONS
• Provides accessory power
(10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
•
Retains the factory backup camera
• Retains the 3.5mm AUX-IN jack
• Micro-B USB updatable
Chrysler
200 LX ............................................... 2015-2016
Dodge
Dart* .................................................. 2013-2016
Jeep
Cherokee Sport .................................. 2014-2016
Compass Sport ................................2017.5-2018
Ram
1500/2500/3500 (small screen, base radio)
............................................................ 2013-2018
Chassis Cab 3500/4500/5500 (small screen
Base radio) ....................................... 2013-2018
1500/2500/3500 (small screen, base radio)
.............................................2019-2023 (Classic)
Chassis Cab 3500/4500/5500 (small screen
Base radio) ........................2019-2023 (Classic)
• AXTC-CH5 interface
• AXTC-CH5 harness
• 3.5mm adapter
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
