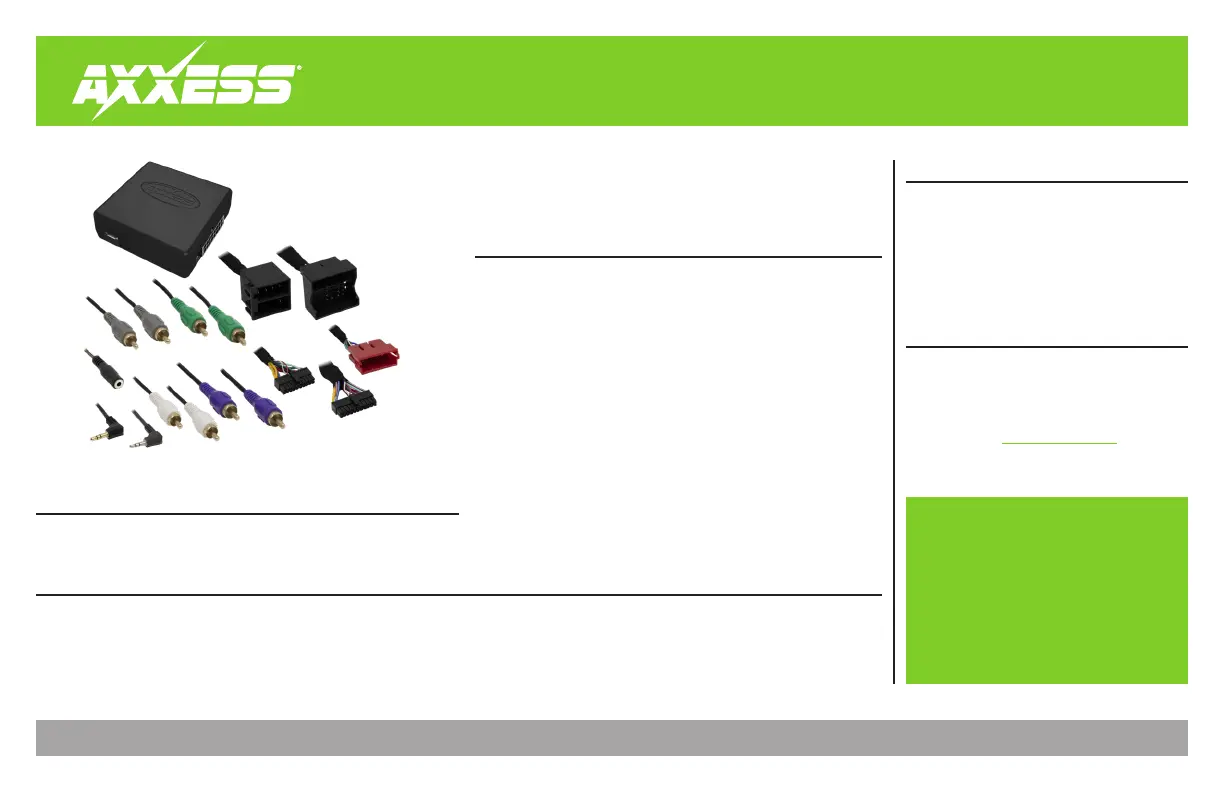

INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/19/25 INSTAXTC-A12
ATTENTION:
With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections
LD-AX-SWCX-AU1 ................................................2
LD-AX-SWCX-AU2 ................................................3
Programming .........................................................4
Troubleshooting.....................................................5
Data Interface with SWC
Fits Select Audi Models 2002-2013
• AXTC-A12 interface
• LD-AX-SWCX-AU1 Harness
• LD-AX-SWCX-AU2 Harness
• 3.5mm Adapter
APPLICATIONS
A3 ........................................................................................... 2006-2007
A4/S4 (with Symphony Radio, without NAV) .................... 2002-2006
A4/RS 4/S4 .............................................................................2007-2008
A4/RS 4/S4 (with NAV) ........................................................ 2005-2008
A4/RS 4/S4 (with Symphony Plus or NAV radio) ........................ 2006
A6 ..................................................................................................... 2004
Allroad ................................................................................... 2004-2005
TT (non-Bose) .........................................................................2002-2013
Visit AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
• Designed for non-amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Built-in features like SWC & Auto-Detect
• Auto-detect feature - automatically detects the vehicle type, radio
connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Designed to work with a major radio brands
• Can be manually programmed for most vehicles
• Retains settings, even after battery disconnection
• Provides 12-volt illumination output
• Retains balance & fade
• Micro “B” USB updatable
