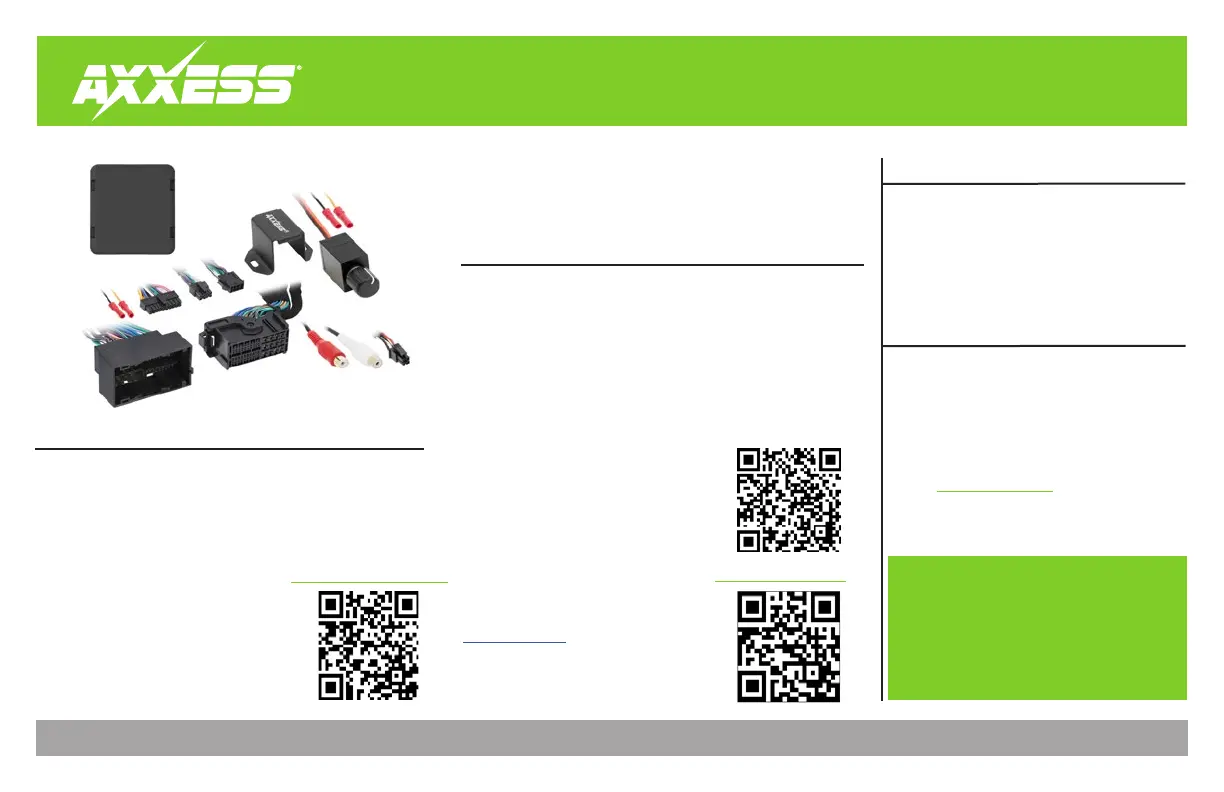

INSTALLATION INSTRUCTIONS
AXSUB-CH5
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/17/25 AXSUB-CH5
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE: Refer also to the instructions included with
the aftermarket radio.
TABLE OF CONTENTS
Connections.................................................................2
Programming..............................................................3
Testing..........................................................................3
Specifications...............................................................3
Troubleshooting..........................................................4
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties • Multimeter
TOOLS REQUIRED
INTERFACE COMPONENTS
• AXSUB-CH5 interface
• AXDSPX-CH5 vehicle T-harness (LD-DSP-CH5)
• Bass knob (LD-BASSKNOB)
• ANC-CHH2 ANC bypass harness
www.AxxessInterfaces.com
If the vehicle is equipped with Active noise
cancelation (ANC) microphones, they
will need to be bypassed. Please refer
to Axxessinterfaces.com for ANC bypass
harnesses offered for select vehicles.
INTERFACE FEATURES
Add-a-Sub Data Interface
Fits Select Chrysler Models 2013-2023
• Designed for amplified and non-amplified systems
• 2-channel non-fading 5V RMS output
• Fixed low-pass frequency of 234Hz
• 250mA remote turn-on output
• Bass knob included for level control of subwoofer amp
• Install done at radio location
• Micro “B” USB updatable
Visit AxxessInterfaces.com for more detailed
information about the product and up-to-date
vehicle specific applications.
www.MetraOnline.com
For Dash Disassembly Instructions, refer to
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
ANC-CHH2 info
