3
REV. 4/24/23 INSTAXSSO-FD
CONNECTIONS
These vehicles will connect to the wiring harness located at the climate control location
.
Ford
Bronco 2022
F-150 2015-Up
• Disassembly instructions: metraonline.com/part/99-5834CH
Fusion 2015-Up
• Disassembly instructions: metraonline.com/part/99-5841B
Edge 2015-2020
• Disassembly instructions: metraonline.com/part/99-5851CH

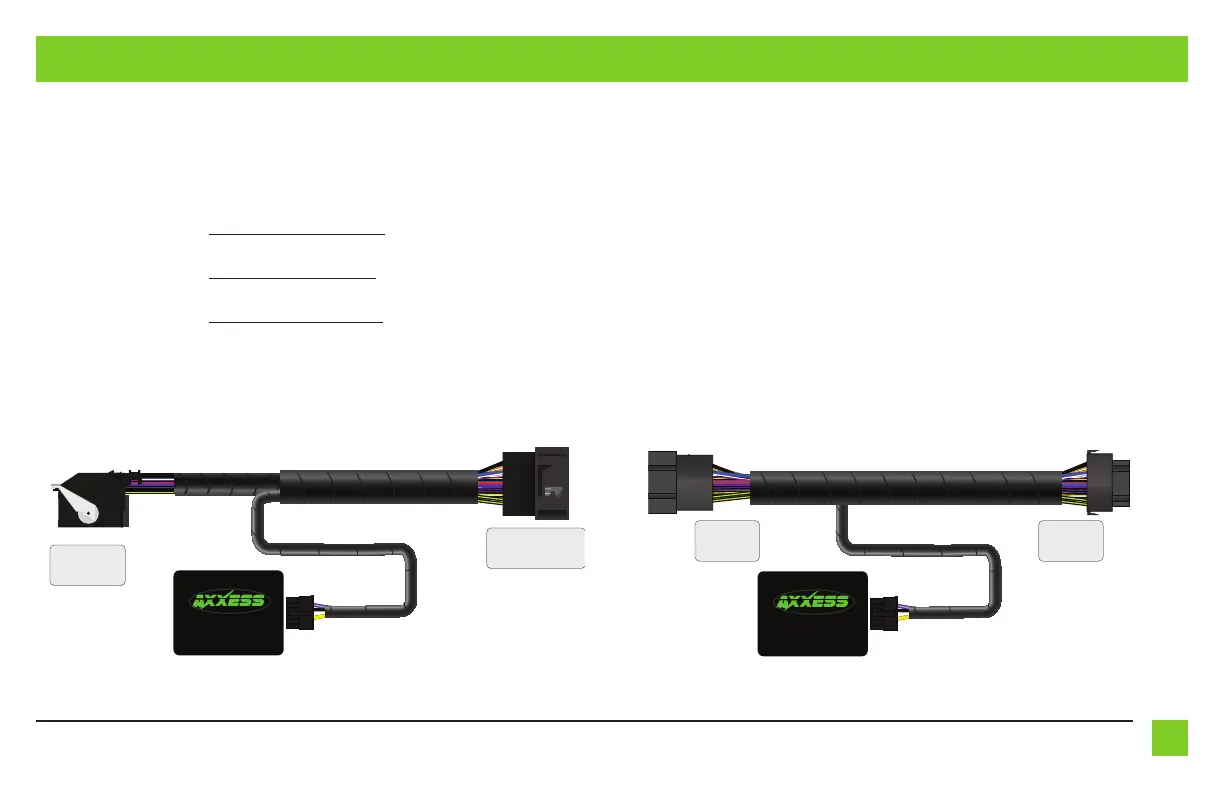

From the wiring harness in the vehicle behind the radio:
1. Unclip the connector located behind the climate control.
2. Replace it with the connector from the AXSSO-FD harness, and then connect the other end to the
climate control harness. (Figure A)
3. Plug the AXSSO-FD harness into the AXSSO-FD interface. (Figure A)
These vehicles will connect at the OBD2 connector, located inside the driver’s side dashboard
.
Ford
Escape 2017-Up
Focus 2016-Up
From the OBD2 connector in the dash:
1. Disconnect the factory OBD2 connector from under the dash.
2. Plug the AXSSO-FD harness into the OBD2 connector.
3. Connect the AXSSO-FD harness to the wiring harness in the dash.
4. Plug the AXSSO-FD harness into the AXSSO-FD interface.
5. Zip tie the harness securely under the dash to avoid it from sagging.
To OBD2
Harness
To
Vehicle
To Climate
Control
To Climate
Control Harness
(Figure A)
(Figure B)
