REV. 05/27/25 INSTAXSSO-FD2
To OBD2
Harness
To
Vehicle
I N STALL ATI O N

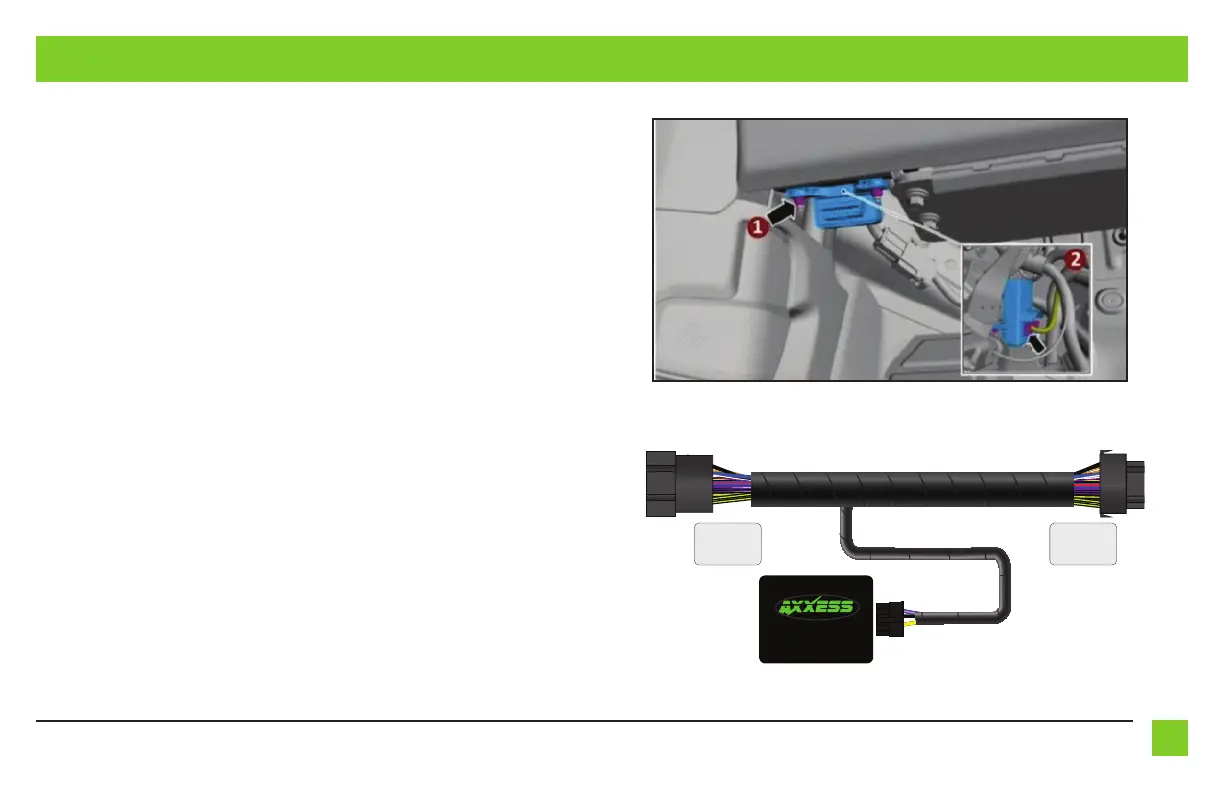

These vehicles will connect at the OBD2 connector, located under the driver’s side dashboard:
(Figure A)
(Figure B)
Ford
Bronco Sport .................2021
Escape ............................ 2020-2021
Explorer .........................2020-2021
Ranger ...........................2019-2021
Transit ............................ 2020-2021
Transit Connect .............2019-2021
From the OBD2 connector in the dash:
1. Disconnect the factory OBD2 connector from under the dash. (Figure A)
2. Plug the AXSSO-FD2 harness into the OBD2 connector.
3. Connect the AXSSO-FD2 to the wiring harness harness in the dash.
4. Plug the AXSSO-FD2 harness into the AXSSO-FD2 interface.
5. Zip tie the harness securely under the dash to avoid it from sagging. (Figure B
