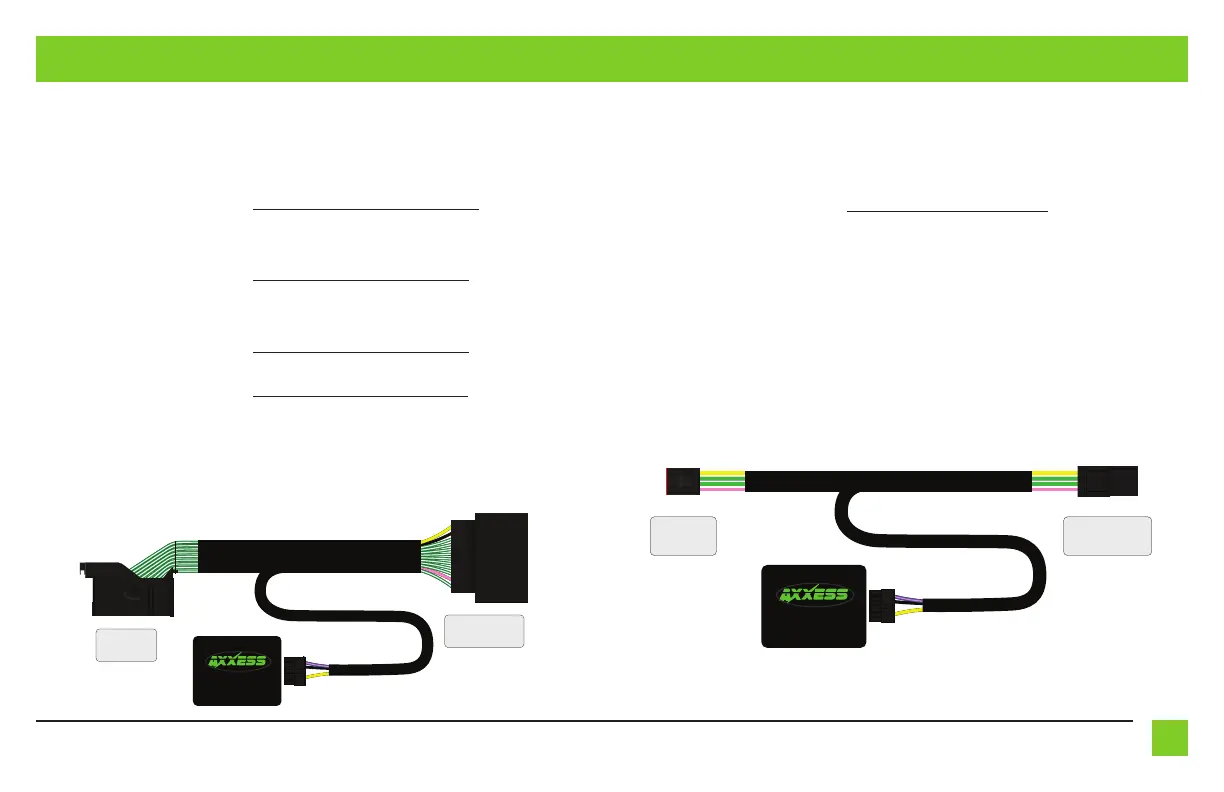

3
REV. 12/8/22 INSTAXSSO-CH
I N STALL ATI O N
These vehicles will connect to the wiring harness located at the radio location.
Chrysler
Pacifica 2017
• Disassembly instructions: metraonline.com/part/99-6543HG
Dodge
Durango 2016-Up
• Disassembly instructions: metraonline.com/part/99-6537B
Jeep
Cherokee 2016-Up
• Disassembly instructions: metraonline.com/part/99-6518B
Grand Cherokee 2015-Up
• Disassembly instructions: metraonline.com/part/99-6536S
From the wiring harness in the vehicle behind the radio:
1. Unplug the main connector from the radio.
2. Plug the AXSSO-CH harness in between the radio and radio harness.
3. Plug the AXSSO-CH harness into the AXSSO-CH interface.
These vehicles will connect to the hazard switch in the dashboard.
Chrysler
Pacifica 2018-Up
• Disassembly instructions: metraonline.com/part/99-6543HG
Jeep
Wrangler 2019-Up
• Disassembly instructions: N/A
Gladiator 2020-Up
• Disassembly instructions: N/A
From the hazard switch:
1. Unplug the connector from the hazard switch.
2. Plug the AXSSO-CH harness in between the hazard switch
and hazard switch harness.
3. Plug the AXSSO-CH harness into the AXSSO-CH interface.
To Hazard
Switch
To Hazard
Switch Harness
To
Radio
To Radio
Harness
