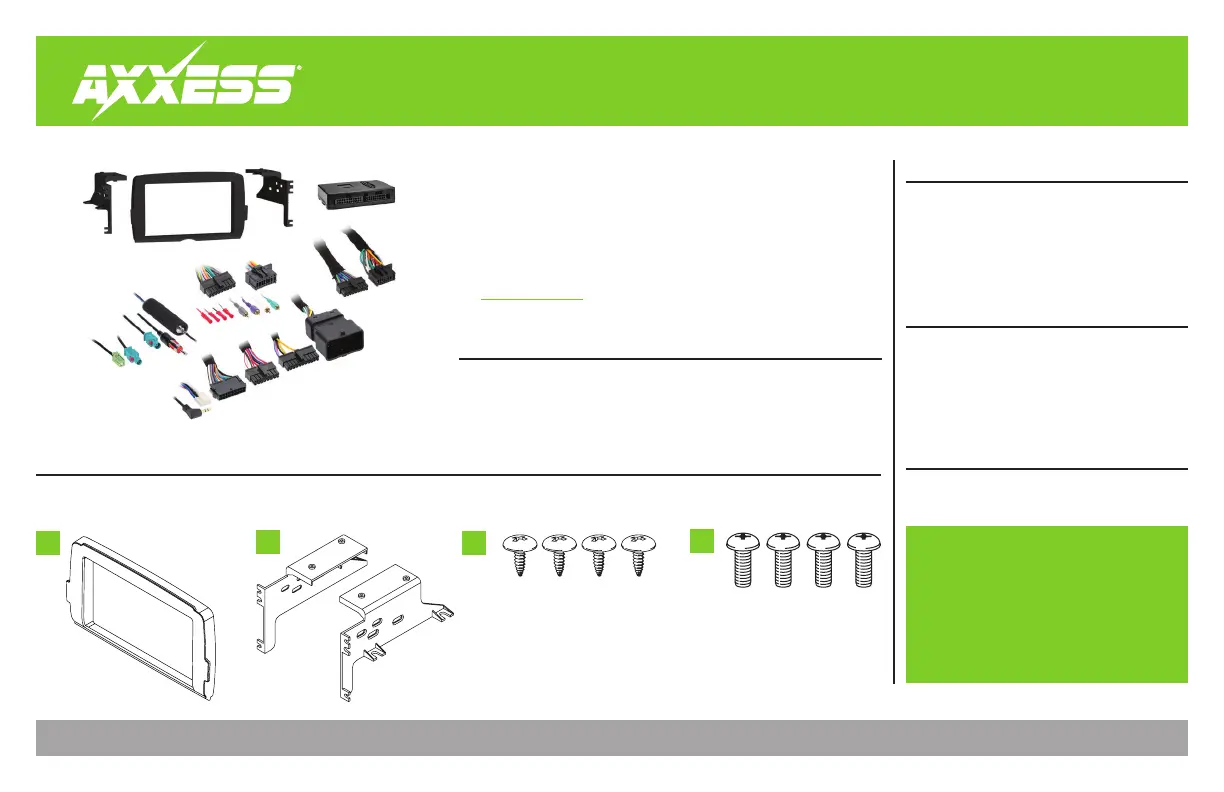

AXPIO-HD2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INSTAXPIO-HD2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TABLE OF CONTENTS
Fairing Disassembly .......................................... 2-3
Connections ........................................................4-6
Kit Assembly ..........................................................7
Radio Operations ............................................... 8-9
KIT FEATURES
• Designed for Pioneer DMH-WC5700NEX receivers
• Complete plug-n-play installation
• Includes dash kit with Axxess interface and vehicle-specific T-harness
(cont. on page 2)
*
Non-amplified models only
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications.
WIRING & ANTENNA CONNECTIONS (sold separately)
•
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx screwdrivers • Allen wrenches
Harley-Davidson Street Glide, Electra Glide,
Ultra, and Limited Models 2014-Up*
Road Glide 2015-Up*
KIT COMPONENTS
• A) Radio housing • B) Radio brackets • C) #8 x 3/8" Phillips screws (4) • D) #10-32 x 1/2" Phillips steel machine screws (4)
Not Shown: Radio Interface, LD-HD-PIO, AD-EU1, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA
A
B
C
D
Visit AxxessInterfaces.com for up-to-date
vehicle specific applications.
