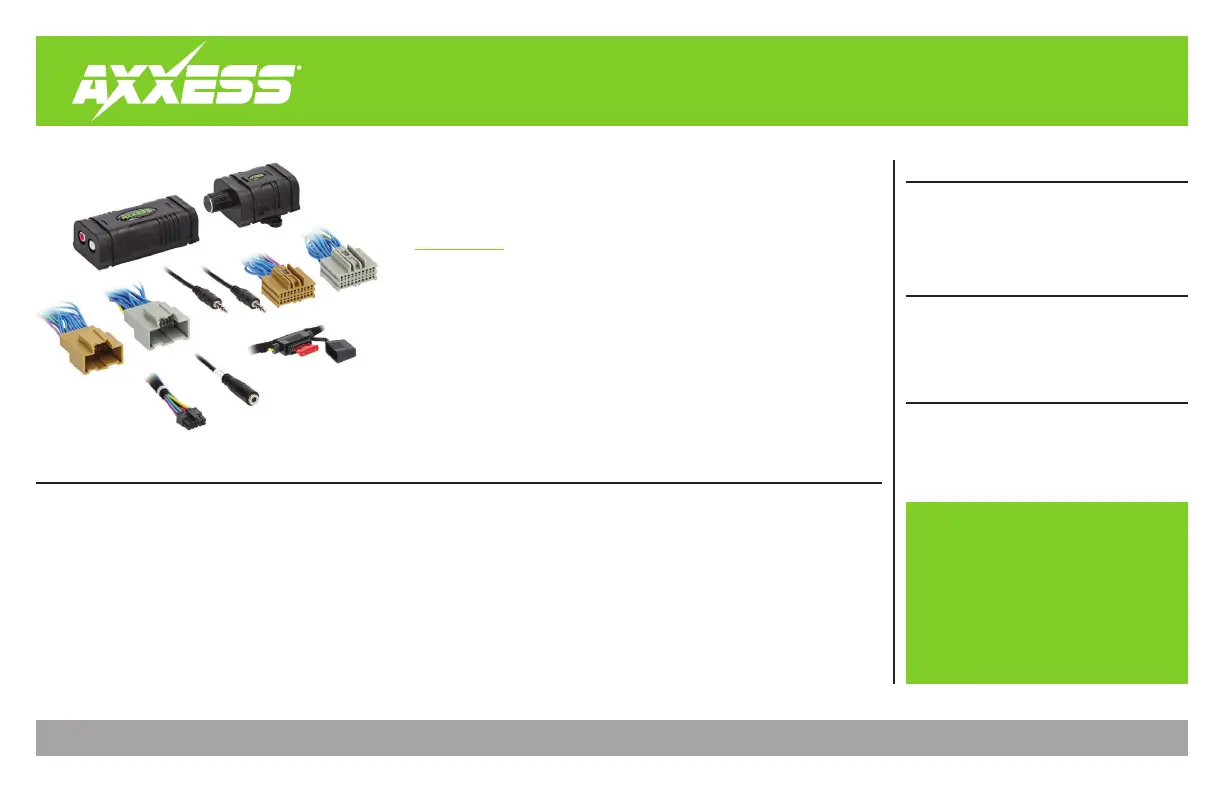

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

TABLE OF CONTENTS

Applications.............................................................1

Installation ............................................................. 2

Diagram .................................................................. 3

APPLICATIONS

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle speciﬁc applications

• Designed to provide (2) channels of low-level audio output from the factory system.

• Allows for the installation of an ampliﬁer for speakers or subwoofers.

• Gain Controller included to adjust the overall output.

• 12v-500mA remote wire activated with signal sense.

• 55-watts per channel

• Designed for non-ampliﬁed vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple ampliﬁers.

KIT COMPONENTS

• AXLOC-GMLN10 Wiring Harness

• Gain Controller

• 12v-500mA Remote Wire

• Auxiliary Cable

Chevrolet

Camaro (RPO IOB) 2016-2018

Colorado (RPO IOB) 2016-2018

Cruze (RPO IOA) 2016-2018

Equinox (RPO IOB) 2018-2018

Malibu (RPO IOA) 2016-2018

Silverado LD (RPO IOB) 2019-2019

Silverado (RPO IOB) 2016-2018

Silverado 2500/3500(RPO IOB) 2016-2019

Trax (RPO IOA) 2017-2020

GMC

Acadia (RPO IOB) 2017-2019

Canyon (IOB) 2017-2018

Sierra (RPO IOB) 2016-2018

Sierra Limited (RPO IOB) 2019-2019

Sierra 2500 / 2500 HD (RPO IOB) 2016-2019

For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide for Radio Install Kits.

GM LOC (Line Output Converter) AXLOC-GMLN10

(for Non-Ampliﬁed Vehicles)

2016-2020
