Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Orange - Illumination
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Blue/White- Amp Turn On
White/Green - TBD
White/Red - TBD
Front
Rear
Sub
AUX-IN
Rear View
SWC
BACKUP CAM
SUB
LD-ACD1
For NON-AMPLIFIED models ONLY
remove RCAs from the GREEN, GREEN/BLACK,
PURPLE, PURPLE/BLACK
GREY, GREY/BLACK,
WHITE & WHITE/BLACK Wire(s).
Green/Black - Rear left - speaker output
Green - Rear left speaker + output
Purple - Rear right + speaker output
White/Black - Front left - speaker
Purple/Black - Rear right - output
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
-Purple RCA
-Green RCA
-Gray RCA
-White RCA
Vehicle Connectors
Radio Connections
Interface
22-Pin
14-Pin
Vehicle Connectors
3.5mm Adapter (for aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
32 Pin
16 Pin
8 Pin
24 Pin
24 Pin
APPLICATIONS W/B
T
TOUCHSCREEN
W/NAVIGATION
LOCATION
CONNECTO
R
2013-2015
YES
YES
BELOW HAZARD BUTTON, ABOVE
POCKET
32 PIN
2013-2015
NO
YES
BELOW HAZARD BUTTON, ABOVE
POCKET
32 PIN
2013-2017
NO
NO
AT RADIO
16 PIN
HANDS
FREE
MODULE
LOCATION
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
2
REV. 5/19/25 INSTAXHN-3
2

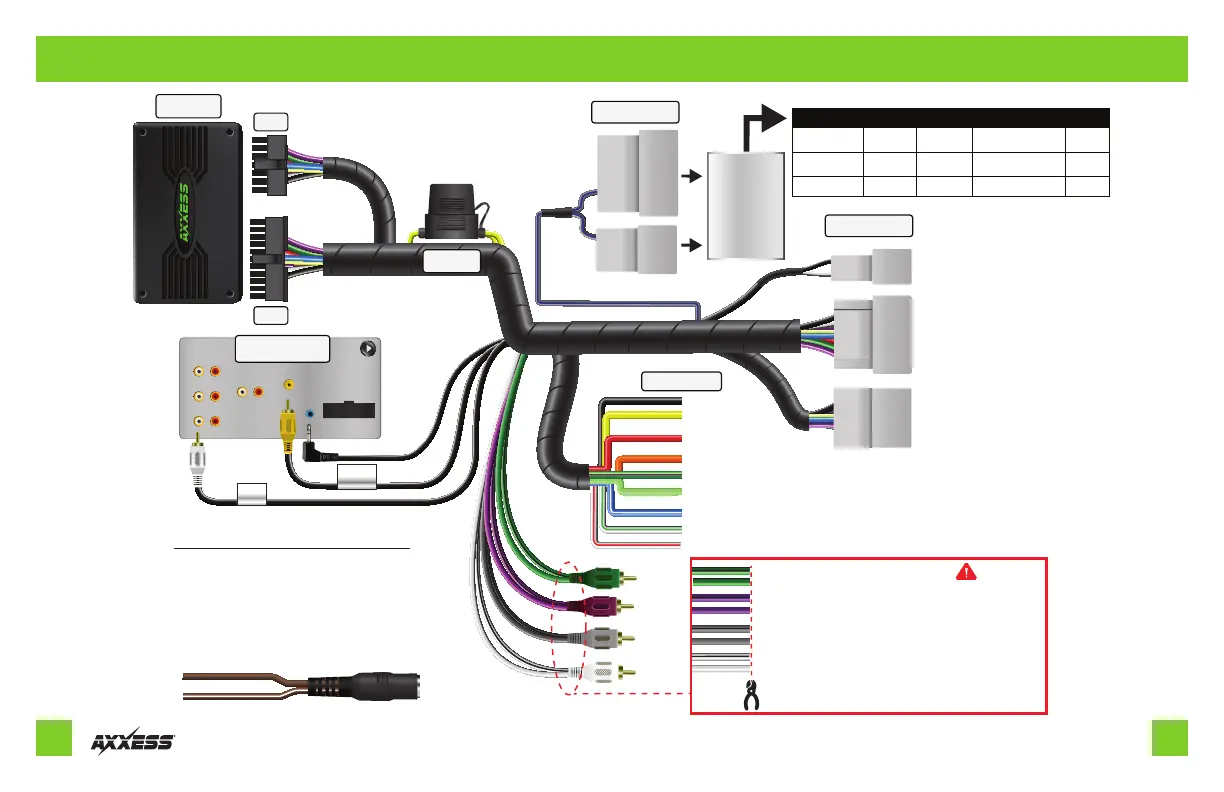

INTERFACE CONNECTIONS: LD-ACD1
