3
REV. 6/19/23 INSTAXEU-MOST25

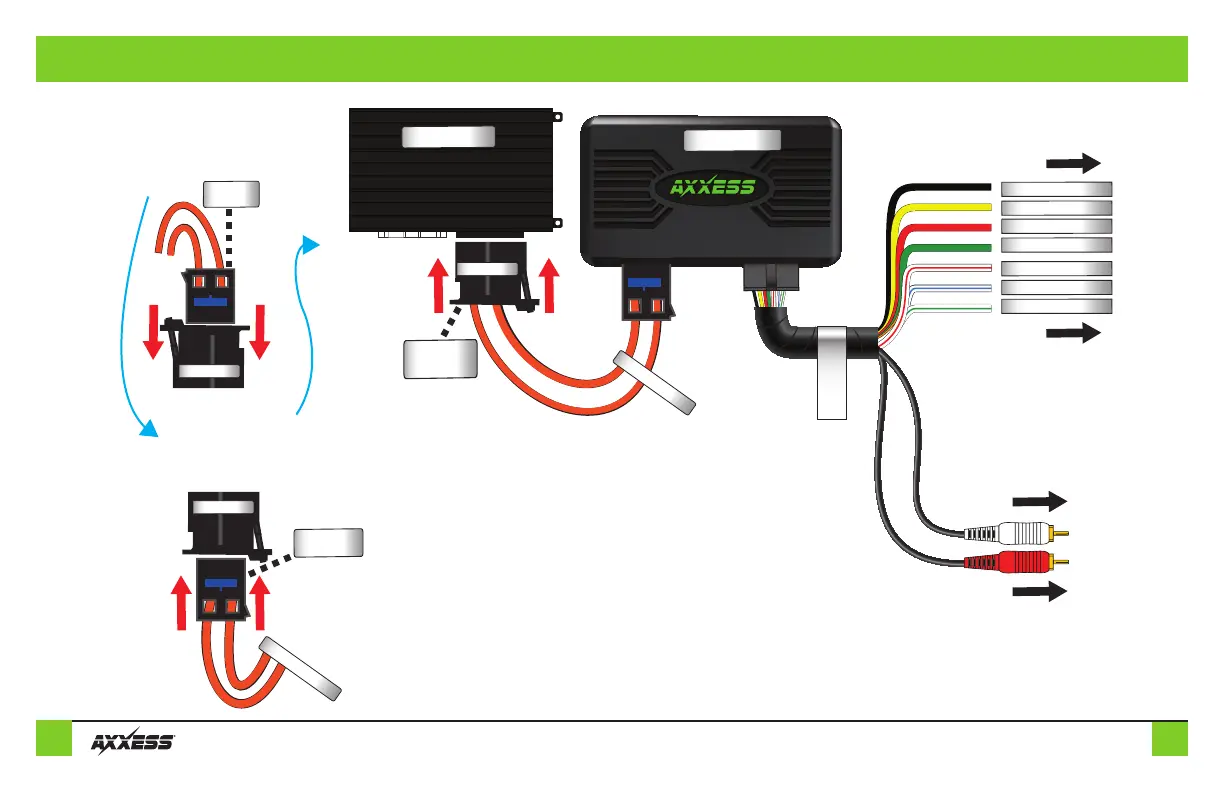

TO RADIO
Black - Ground
Yellow - Constant
Red - Accessory
Green - Amp level control
*
White/Red- TBD
White/Blue -
TBD
White/
Green -
TBD
AXEU-MOST25
LD-MOST25
Front
Audio Output
from
Aftermarket Radio
1. Unplug the factory amplifier
2. Remove the OE fiber optic cable for
the amplifier harness
3. Insert the LD-FIBER-ADAPT into fiber optic
position of the OE amplifier (the orange fiber
optic cable is going to be the LD-FIBER-ADAPT
instead of AXEU-MOST25 cable)
4. Plug the amplifier
harness back into the OE
amplifier.
*(Green-Amp level control wire)
Tap wire to ground to Adjust the
overall volume level
Plastic Housing
AXEU-MOST25 Cable
AXEU-MOST25 Cable
Plastic Housing
Plastic Housing
Factory Fiber
Optic Connector
OE AMPLIFIER
AXEU-MOST25 Fiber
Optic Connector with
Plastic Housing
AXEU-MOST25 Fiber
Optic Connector
3
CONNECTIONS DONE AT AMPLIFIER LOCATION
