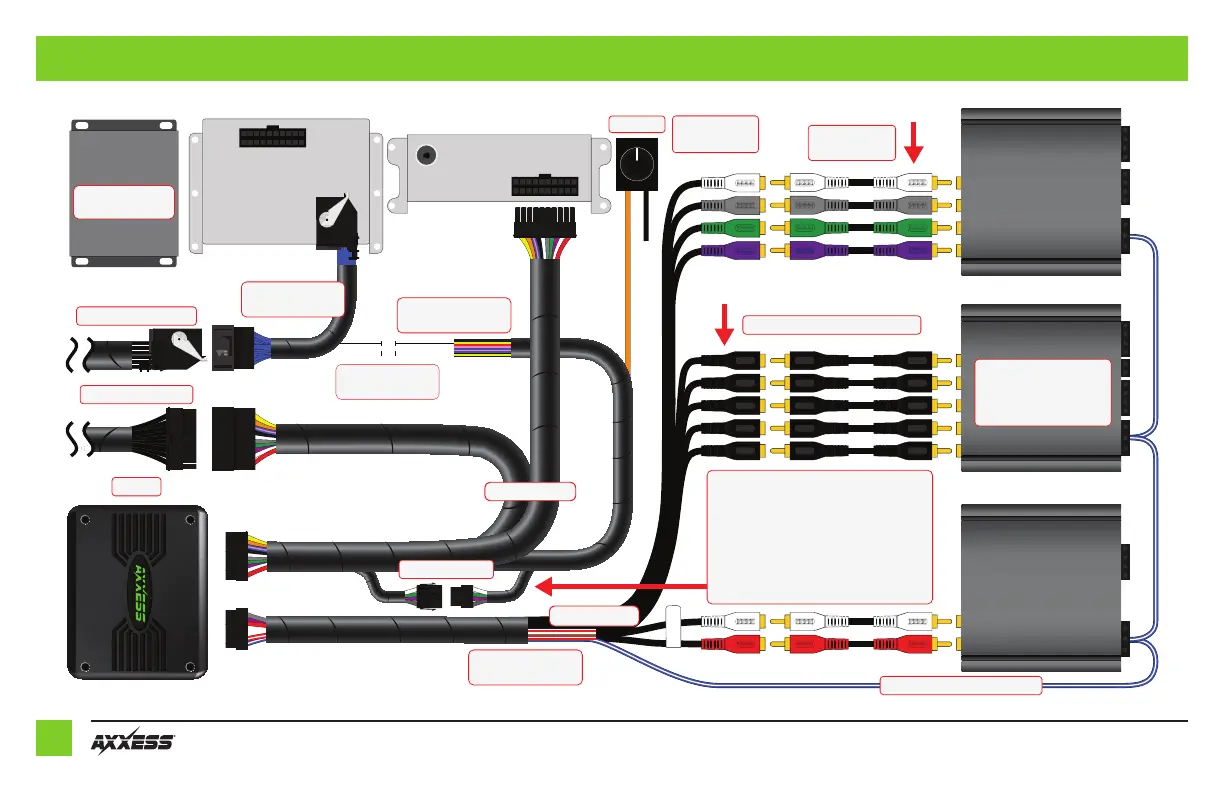

ADDING A FULL-RANGE AMP & SUBWOOFER TO A FACTORY SYSTEM
SUB
Factory Display Screen
Factory Amp
If equipped, bypass
and remove
Black - Ground
Orange - Control
Connect (2) Wires
* NAV models only *
Any remaining wires
tape off and disregard
Factory Display Harness
Factory Radio Harness
Interface
Bass Knob
RCA Jacks
(sold separately)
Assignable Outputs Labeled CH 6-10
Cut the male
connector off and
connect speaker
wires to amp
(non-amplified
models only)
White / Front Left +
White/Black / Front Left -
Gray / Front Right +
Gray/Black Front Right -
Green / Rear Left +
Green/Black / Rear Left -
Purple / Rear Right +
Purple/Black / Rear Right -
Any remaining wires
tape off and disregard
Unplug connector
Blue/White - Amp Turn-On Wire
Interface Harness
An SPDT relay, Metra part
number E-123, is required
if the amp turn-on current
of all amps exceeds 1-amp.
Vehicle T-Harness
Display T-Harness
* NAV models only *
Factory Radio Chassis
