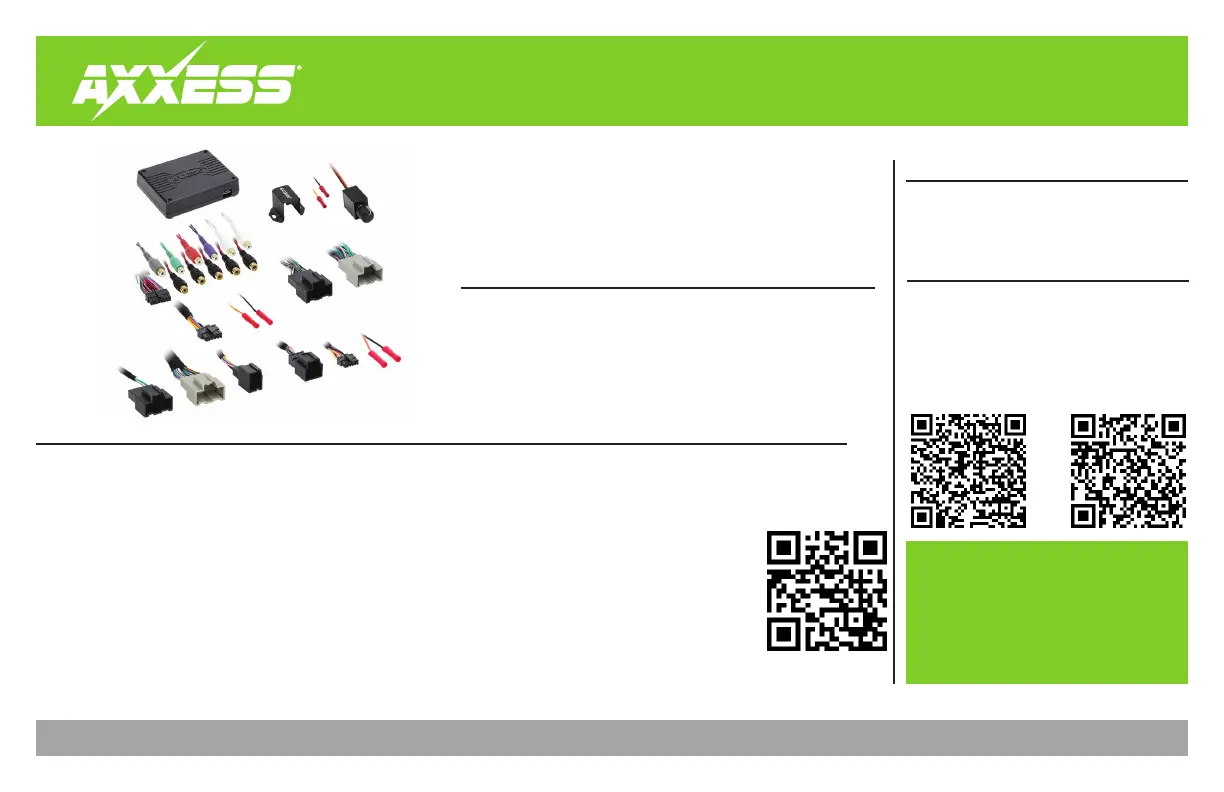

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights,

are plugged in before reconnecting the battery or

cycling the ignition to test this product.

NOTE: Refer also to the instructions included with

the aftermarket radio.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

LED Feedback .........................................................4

Lincoln Select Models 2018-Up A2B Data

Inter

face w/Amplifier Bypass Harness & DSP

• Designed for Revel A2B amplifiers

• A2B data interface w/AXDSP-X (digital signal processor) built-in

• Includes an amplifier bypass harness

• Retains factory chimes including parking sensor chimes

• Retains voice prompts

• Chimes and voice prompts go through the aftermarket amplifier

and/or cluster

• Selectable 31 Band graphic EQ or 5 Band Parametric EQ

• 10 individually assignable outputs

• AXDSPX-A2B3 interface

• AXDSPX-A2B3 harness

• LD-DSP-A2B-3

• LD-DSP-A2B-4

• AXDSPX-A2B3 interface harness

(male connectors: 12-pin, 16-pin)

• Amplifier bypass harness

(female connectors: 12-pin

black, 20-pin gray)

• AXBK-1

• A2B-EXT

For Dash Disassembly Instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide for Radio Install kits.

Visit

axxessinterfaces.com

for current application list.

•

Settings adjusted via Bluetooth® in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and bandpass filters

•

Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

•

Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

Google Play Store

Apple App Store

iOS 12.1 or higher

Metraonline.com
